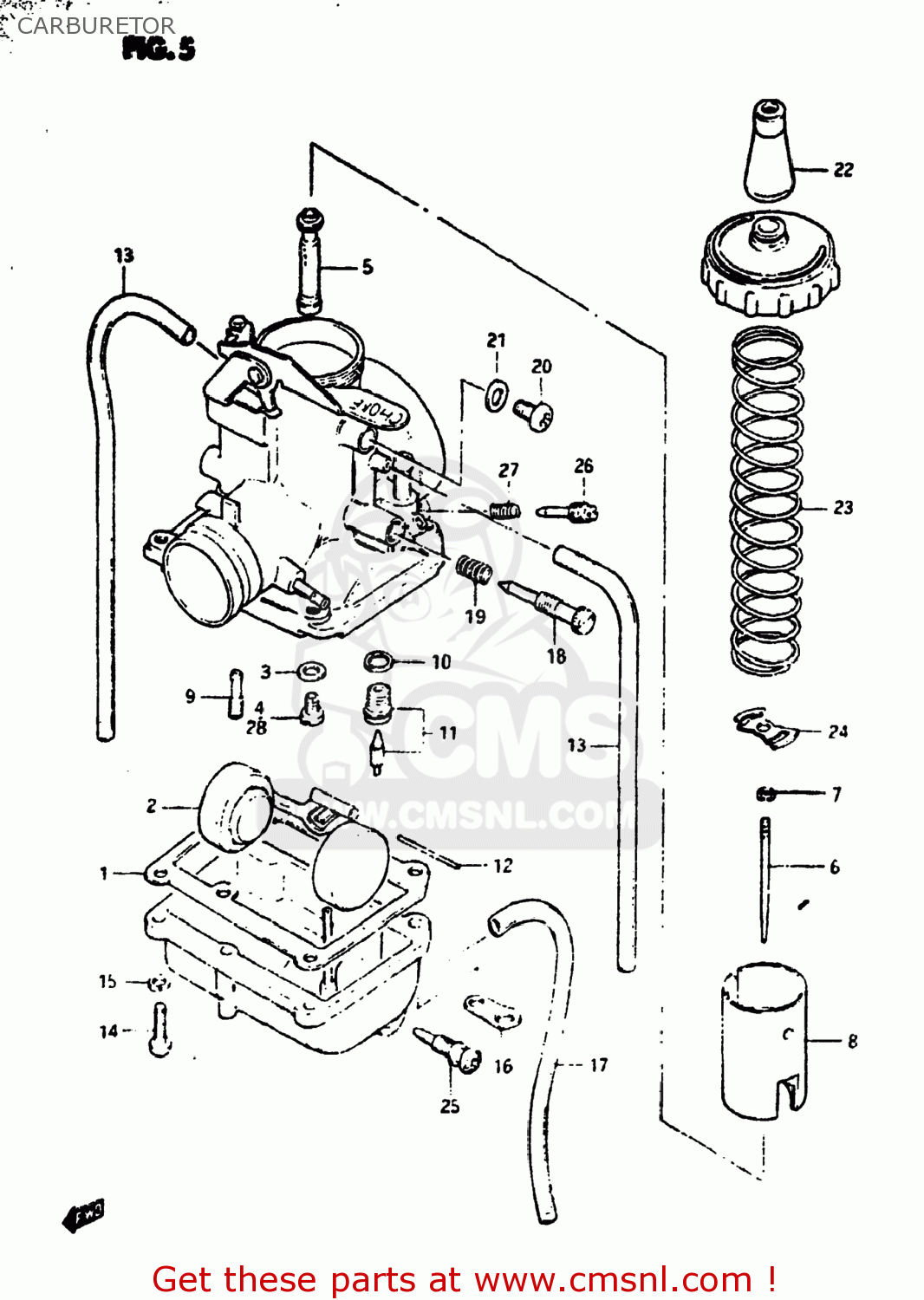

CARBURETOR

ref

part #

description

quantity

0

1320003400
ref: 0

CARBURETOR ASSY

€ 0.00

1

1325123010
ref: 1
13251-03410

GASKET,FLOAT CHAMBER (NAS)

€ 4.50

2

1325203400
ref: 2
13250-04700

FLOAT

€ 21.50

3

1333244080
ref: 3
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

4

0949187001
ref: 4
09491-87005

JET

€ 6.50

5

0949400398
ref: 5

JET,NEEDLE

€ 12.50

6

1338303400
ref: 6

NEEDLE,JET

€ 10.50

7

1339410010
ref: 7

CLIP

€ 4.50

8

1355103400
ref: 8

VALVE,THROTTLE

€ 0.00

9

0949225005
ref: 9

JET,PILOT(25)

€ 6.50

10

1339201010
ref: 10

GASKET,NEEDLE VALVE (NAS)

€ 2.50

11

1337023010
ref: 11

VALVE ASSY,NEEDLE

€ 34.00

12

1325401010
ref: 12

PIN,FLOAT

€ 3.00

13

1368339110
ref: 13
09352-30503-600

HOSE

€ 8.00

14

0211204168
ref: 14
02112-0416A

SCREW

€ 1.00

15

0832121048
ref: 15
08321-0104A

LOCK WASHER

€ 2.00

16

1369397010
ref: 16

PLATE

€ 0.00

17

1368430650
ref: 17
13684-40A00

HOSE

€ 7.50

18

1326795110
ref: 18

SCREW,THROTTLE STOP

€ 6.00

19

1327102330
ref: 19
13268-48700

SPRING

€ 3.50

20

0211205068
ref: 20
09125-05122

SCREW

€ 4.00

21

1352346110
ref: 21

GASKET,DRAIN PLUG (NAS)

€ 3.00

22

1368133010
ref: 22

CAP,CABLE ADJUSTER

€ 8.00

23

1357336110
ref: 23

SPRING,THROTTLE VALVE

€ 3.00

24

1358109210
ref: 24

STOPPER,NEEDLE CLIP

€ 5.50

25

1324702340
ref: 25

PLUG,DRAIN

€ 5.50

26

1326946010
ref: 26
13269-95110

SCREW,PILOT AIR

€ 8.50

27

1326801010
ref: 27

SPRING

€ 3.50

28-1

0949182002
ref: 28-1
09491-82003

JET

€ 8.50

28-2

0949185004
ref: 28-2
09491-85008

JET

€ 8.50

28-3

0949190003
ref: 28-3
09491-90007

JET

€ 10.50

28-4

0949192001
ref: 28-4
09491-92004

JET

€ 8.50

28-5

0949195003
ref: 28-5
09491-95005

JET

€ 8.50

all assemblies
