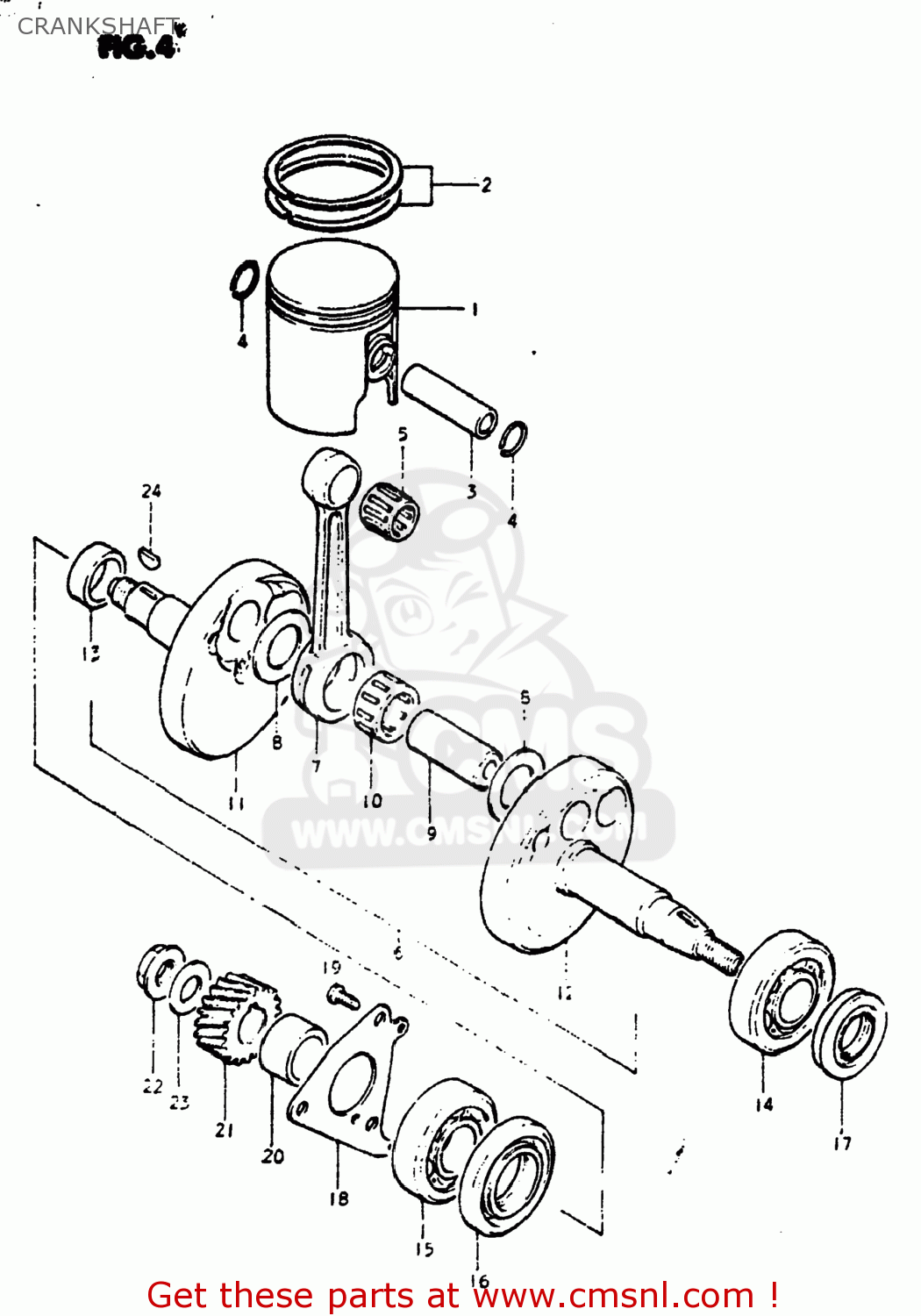

CRANKSHAFT

ref

part #

description

quantity

1-1

1211046410
ref: 1-1
12110-46411

PISTON (49.00MM)

€ 44.50

1-2

1211046410050
ref: 1-2
12100-46411-050

PISTON (49.50MM)

€ 69.00

1-3

1211046410100
ref: 1-3
12100-46411-100

PISTON (50.00MM)

€ 70.50

2-1

1214025631
ref: 2-1

PISTON RING SET STD

€ 37.00

2-2

1214025631050
ref: 2-2

RING SET,PISTON(OS:0.50)

€ 36.00

2-3

1214028630
ref: 2-3

RING SET,PISTON

€ 56.50

3

1215125000
ref: 3
12151-35400

PIN,PISTON

€ 9.00

4

0938112001
ref: 4

RING,SNAP

€ 2.00

5

0926312015
ref: 5
09263-12023

BEARING

€ 9.50

6

1220046410
ref: 6
12200-46412

CRANKSHAFT ASSEMBLY

€ 526.50

7

1216114001
ref: 7

ROD,CONNECTING

€ 46.00

8

0916017005
ref: 8
09160-17022

WASHER

€ 4.00

9

1221146000
ref: 9

PIN,CRANK

€ 17.50

10

0926317010
ref: 10
09263-17022

BEARING

€ 25.50

11

1222146000
ref: 11
12220-46810

CRANKSHAFT,RIGHT

€ 137.00

12

1226146410
ref: 12
12261-46411

CRANKSHAFT,LEFT

€ 52.00

13

0918020021
ref: 13

SPACER(20X26X9)

€ 7.00

14

0811362040
ref: 14
09262-20069

Bearing

€ 28.00

15

0926220045
ref: 15
09262-20064

BEARING

€ 23.00

16

0928326015
ref: 16

SEAL,OIL(26X47X7.3)

€ 7.00

17

0928320034
ref: 17

SEAL,OIL(19.6X37X8)

€ 6.00

18

1254146001
ref: 18

RETAINER,CRANKSHAFT BEARING,R

€ 5.50

19

0211206128
ref: 19
02112-06127

SCREW 6X12

€ 2.50

20

0918020059
ref: 20

SPACER(20X26X14)

€ 8.00

21

2111146000
ref: 21

GEAR,PRIMARY DRIVE NO.19

€ 34.00

22

0915912005
ref: 22

NUT

€ 4.00

23

0916412016
ref: 23

WASHER

€ 5.00

24

0834131039
ref: 24

KEY

€ 2.00
