RIGHT HANDLE SWITCH

DS80 1983 (D) USA (E03)

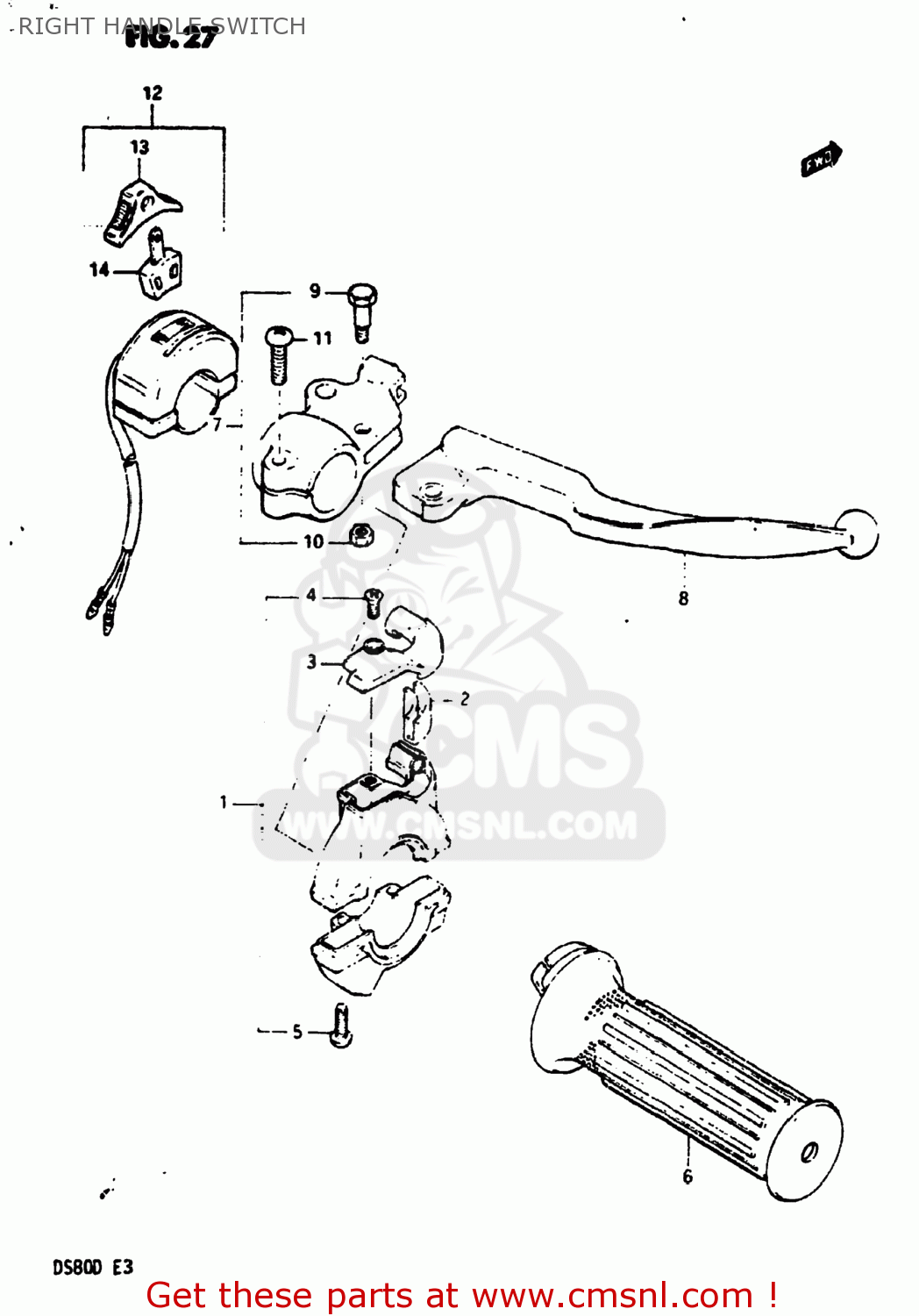

Right handle switch diagram DS80 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

5710013600
ref: 1
57100-13601

CASE ASSEMBLY,THROTTLE

€ 34.00

5712213600
ref: 2

GUIDE PIECE,THROTTLE

€ 7.50

5712913600
ref: 3
57129-13601

COVER,THROTTLE CASE

€ 7.00

0213204105
ref: 4
02122-0410A

SCREW 4X10

€ 2.50

0211205168
ref: 5
02112-05167

SCREW

€ 2.50

5711013600
ref: 6

GRIP,THROTTLE

€ 13.00

5730046420
ref: 7

LEVER ASSY,BRAKE

€ 38.00

5742046410
ref: 8
57420-46440

LEVER,BRAKE

€ 44.50

5743101011
ref: 9
57431-01012

BOLT,LEVER

€ 5.00

0831011058
ref: 10
08310-00057

NUT

€ 2.50

0211206208
ref: 11
02112-06207

SCREW

€ 2.00

3725037400
ref: 12

SWITCH ASSY,LIGHTING

€ 39.50

5761728602
ref: 13

KNOB,LIGHTING & DIMMER

€ 4.00

5768028602
ref: 14

BLOCK,LIGHTING/DIMMER

€ 8.00

RIGHT HANDLE SWITCH

all assemblies
