CLUTCH
DS80 1990 (L) USA (E03)

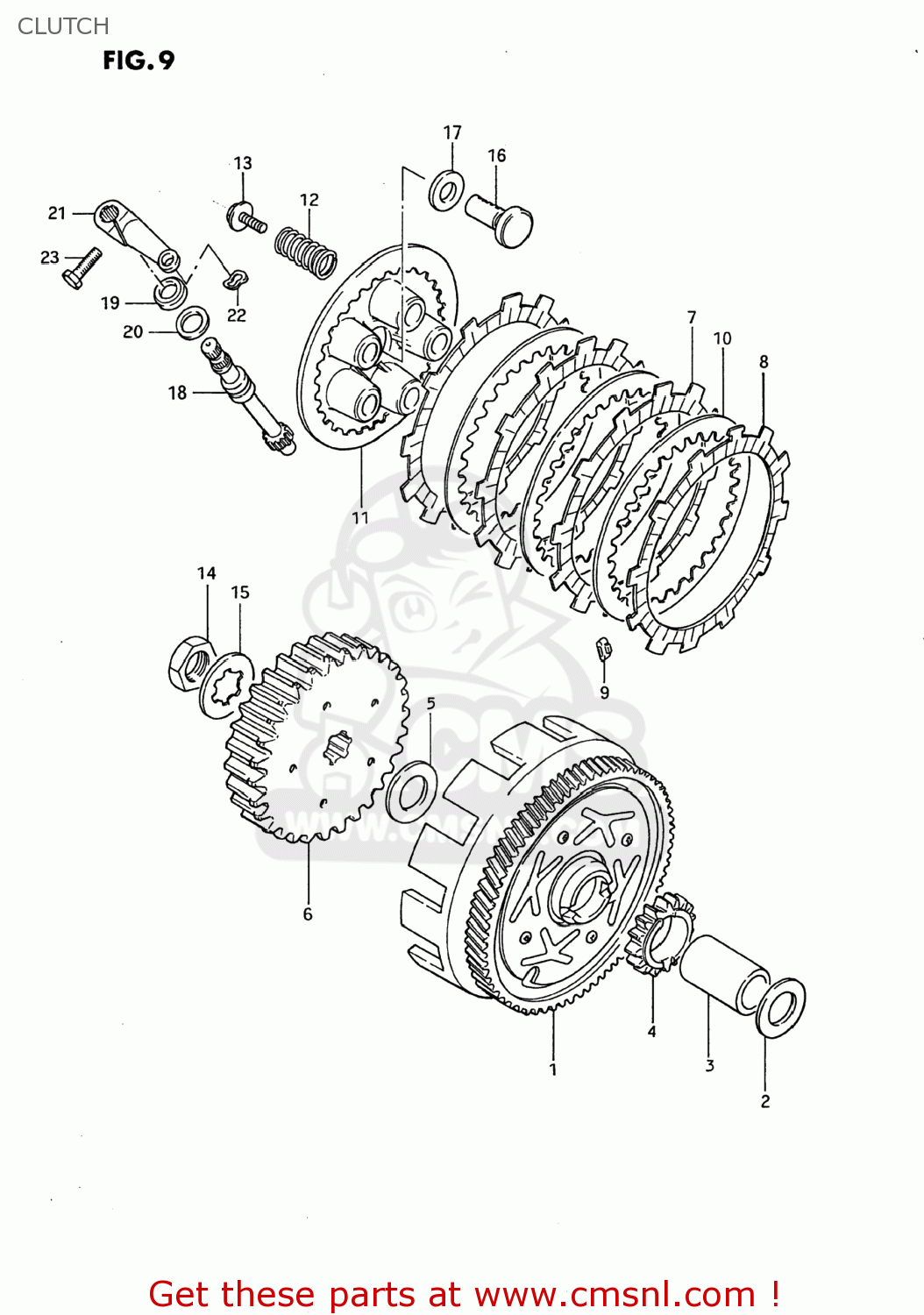

Clutch diagram DS80 1990 (L) USA (E03)
CLUTCH DS80 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120046010
ref: 1
GEAR ASSY,PRI DRIVEN(NT:73)
€ 154.00
2
0821117301
ref: 2
09181-17223
WASHER,THRUST
€ 3.00
3-1
0918017045
ref: 3-1
21251-21D10
SPACER
€ 12.50
3-2
2125121D10
ref: 3-2
SPACER,PRIMARY DRIVEN GEAR
€ 12.50
4
2628146000
ref: 4
26281-46001
GEAR,KICK STARTER DRIVE
€ 48.00
5
0821117282
ref: 5
WASHER
€ 3.00
6
2141146000
ref: 6
HUB,CLUTCH SLEEVE
€ 41.00
7-1
2144113A00
ref: 7-1
21441-13A01
PLATE,CLUTCH DRIVE (NAS)
€ 8.50
7-2
2144113A01
ref: 7-2
PLATE,CLUTCH DRIVE(T:3.0) (NAS)
€ 8.50
8-1
2144146000
ref: 8-1
21441-46010
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
8-2
2144146010
ref: 8-2
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
9
2148146000
ref: 9
DAMPER
€ 7.00
10-1
2145128000
ref: 10-1
21451-19A00
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
10-2
2145119A00
ref: 10-2
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
11-1
2146246000
ref: 11-1
21462-06C00
DISC,CLUTCH PRESSURE
€ 19.50
11-2
2146206C00
ref: 11-2
DISC,CLUTCH PRESSURE
€ 19.50
12
0944015008
ref: 12
SPRING
€ 2.00
13
0911605003
ref: 13
09116-05020
BOLT 5X16
€ 2.50
14
0914016014
ref: 14
09140-16005
NUT
€ 4.50
15
0916717002
ref: 15
WASHER,LOCK
€ 2.00
16-1
2316528301
ref: 16-1
23165-46000
RACK,CLUTCH RELEASE
€ 20.00
16-2
2316546000
ref: 16-2
RACK,CLUTCH RELEASE
€ 20.00
17
0926310002
ref: 17
BEARING(10X22X2.8)
€ 8.50
18
2326141301
ref: 18
PINION,CLUTCH RELEASE
€ 27.50
19
0928510004
ref: 19
SEAL,OIL(10X17X5)
€ 3.50
20-1
0916012035
ref: 20-1
09160-12086
WASHER (12X17X1)
€ 2.00
20-2
0916012501
ref: 20-2
09160-12086
WASHER
€ 2.00
21-1
2327146000
ref: 21-1
23271-46010
ARM,CLUTCH RELEASE
€ 14.50
21-2
2327146010
ref: 21-2
ARM,CLUTCH RELEASE
€ 14.50
22
0916406011
ref: 22
WASHER
€ 4.00
23-1
0110706167
ref: 23-1
01500-06167
BOLT
€ 3.00
23-2
0150006163
ref: 23-2
01500-0616A
BOLT
€ 2.00
