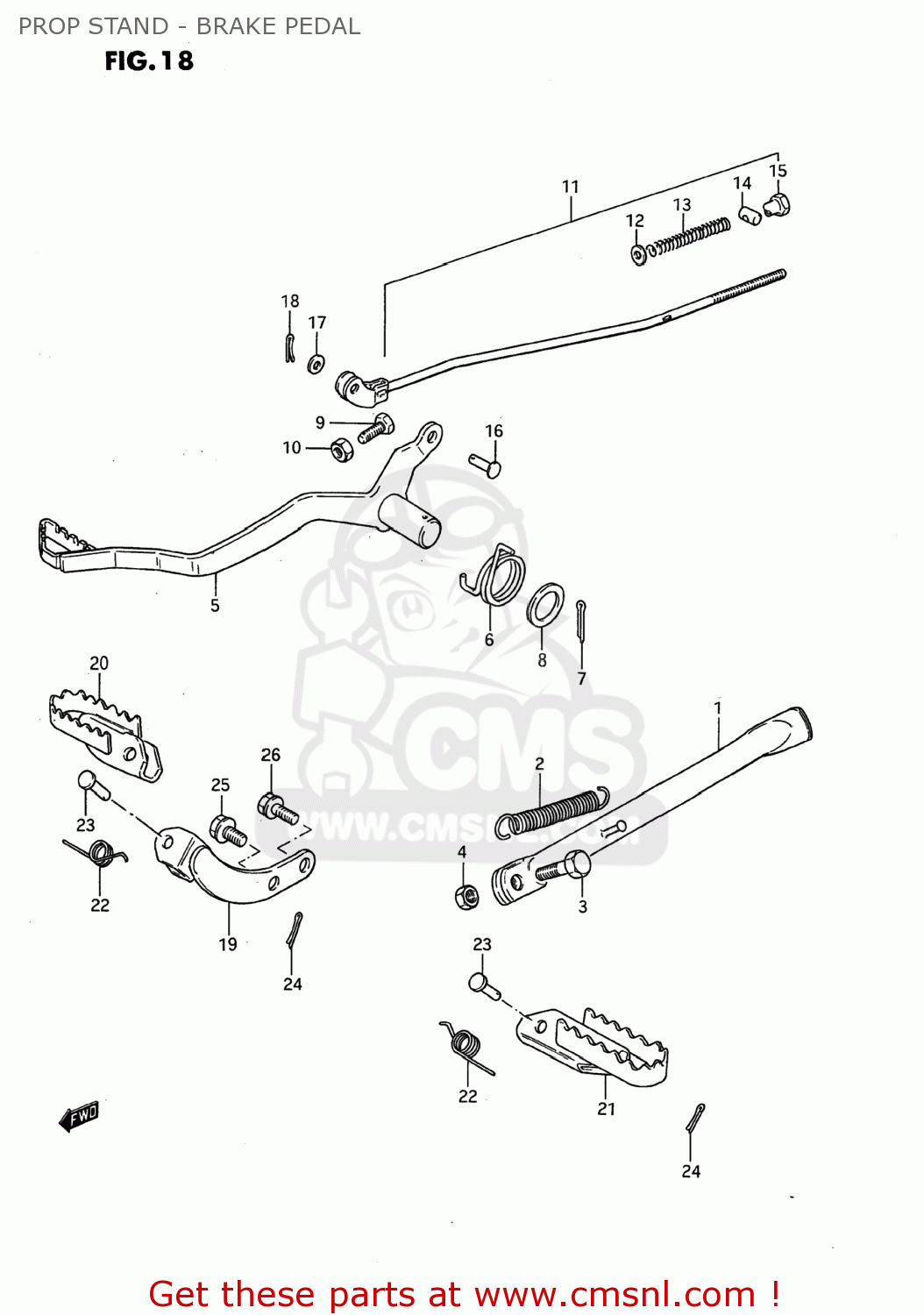

PROP STAND - BRAKE PEDAL - DS80 1990 (L) USA (E03)

ref

part #

description

quantity

1-1

423100340019F
ref: 1-1
42310-03400-019

STAND,SIDE

€ 27.50

1-2

4231003400019
ref: 1-2

STAND,SIDE

€ 27.50

2

0944314017
ref: 2

SPRING

€ 6.50

3

0910010007
ref: 3
09100-10287

BOLT

€ 4.50

4-1

0831000107
ref: 4-1

NUT

€ 2.50

4-2

0915910097
ref: 4-2

NUT

€ 5.00

4-3

0914010043
ref: 4-3

NUT

€ 2.00

5

4311003401
ref: 5

PEDAL,BRAKE

€ 29.50

6

0944825007
ref: 6
09448-25007-XC0

SPRING

€ 6.00

7

0411130308
ref: 7
04111-3030A

COTTER PIN

€ 1.50

8

0916015002
ref: 8

WASHER(15.5X26X2.3)

€ 2.00

9

0910006009
ref: 9

BOLT(6X23)

€ 1.50

10-1

0831000067
ref: 10-1

NUT

€ 2.50

10-2

0831000063
ref: 10-2
08310-0006A

NUT 6MM

€ 2.00

11

4330003400
ref: 11

ROD ASSY,RR BRAKE

€ 20.50

12-1

0832201067
ref: 12-1

WASHER

€ 2.00

12-2

0832201063
ref: 12-2
08322-0106B

WASHER

€ 2.00

13

0944009004
ref: 13

SPRING

€ 2.00

14

0920911002
ref: 14

PIN(11X18)

€ 2.00

15

0915006009
ref: 15
09150-06010

NUT (6MM)

€ 3.50

16

0920006013
ref: 16

PIN(L:13.5)

€ 2.00

17-1

0832221067
ref: 17-1
08322-01067

WASHER

€ 2.00

17-2

0832201063
ref: 17-2
08322-0106B

WASHER

€ 2.00

18

0411120208
ref: 18
04111-2020A

PIN 20X20

€ 1.50

19-1

435100340119F
ref: 19-1

BAR,FRONT FOOTREST

€ 7.00

19-2

4351003401019
ref: 19-2

BAR,FRONT FOOTREST

€ 7.00

20-1

435504600019F
ref: 20-1
43550-46000-019

FOOTREST,FRONT,RIGHT

€ 9.00

20-2

4355046000019
ref: 20-2

FOOTREST,FR,R

€ 9.00

21-1

435604600019F
ref: 21-1
43560-46000-019

FOOTREST,FRONT,LEFT

€ 9.00

21-2

4356046000019
ref: 21-2

FOOTREST,FR,L

€ 9.00

22

0944814012
ref: 22

SPRING

€ 3.00

23

0920008002
ref: 23

PIN

€ 2.00

24

0411120208
ref: 24
04111-2020A

PIN 20X20

€ 1.50

25-1

0151710255
ref: 25-1
01550-1025A

BOLT

€ 3.00

25-2

0155010253
ref: 25-2
01550-1025A

BOLT

€ 3.00

26

0910308102
ref: 26
09103-08505

BOLT

€ 4.00
