REAR SWINGING ARM
DS80 1990 (L) USA (E03)

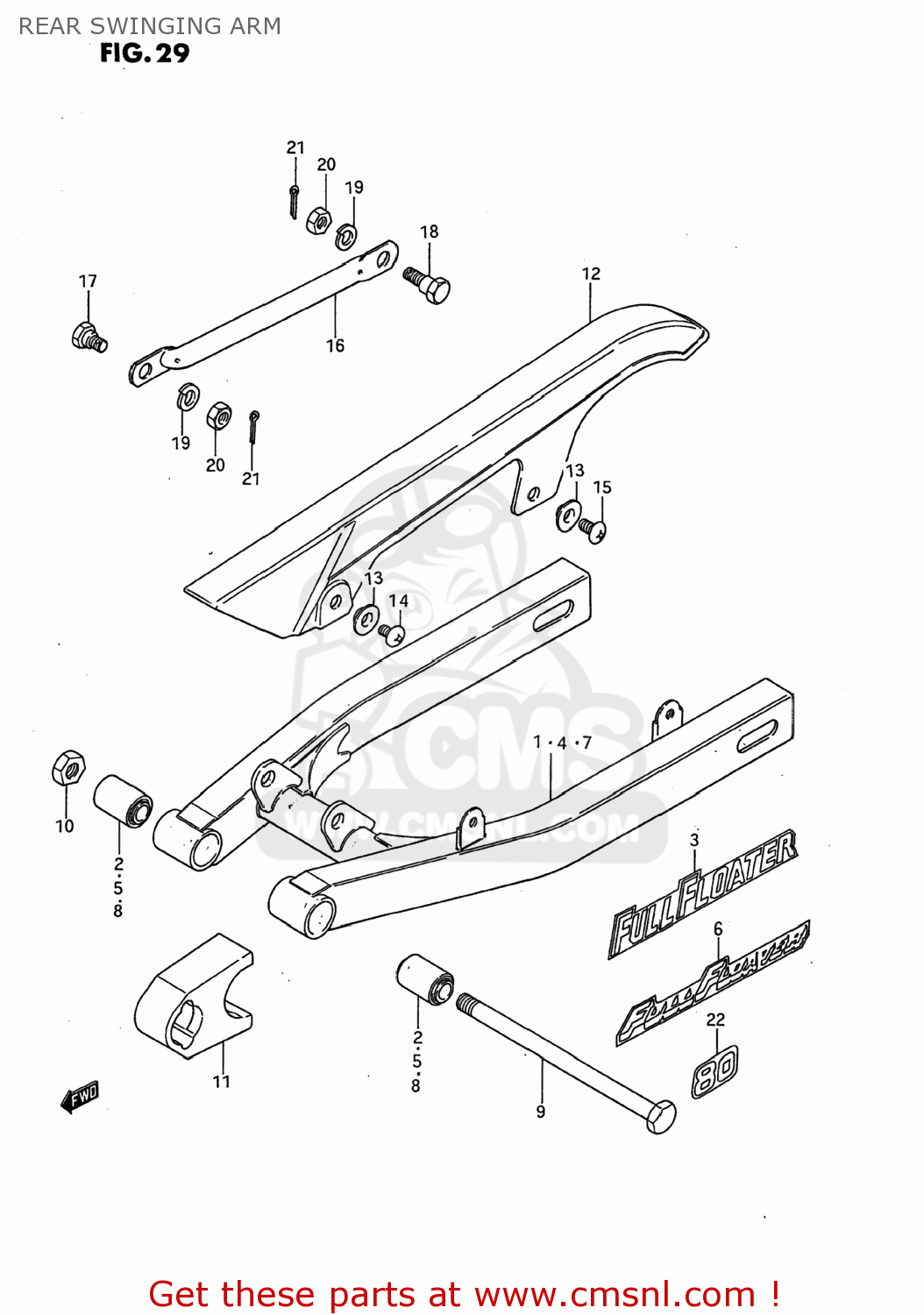

Rear swinging arm diagram DS80 1990 (L) USA (E03)
REAR SWINGING ARM DS80 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
610000341008C
ref: 1
61000-03430-13L
SWING ARM ASSEMBLY,REAR
€ 135.50
2
0931910024
ref: 2
BUSH
€ 8.50
3
683812092097J
ref: 3
EMBLEM
€ 0.00
4
610000342013L
ref: 4
61000-03430-13L
SWING ARM ASSEMBLY,REAR
€ 135.50
4
610000342013L
ref: 4
61000-03430-13L
SWING ARM ASSEMBLY,REAR
€ 135.50
5
0931910024
ref: 5
BUSH
€ 8.50
6
683810341097J
ref: 6
EMBLEM,SWING ARM
€ 7.00
7
610000343013L
ref: 7
SWINGINGARM ASSY,RR
€ 135.50
7
610000343013L
ref: 7
SWINGINGARM ASSY,RR
€ 135.50
8
0931910024
ref: 8
BUSH
€ 8.50
9
6121103401
ref: 9
SHAFT,RR SWINGINGARM PIVOT
€ 5.50
10
0831931107
ref: 10
NUT
€ 3.00
11
6127303400
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
€ 34.00
12
6131103410019
ref: 12
61311-03410-291
CASE,CHAIN
€ 33.00
13
0916906026
ref: 13
WASHER
€ 2.00
14-1
0211206084
ref: 14-1
02112-0608A
SCREW
€ 1.50
14-2
0211206083
ref: 14-2
02112-0608A
SCREW
€ 1.50
14-3
0211206103
ref: 14-3
02112-0610B
SCREW
€ 1.50
15-1
0211206104
ref: 15-1
02112-0610B
SCREW
€ 1.50
15-2
0211206103
ref: 15-2
02112-0610B
SCREW
€ 1.50
16-1
643110340008C
ref: 16-1
64311-03400-13L
TORQUE LINK,REAR
€ 13.50
16-2
643110340013L
ref: 16-2
TORQUELINK,RR
€ 13.50
17
0911108015
ref: 17
BOLT(8X22)
€ 3.00
18
0911108013
ref: 18
BOLT(8X26.5)
€ 3.00
19-1
0832121088
ref: 19-1
08321-01087
LOCK WASHER
€ 2.00
19-2
0832101083
ref: 19-2
08321-0108A
LOCK WASHER
€ 2.50
20
0914008008
ref: 20
NUT
€ 1.50
21
0411120208
ref: 21
04111-2020A
PIN 20X20
€ 1.50
22
683810342017U
ref: 22
68381-03B00-12R
EMBLEM,SWING ARM
€ 8.50
