PROP STAND - BRAKE PEDAL
DS80 2000 (Y) USA (E03)

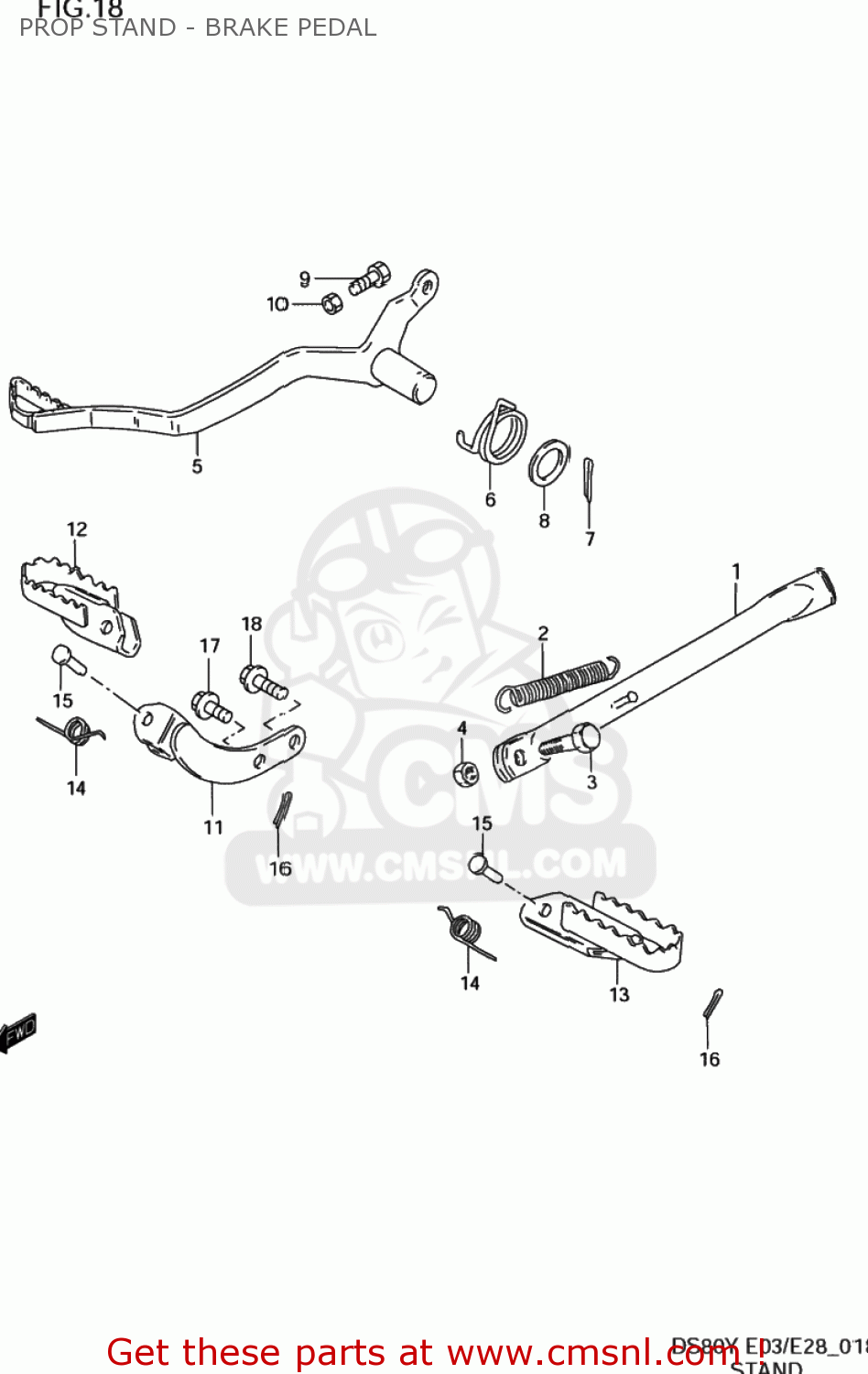

Prop stand - brake pedal diagram DS80 2000 (Y) USA (E03)
PROP STAND - BRAKE PEDAL DS80 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231003400019
ref: 1
STAND,SIDE
€ 27.50
2
0944314017
ref: 2
SPRING
€ 6.50
3
0910010287
ref: 3
BOLT(10X27)
€ 4.50
4
0914010043
ref: 4
NUT
€ 2.00
5
4311003401
ref: 5
PEDAL,BRAKE
€ 29.50
6
0944825007
ref: 6
09448-25007-XC0
SPRING
€ 6.00
7
0411130308
ref: 7
04111-3030A
COTTER PIN
€ 1.50
8
0916015002
ref: 8
WASHER(15.5X26X2.3)
€ 2.00
9
0910006009
ref: 9
BOLT(6X23)
€ 1.50
10
0831000063
ref: 10
08310-0006A
NUT 6MM
€ 2.00
11
4351003401019
ref: 11
BAR,FRONT FOOTREST
€ 7.00
12
4355046000019
ref: 12
FOOTREST,FR,R
€ 9.00
13
4356046000019
ref: 13
FOOTREST,FR,L
€ 9.00
14
0944814012
ref: 14
SPRING
€ 3.00
15
0920008002
ref: 15
PIN
€ 2.00
16
0411120158
ref: 16
04111-2015A
PIN
€ 1.50
17
0155010253
ref: 17
01550-1025A
BOLT
€ 3.00
18
0910308505
ref: 18
BOLT(8X20)
€ 4.00
