TAIL LAMP
DS80 2000 (Y) USA (E03)

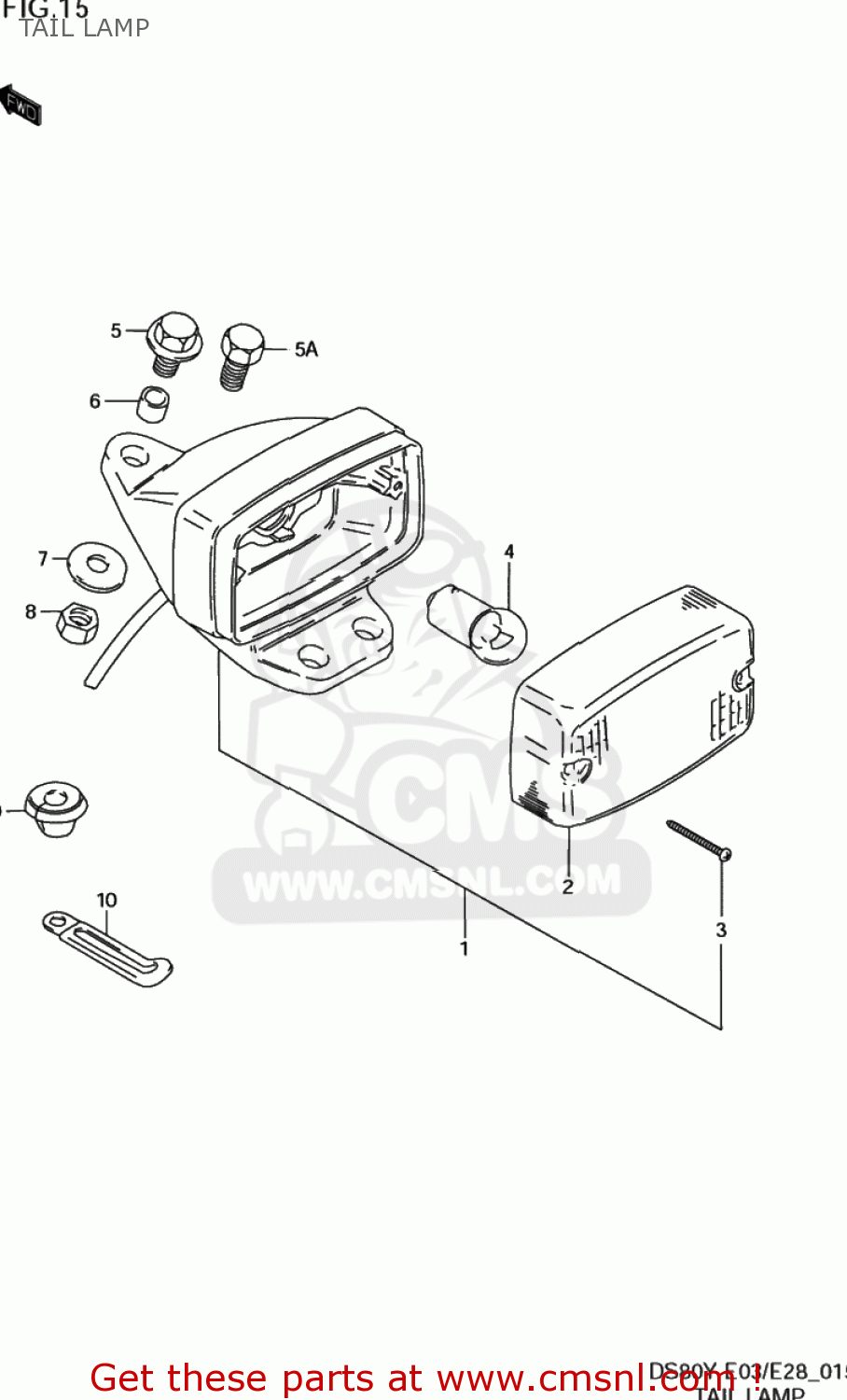

Tail lamp diagram DS80 2000 (Y) USA (E03)
TAIL LAMP DS80 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571003431
ref: 1
LAMP ASSY,TAIL
€ 70.00
2
3571230410
ref: 2
LENS
€ 15.50
3
3562335300
ref: 3
SCREW
€ 2.00
4
0947106049
ref: 4
BULB(6V5W,TOKAI DENSO)
€ 3.50
5A
0150006203
ref: 5A
01500-0620A
BOLT
€ 2.00
5-1
0911606143
ref: 5-1
09116-06115
BOLT 6X20
€ 2.00
5-2
0911606143
ref: 5-2
09116-06115
BOLT 6X20
€ 2.00
6-1
0918006011
ref: 6-1
09180-06263
SPACER (6.1X9X9)
€ 2.00
6-2
0918006263
ref: 6-2
SPACER(6.5X9X9)
€ 2.00
7
0916006077
ref: 7
WASHER(6.5X20X1.2)
€ 2.00
8
0831000063
ref: 8
08310-0006A
NUT 6MM
€ 2.00
9
0930807004
ref: 9
GROMMET
€ 2.50
10
0940406432
ref: 10
CLAMP(L:65)
€ 2.50
