WIRING HARNESS
DS80 2000 (Y) USA (E03)

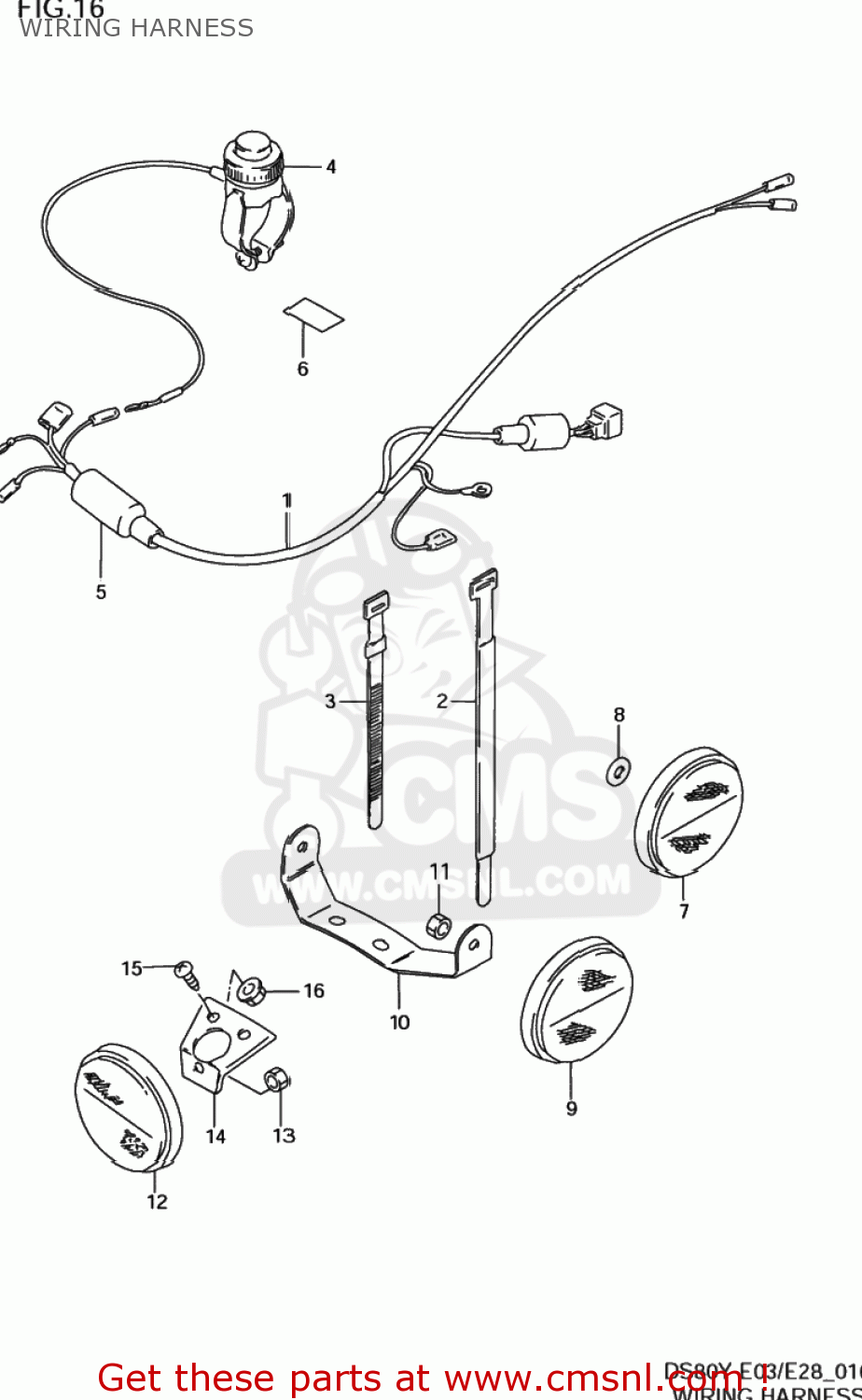

Wiring harness diagram DS80 2000 (Y) USA (E03)
WIRING HARNESS DS80 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661003411
ref: 1
HARNESS,WIRING
€ 0.00
2-1
0940711401
ref: 2-1
CLAMP(L:95)
€ 2.50
2-2
0940718403
ref: 2-2
09407-18402
CLAMP L:165
€ 2.50
3
0940712402
ref: 3
CLAMP(L:120)
€ 3.00
4
3782014X50
ref: 4
SWITCH ASSY,ENGINE STOP
€ 24.50
5
3661844200
ref: 5
COVER,WIRE
€ 4.00
6-1
3723846400
ref: 6-1
37238-46401
LABEL (ENGINE STOP)
€ 0.00
6-2
3723846401
ref: 6-2
LABEL,ENGINE STEP SWITCH
€ 0.00
6-3
3723846410
ref: 6-3
LABEL (ENGINE STOP)
€ 0.00
6-4
3723846411
ref: 6-4
LABEL,ENGINE STEP SWITCH
€ 0.00
7
3595030910
ref: 7
REFLEX REFLECTOR,FR
€ 43.50
8
0832201053
ref: 8
08322-0105A
WASHER
€ 2.50
9
3597030910
ref: 9
REFLEX REFLECTOR,RR
€ 47.50
10
3597603430
ref: 10
BRACKET,RR SIDE RR
€ 0.00
11
0831620053
ref: 11
08316-2005A
NUT
€ 2.00
12
3597030910
ref: 12
REFLEX REFLECTOR,RR
€ 47.50
13
0831620053
ref: 13
08316-2005A
NUT
€ 2.00
14
3597403430
ref: 14
BRACKET, REAR REFLECTOR
€ 0.00
15
0214205103
ref: 15
02142-0510B
SCREW
€ 2.50
16
0831620053
ref: 16
08316-2005A
NUT
€ 2.00
