CAM CHAIN
GN125E 1982 (Z) SINGAPORE (E30)

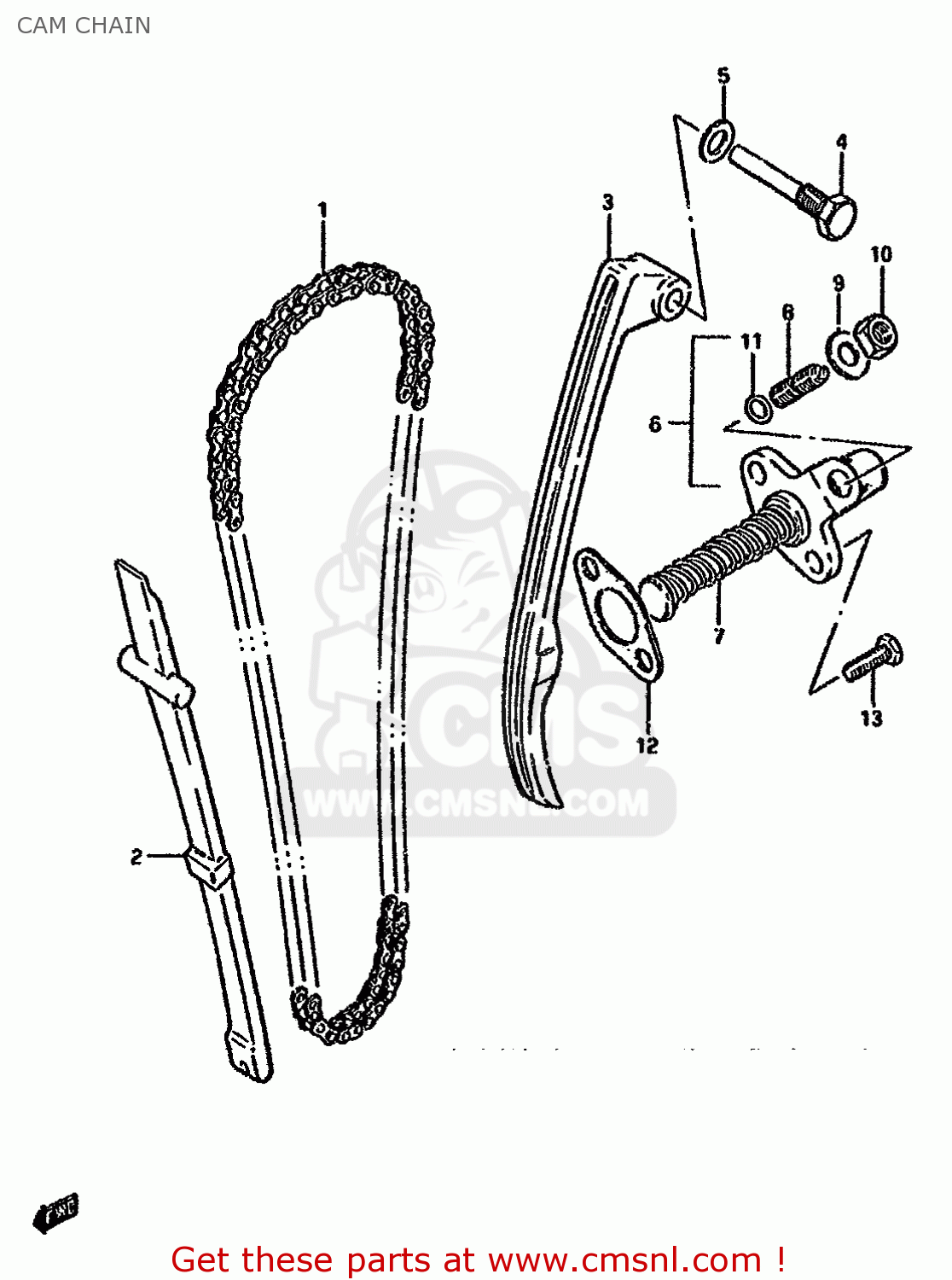

Cam chain diagram GN125E 1982 (Z) SINGAPORE (E30)
CAM CHAIN GN125E 1982 (Z) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
1276044A00
ref: 1
98LE
CHAIN,CAMSHAFT DRIVE
€ 54.00
2
1277105200
ref: 2
GUIDE,CAM CHAIN
€ 20.50
3
1281105220
ref: 3
TENSIONER,CAM CHAIN
€ 24.50
4
1281232400
ref: 4
BOLT,CAM CHAIN TENSIONER
€ 3.50
5
0916808008
ref: 5
GASKET 8.2X14X1 (NAS)
€ 1.00
6
1283032452
ref: 6
-12830-32451
ADJUSTER ASSY,TENSIONER
€ 48.00
7
0944011018
ref: 7
SPRING
€ 2.00
8
1283845001
ref: 8
SCREW
€ 6.00
9-1
0832211088
ref: 9-1
MODEL Z/D/K/M/N
WASHER
€ 2.00
9-2
0832201083
ref: 9-2
MODEL R
WASHER
€ 1.50
10-1
0831012088
ref: 10-1
MODEL Z/D/K/M/N
NUT
€ 2.00
10-2
0831610083
ref: 10-2
MODEL R
NUT
€ 3.00
11
0928006005
ref: 11
O RING(D:1.9,ID:5.7)
€ 2.50
12
1283732410
ref: 12
-12837-32400
GASKET,TENSIONER ADJUSTER (NAS)
€ 2.50
13-1
0150006207
ref: 13-1
MODEL Z/D/K/M/N
BOLT
€ 2.00
13-2
0150006203
ref: 13-2
MODEL R
BOLT
€ 2.00
