HEADLAMP (E4 F.NO.140198~)
GN125E 1982 (Z) SINGAPORE (E30)

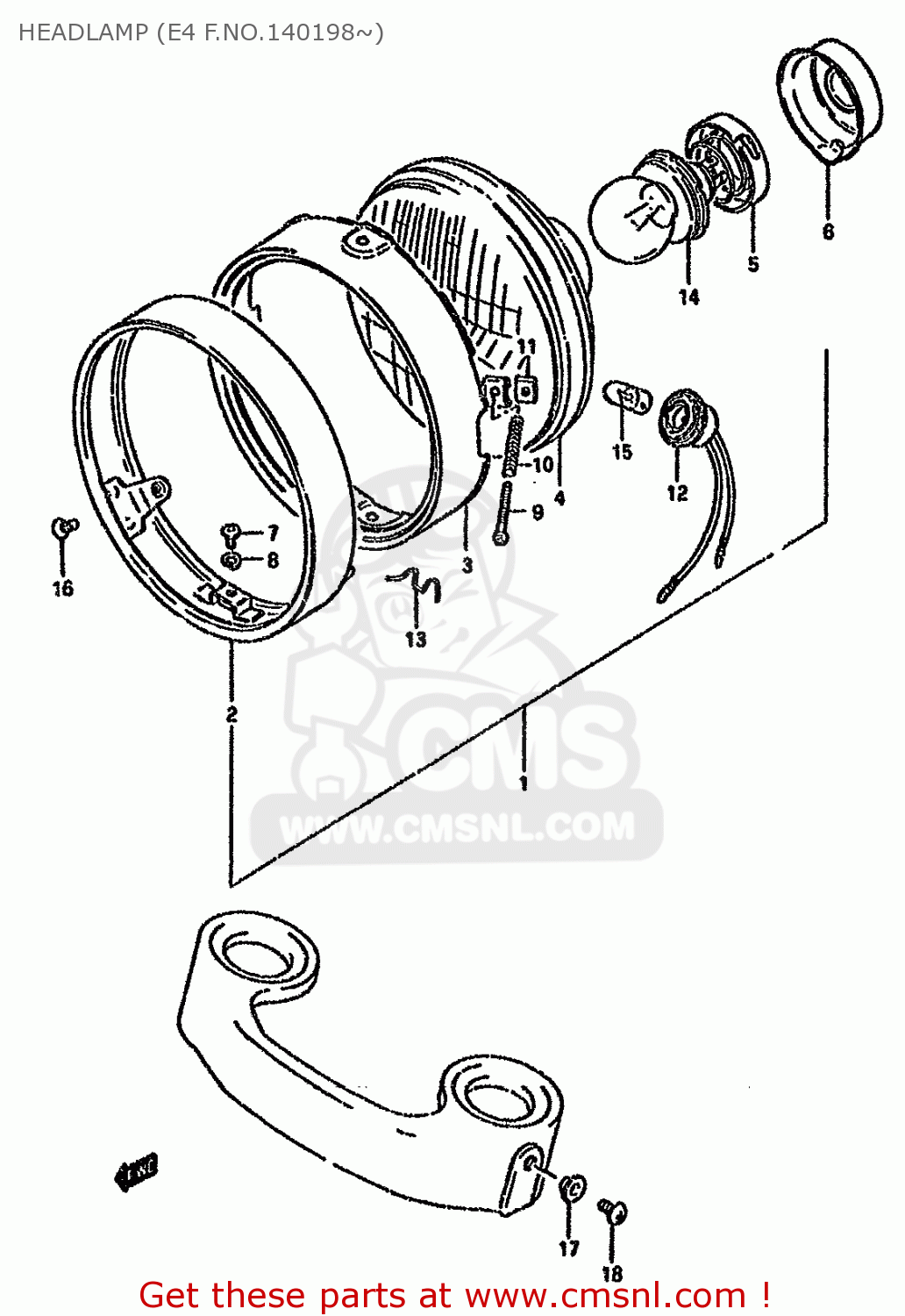

Headlamp (e4 f.no.140198~) diagram GN125E 1982 (Z) SINGAPORE (E30)
HEADLAMP (E4 F.NO.140198~) GN125E 1982 (Z) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
3510044260999
ref: 1
HEADLAMP ASSY
€ 138.50
2
3511144250
ref: 2
RIM
€ 34.50
3
3512729610
ref: 3
RETAINER
€ 15.50
4
3512144260
ref: 4
LAMP UNIT
€ 67.00
5
3513634670
ref: 5
SETTER,BULB
€ 4.00
6
3517972600
ref: 6
COVER,HEADLAMP BULB
€ 4.00
7
3513629610
ref: 7
SCREW
€ 3.00
8
0832121057
ref: 8
LOCK WASHER
€ 2.00
9
3515131610
ref: 9
SCREW
€ 4.00
10
3515433630
ref: 10
SPRING
€ 2.50
11
3515215611
ref: 11
NUT
€ 3.50
12
3611830500
ref: 12
SOCKET
€ 10.00
13
3512846720
ref: 13
SPRING
€ 4.50
14
0947112048
ref: 14
EXECUTED LOCALLY
BULB(12V45/40W)
€ 7.50
15
0947112063
ref: 15
EXECUTED LOCALLY
BULB(12V4W)
€ 6.00
16
0912705013
ref: 16
SCREW(5X12)
€ 2.50
17
0916905008
ref: 17
WASHER
€ 3.00
18
0214205087
ref: 18
SCREW
€ 2.00
