ELECTRICAL (MODEL N/R)
GN125E 1994 (R) SINGAPORE (E30)

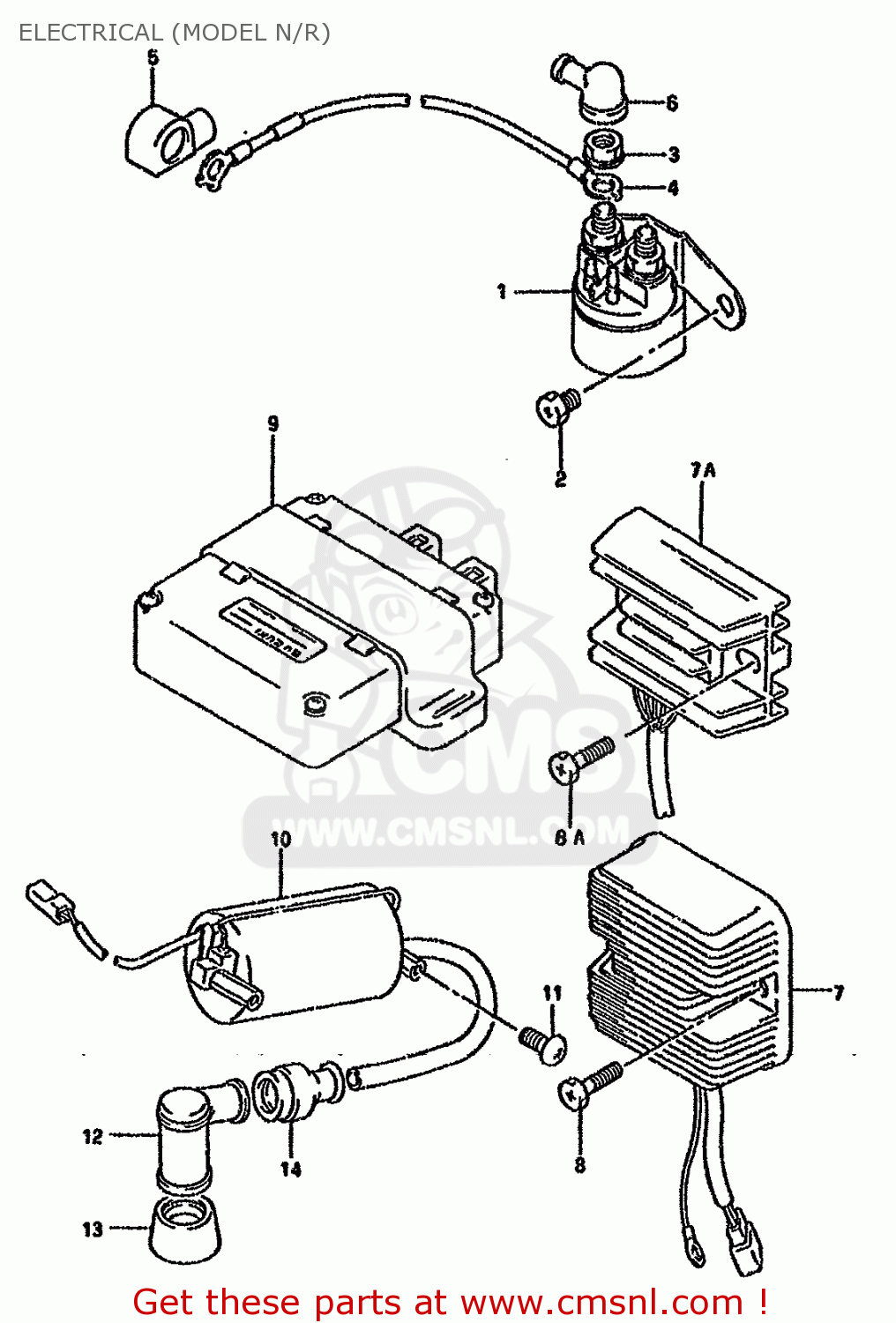

Electrical (model n/r) diagram GN125E 1994 (R) SINGAPORE (E30)
ELECTRICAL (MODEL N/R) GN125E 1994 (R) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2
0912806004
ref: 2
SCREW(6X10)
€ 1.50
3
0836135066
ref: 3
NUT
€ 2.00
4
3381005300
ref: 4
WIRE,STARTER MOTOR
€ 18.50
5
3186106C00
ref: 5
CAP,STARTER MOTOR TERMINAL
€ 3.00
6-1
3186131500
ref: 6-1
CAP,TERMINAL
€ 3.00
6-2
3186110D00
ref: 6-2
E22
CAP,STARTER RELAY
€ 4.00
7
3280005320
ref: 7
MODEL N:E30
RECTIFIER ASSY
€ 188.00
7A
3280029B00
ref: 7A
MODEL R
RECTIFIER ASSY
€ 266.50
8
0912806011
ref: 8
MODEL N
SCREW(6X12)
€ 3.00
8A
0912806006
ref: 8A
MODEL R
BOLT(6X20)
€ 2.00
9
3290005300
ref: 9
IGNITOR UNIT
€ 435.00
10-1
3341005302
ref: 10-1
MODEL N
COIL ASSY,IGNITION
€ 94.50
10-2
3341005350
ref: 10-2
MODEL R
COIL ASSY,IGNITION
€ 128.00
11
0214205103
ref: 11
SCREW
€ 2.50
12
3351022010
ref: 12
CAP ASSY,SPARK PLUG
€ 16.50
13
3354124510
ref: 13
SEAL,SPARK PLUG CAP
€ 7.00
14
3354238B00
ref: 14
SEAL,HIGH TENSION CORD
€ 4.50
14
3351022010
ref: 14
CAP ASSY,SPARK PLUG
€ 16.50
15
3354124510
ref: 15
SEAL,SPARK PLUG CAP
€ 7.00
16
3354238B00
ref: 16
SEAL,HIGH TENSION CORD
€ 4.50
