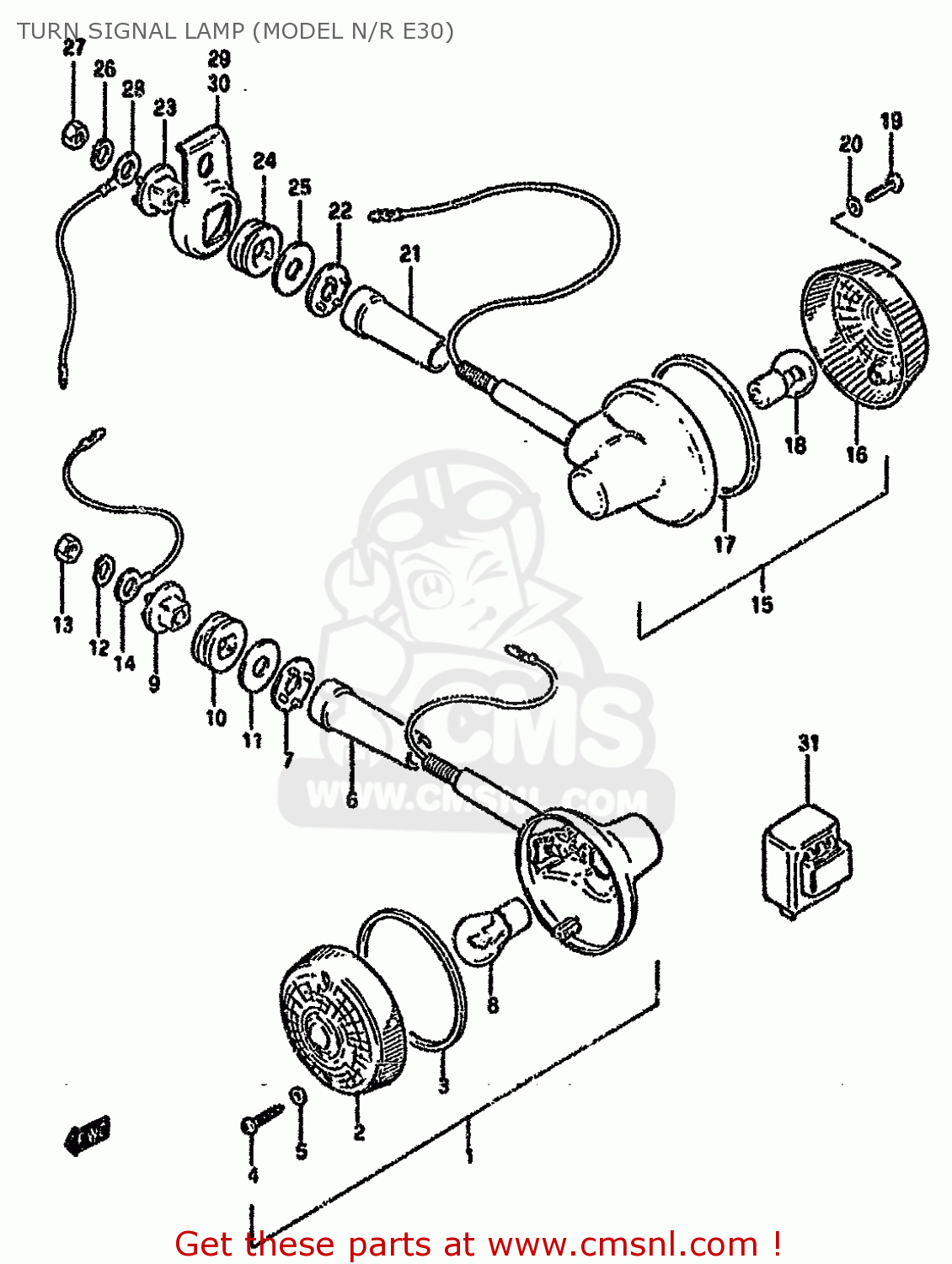

TURN SIGNAL LAMP (MODEL N/R E30)

ref

part #

description

quantity

1

3560347230999
ref: 1

LAMP ASSY,TURNSIGNAL

€ 122.50

2

3561228620
ref: 2

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0321104207
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3561747230
ref: 6

COVER,STAY

€ 10.00

7

3566547210
ref: 7

SPACER

€ 3.00

8

0947112006
ref: 8

BULB(12V23W,STANLEY,A4577A)

€ 4.00

9

3569532401
ref: 9

SPACER

€ 4.50

10

3569032200
ref: 10

CUSHION

€ 38.50

11

0916010006
ref: 11

WASHER (10.5X30X2.3)

€ 2.50

12

0832121107
ref: 12

WASHER,LOCK,10

€ 2.00

13

0831012108
ref: 13

NUT

€ 2.50

14

3666033000
ref: 14

LEAD WIRE,EARTH

€ 5.00

15

3560345230
ref: 15

LAMP ASSY,RR TURNSIGNAL

€ 110.00

16

3561228620
ref: 16

LENS

€ 10.50

17

3561328620
ref: 17

GASKET (NAS)

€ 7.00

18

0947112006
ref: 18

BULB(12V23W,STANLEY,A4577A)

€ 4.00

19

0321104207
ref: 19

SCREW

€ 1.50

20

3562743010
ref: 20

GASKET (NAS)

€ 2.00

21

3565745230
ref: 21

COVER

€ 7.50

22

3566547210
ref: 22

SPACER

€ 3.00

23

3569532401
ref: 23

SPACER

€ 4.50

24

0932015004
ref: 24

CUSHION

€ 5.00

25

0916010006
ref: 25

WASHER (10.5X30X2.3)

€ 2.50

26

0832121107
ref: 26

WASHER,LOCK,10

€ 2.00

27

0831012108
ref: 27

NUT

€ 2.50

28

3686244000
ref: 28

LEAD WIRE,EARTH

€ 4.00

29

3562138300
ref: 29

BRACKET,RR TURNSIGNAL LAMP,R

€ 7.00

30

3564138300
ref: 30

BRACKET,RR TURNSIGNAL LAMP,L

€ 7.00

31

3861031310
ref: 31

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

all assemblies
