FUEL TANK (MODEL D/K/M/N/R)

GN125E 1994 (R) SINGAPORE (E30)

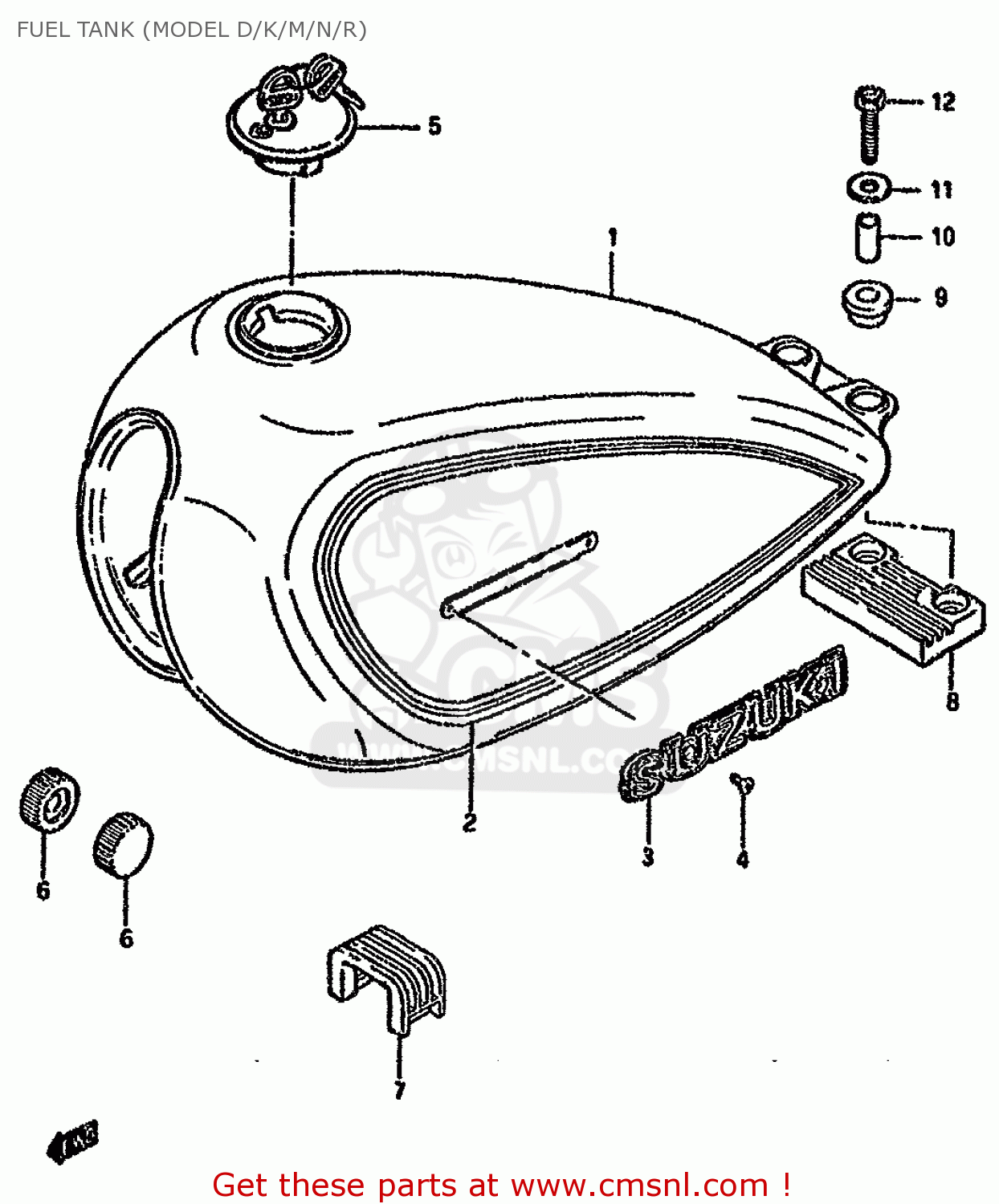

Fuel tank (model d/k/m/n/r) diagram GN125E 1994 (R) SINGAPORE (E30)

FUEL TANK (MODEL D/K/M/N/R) GN125E 1994 (R) SINGAPORE (E30)
FUEL TANK (MODEL D/K/M/N/R) GN125E 1994 (R) SINGAPORE (E30)
FUEL TANK (MODEL D/K/M/N/R) GN125E 1994 (R) SINGAPORE (E30)
prices are in EUR
ref
part #
description
quantity
1-1
4410038320019
ref: 1-1
MODEL D
TANK ASSY,FUEL (BLACK)
€ 415.00
1-2
441003832014W
ref: 1-2
MODEL D
TANK ASSEMBLY,FUEL
€ 346.00
1-3
441003832000J
ref: 1-3
MODEL D
TANK ASSEMBLY,FUEL
€ 0.00
1-4
441003832007P
ref: 1-4
MODEL D E30
TANK ASSEMBLY,FUEL
€ 0.00
1-5
441003832012F
ref: 1-5
MODEL K
TANK ASSEMBLY,FUEL
441003832012F
€ 346.00
1-6
441003832013Z
ref: 1-6
MODEL K
TANK ASSEMBLY,FUEL
€ 415.00
1-7
441003832019A
ref: 1-7
MODEL M/N/R
TANK ASSEMBLY,FUEL
€ 426.50
1-8
441003832033J
ref: 1-8
MODEL M/N/R
TANK ASSEMBLY,FUEL
€ 426.50
1-9
441003832034R
ref: 1-9
MODEL M
TANK ASSEMBLY,FUEL
€ 448.00
1-10
441003832120F
ref: 1-10
MODEL R
TANK ASSEMBLY,FUEL
€ 0.00
1-11
441003839019A
ref: 1-11
MODEL R E22
TANK ASSY,FUEL(RED)
€ 426.50
1-12
441003839033J
ref: 1-12
MODEL R E22
TANK ASSY,FUEL(BLACK)
€ 426.50
1-13
441003839020F
ref: 1-13
MODEL R E22
TANK ASSY,FUEL (MAROON)
€ 0.00
2-1
681103832067N
ref: 2-1
FOR 14W,12F
TAPE SET,FUEL TANK
€ 50.50
2-2
681103832061R
ref: 2-2
MODEL D E30,FOR 07P
TAPE SET,FUEL TANK
€ 0.00
2-3
681103832069K
ref: 2-3
FOR 019,00J,13Z
TAPE SET,FUEL TANK
€ 0.00
2-4
6811038320G29
ref: 2-4
MODEL M/N/R FOR 19A
TAPE SET,FUEL TANK
€ 56.50
2-5
6811038320G31
ref: 2-5
MODEL M/N/R FOR 33J
TAPE SET,FUEL TANK
€ 53.50
2-6
6811038320G32
ref: 2-6
MODEL M FOR 34R
TAPE,FUEL TANK
€ 0.00
2-7
6811038320E2G
ref: 2-7
MODEL R FOR 20F
TAPE SET,FUEL TANK
€ 48.50
3
6811137300
ref: 3
EMBLEM,FUEL TANK
6811137300
€ 14.00
4-1
0213203065
ref: 4-1
MODEL D/K/M/N
SCREW 3X6
0213203065
€ 2.00
4-2
0212203063
ref: 4-2
MODEL R
SCREW
0212203063
€ 2.00
5-1
4420030516KEY
ref: 5-1
MODEL D/K
CAP SET,FUEL TANK
4420030516KEY
€ 112.00
5-2
4420030830
ref: 5-2
MODEL M/N/R
CAP SET,FUEL TANK
4420030830
€ 112.00
6
0932910016
ref: 6
CUSHION
0932910016
€ 3.00
7
4454105300
ref: 7
CUSHION,FUEL TANK UPR FR
4454105300
€ 10.50
8
4454238300
ref: 8
CUSHION,TANK RR NO.1
4454238300
€ 8.00
9
0932010022
ref: 9
CUSHION
0932010022
€ 2.50
10
0918006067
ref: 10
SPACER(6.5X10.5X22.5)
0918006067
€ 2.50
11
0916006012
ref: 11
WASHER(6,5X22X1.6)
€ 2.00
12
0910006033
ref: 12
BOLT(6X35)
0910006033
€ 12.50
