MAGNETO

GN125E 1998 (W) SINGAPORE (E30)

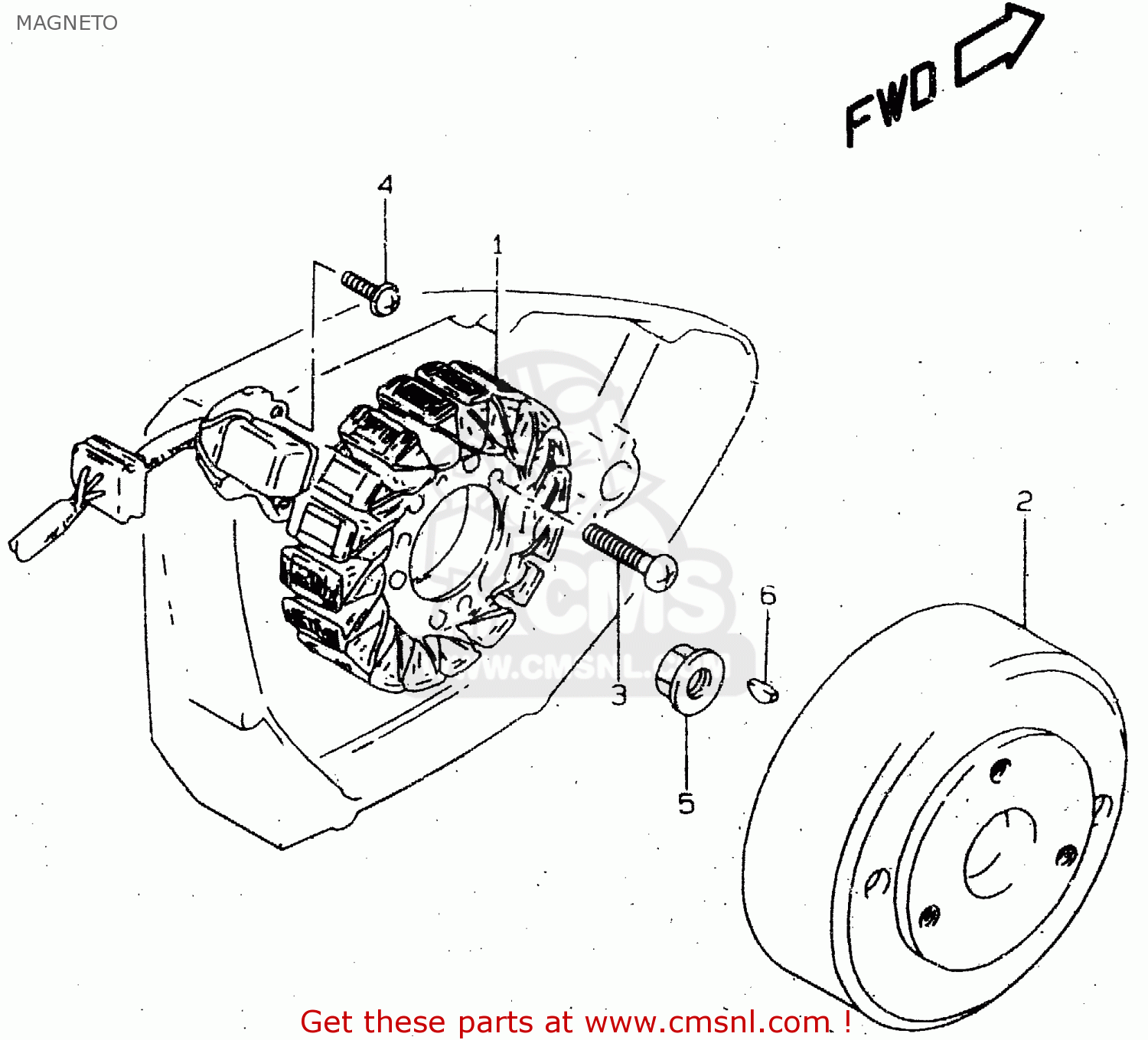

Magneto diagram GN125E 1998 (W) SINGAPORE (E30)

MAGNETO GN125E 1998 (W) SINGAPORE (E30)

MAGNETO GN125E 1998 (W) SINGAPORE (E30)

prices are in EUR

ref

part #

description

quantity

1

3210105300
ref: 1

STARTER ASSY

€ 602.50

2

3210205300
ref: 2

ROTOR,FLYWHEEL

€ 341.00

3

0211205253
ref: 3

SCREW

€ 1.50

4

0214204123
ref: 4

SCREW

€ 1.50

5

0831610103
ref: 5

NUT

€ 2.00

6

0834131039
ref: 6

KEY

€ 2.00
