STARTING MOTOR

GN125E 1998 (W) SINGAPORE (E30)

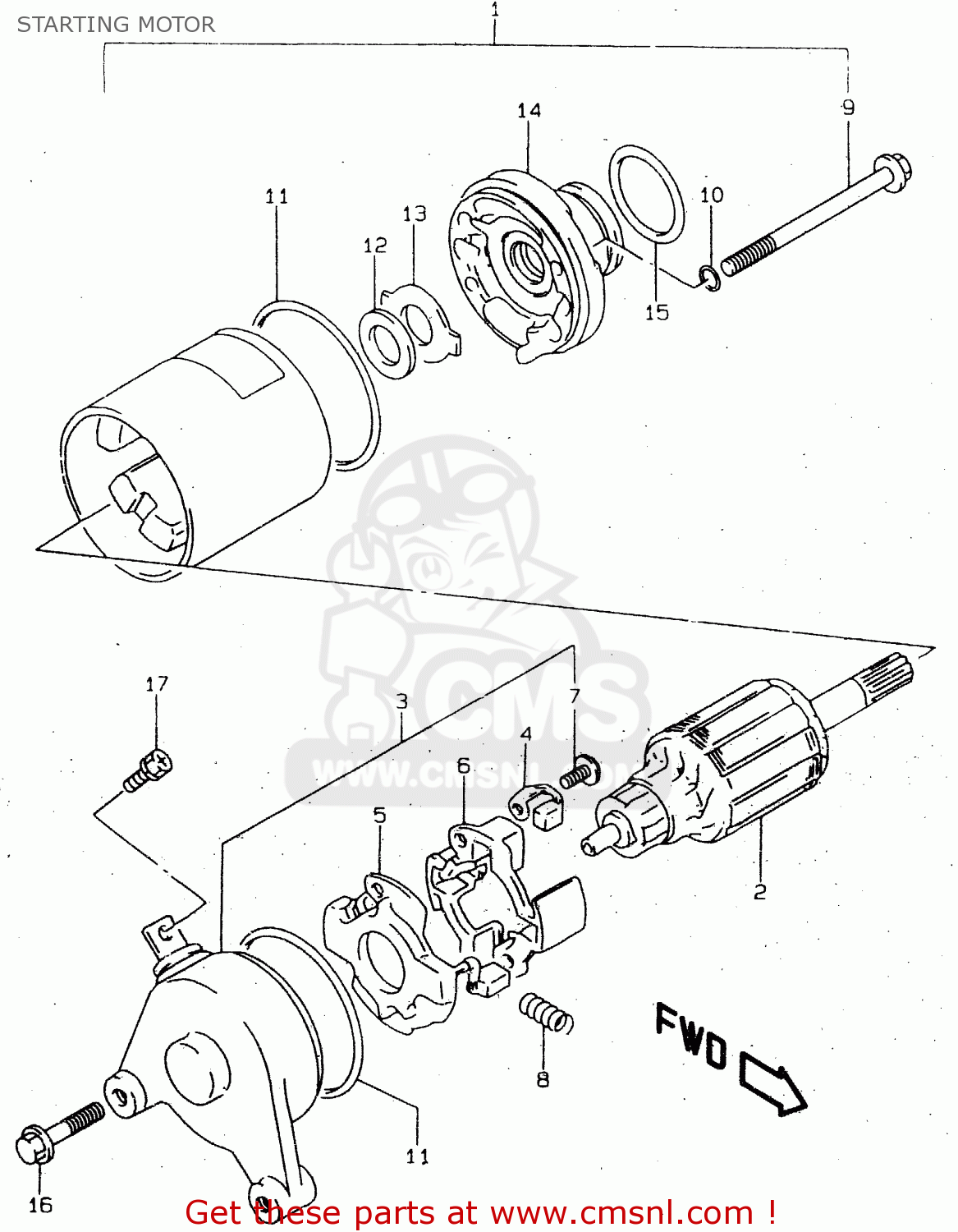

Starting motor diagram GN125E 1998 (W) SINGAPORE (E30)

STARTING MOTOR GN125E 1998 (W) SINGAPORE (E30)

STARTING MOTOR GN125E 1998 (W) SINGAPORE (E30)

prices are in EUR

ref

part #

description

quantity

1

3110005501
ref: 1

MOTOR ASSY,STARTING

€ 899.00

2

3131011D00
ref: 2

ARMATURE

€ 265.50

3

3117542A01
ref: 3

FRAME ASSY,COMMUTATOR END

€ 66.50

4

3113232C10
ref: 4

BRUSH

€ 14.50

5

3113032C20
ref: 5

BRUSH SUB ASSY,STARTER

€ 28.00

6

3113332C10
ref: 6

HOLDER,BRUSH

€ 9.00

7

0211234123
ref: 7

SCREW

€ 2.00

8

3113532C10
ref: 8

SPRING

€ 3.50

9

3128132C10
ref: 9

BOLT

€ 8.50

10

3115638300
ref: 10

O RING

€ 3.00

11

3126432C10
ref: 11

O RING

€ 9.00

12

3136138300
ref: 12

SHIM

€ 1.50

13

3136132C10
ref: 13

PLATE,LOCK

€ 2.50

14

3115006C00
ref: 14

BRACKET

€ 112.00

15

0928024003
ref: 15

O RING(D:3,ID:24.5)

€ 2.00

16

0154706307
ref: 16

BOLT

€ 2.50

17

0913705004
ref: 17

SCREW(5X8)

€ 2.00
