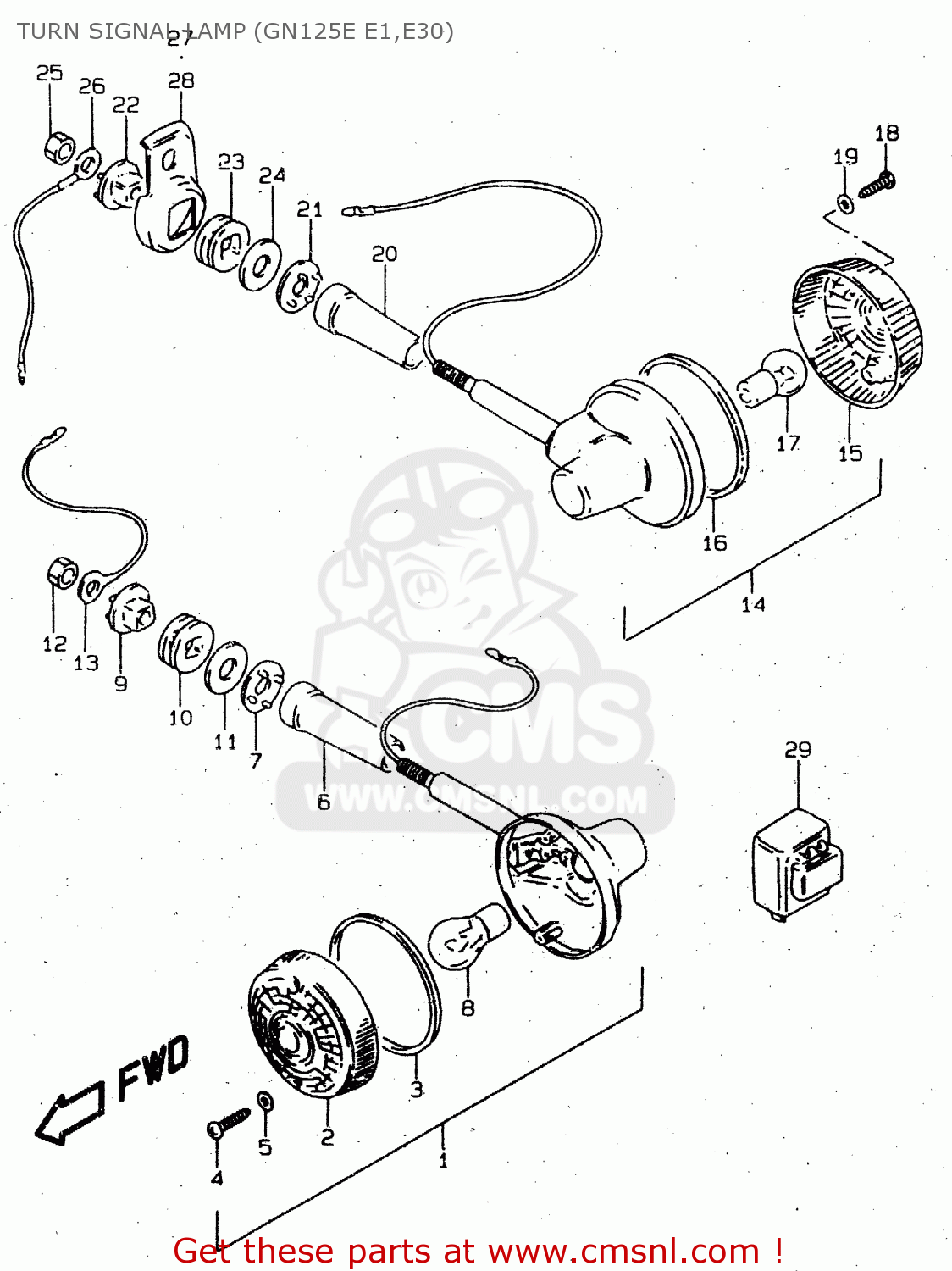

TURN SIGNAL LAMP (GN125E E1,E30)

ref

part #

description

quantity

1

3560347230999
ref: 1

LAMP ASSY,TURNSIGNAL

€ 122.50

2

3561228620
ref: 2

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0321104208
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3561747230
ref: 6

COVER,STAY

€ 10.00

7

3566847290
ref: 7

CUSHION

€ 3.00

8

0947112006
ref: 8

BULB(12V23W,STANLEY,A4577A)

€ 4.00

9

3569532401
ref: 9

SPACER

€ 4.50

10

3569032200
ref: 10

CUSHION

€ 38.50

11

0916010006
ref: 11
MODEL V

WASHER (10.5X30X2.3)

€ 2.50

11

0916010501
ref: 11
MODEL W/X

WASHER(10.5X30X2.3)

€ 2.50

12

0831000107
ref: 12

NUT

€ 2.50

13

3666033000
ref: 13

LEAD WIRE,EARTH

€ 5.00

14

3560345230
ref: 14

LAMP ASSY,RR TURNSIGNAL

€ 110.00

15

3561228620
ref: 15

LENS

€ 10.50

16

3561328620
ref: 16

GASKET (NAS)

€ 7.00

17

0947112006
ref: 17

BULB(12V23W,STANLEY,A4577A)

€ 4.00

18

0321104208
ref: 18

SCREW

€ 1.50

19

3562743010
ref: 19

GASKET (NAS)

€ 2.00

20

3565745230
ref: 20

COVER

€ 7.50

21

3566847290
ref: 21

CUSHION

€ 3.00

22

3569532401
ref: 22

SPACER

€ 4.50

23

0932015004
ref: 23

CUSHION

€ 5.00

24

0916010501
ref: 24
<-09160-10006

WASHER(10.5X30X2.3)

€ 2.50

25

0831000107
ref: 25

NUT

€ 2.50

26

3686244000
ref: 26

LEAD WIRE,EARTH

€ 4.00

27

3562138300
ref: 27

BRACKET,RR TURNSIGNAL LAMP,R

€ 7.00

28

3564138300
ref: 28

BRACKET,RR TURNSIGNAL LAMP,L

€ 7.00

29

3861031X50
ref: 29

RELAY ASSY,TURNSIGNAL

€ 54.50
