MASTER CYLINDER (MODEL R)

GN250 1988 (J) (E2 E22 E24 E39 E53)

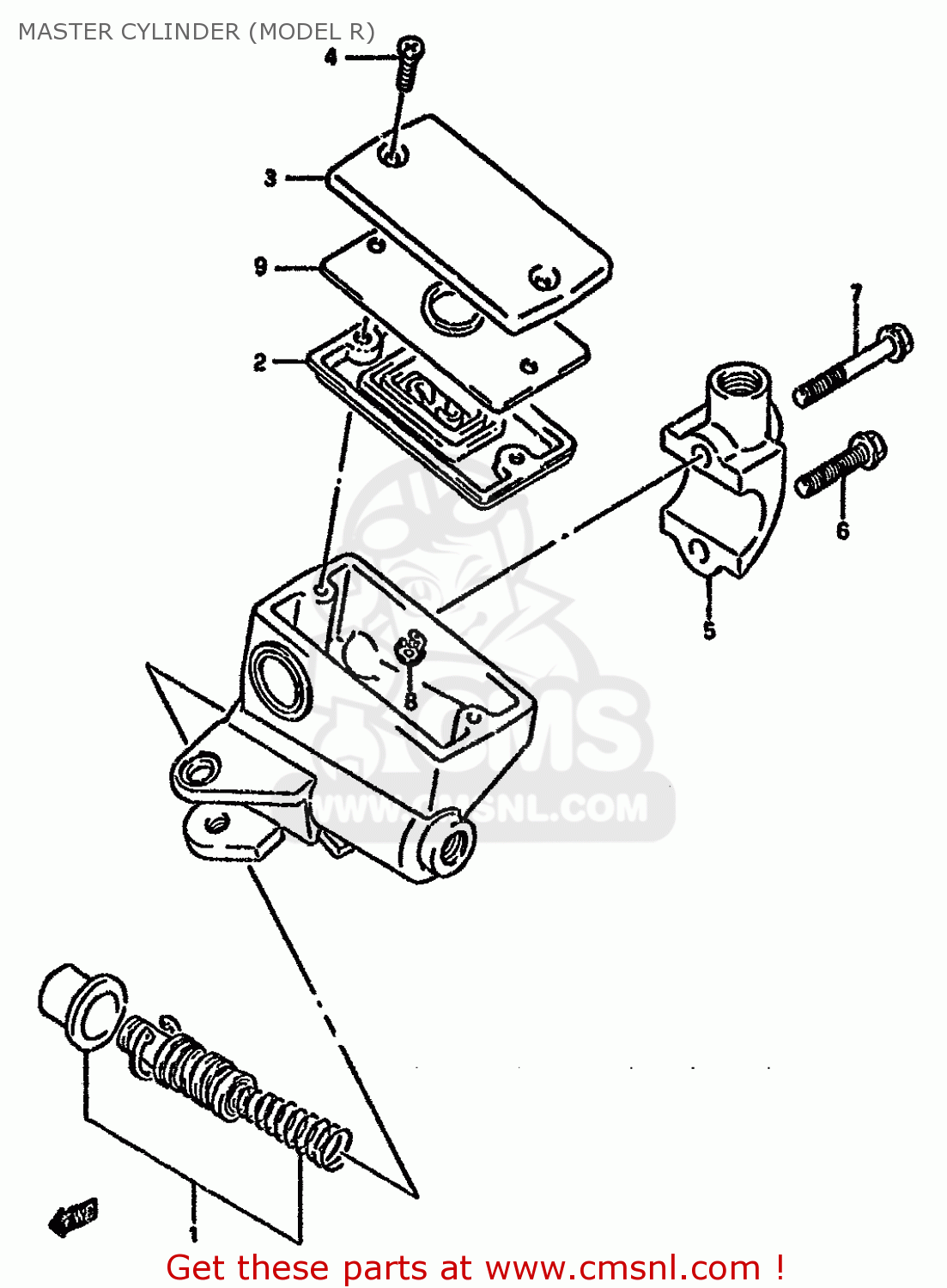

Master cylinder (model r) diagram GN250 1988 (J) (E2 E22 E24 E39 E53)

MASTER CYLINDER (MODEL R) GN250 1988 (J) (E2 E22 E24 E39 E53)

MASTER CYLINDER (MODEL R) GN250 1988 (J) (E2 E22 E24 E39 E53)

prices are in EUR

ref

part #

description

quantity

0

5960010020
ref: 0

CYLINDER ASSY,MASTER

€ 0.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

5966749460
ref: 2

5966749460

3

5966941C00
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

5967519C00
ref: 6

BOLT(6X25)

€ 3.00

7

5967519C10
ref: 7

BOLT(6X38)

€ 4.00

8

5966448B00
ref: 8

PROTECTOR

€ 8.00

9

5966841C00
ref: 9

PLATE,DIAPHRAGM

€ 8.00
