SPEEDOMETER-TACHOMETER

GN250 1988 (J) (E2 E22 E24 E39 E53)

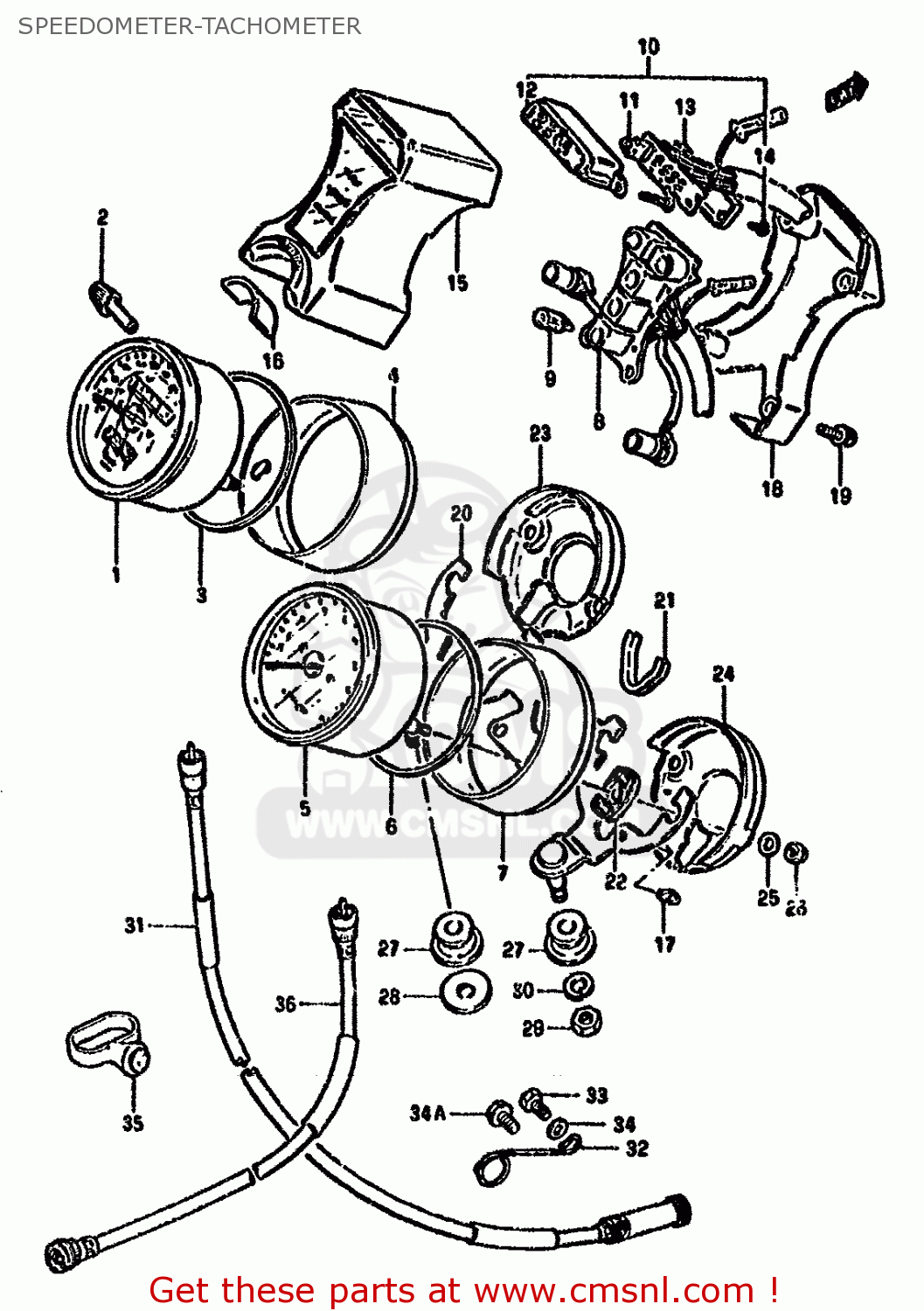

Speedometer-tachometer diagram GN250 1988 (J) (E2 E22 E24 E39 E53)

SPEEDOMETER-TACHOMETER GN250 1988 (J) (E2 E22 E24 E39 E53)
SPEEDOMETER-TACHOMETER GN250 1988 (J) (E2 E22 E24 E39 E53)
SPEEDOMETER-TACHOMETER GN250 1988 (J) (E2 E22 E24 E39 E53)
prices are in EUR
ref
part #
description
quantity
1-1
3411038300
ref: 1-1
E1,E4,E22,E24,E25,E3
SPEEDOMETER
3411038300
€ 264.50
1-2
3411038330
ref: 1-2
E2
SPEEDOMETER
€ 0.00
2
3498045020
ref: 2
KNOB
3498045020
€ 4.50
3
3418945300
ref: 3
CUSHION
3418945300
€ 10.00
4
3415145300
ref: 4
COVER,SPEEDOMETER
3415145300
€ 16.00
5
3421038300
ref: 5
TACHOMETER ASSY
3421038300
€ 229.00
6
3418945300
ref: 6
CUSHION
3418945300
€ 10.00
7
3425145300
ref: 7
COVER,TACHOMETER
3425145300
€ 12.00
8
3417337380
ref: 8
SOCKET
3417337380
€ 35.50
9
0947112028
ref: 9
BULB(12V3.4W,T10)
0947112028
€ 3.50
10
3645038301
ref: 10
INDICATOR ASSY,GEAR POSITION
3645038301
€ 113.00
11
0947112071
ref: 11
BULB(14V1.12W)
0947112071
€ 5.00
12
3645249401
ref: 12
CASE,GEAR INDICATOR
€ 12.50
13
3645445100
ref: 13
COVER,LWR
3645445100
€ 7.00
14
3645645100
ref: 14
SCREW,GEAR INDICATOR
€ 2.00
15
3638037380
ref: 15
BOX,PILOT
3638037380
€ 73.50
16
3499347000
ref: 16
SEAL,IGNITION SWITCH
3499347000
€ 3.00
17
3419144310
ref: 17
CUSHION
3419144310
€ 3.00
18
3638344310
ref: 18
COVER,PILOT BOX LWR
3638344310
€ 20.00
19
3638744310
ref: 19
SCREW,PILOT BULB CASE
€ 1.00
20
3495038300
ref: 20
BRACKET
3495038300
€ 38.50
21
3495344310
ref: 21
BRACKET,COVER
€ 6.50
22
3418944311
ref: 22
-34189-44310
CUSHION,METER
€ 2.50
23
3419345300
ref: 23
ORNAMENT,SPEEDOMETER
3419345300
€ 35.50
24
3429345300
ref: 24
COVER,TACHOMETER
3429345300
€ 35.50
25
0832201057
ref: 25
WASHER
0832201057
€ 2.50
26
0831311057
ref: 26
NUT
0831311057
€ 1.50
27
3495631001
ref: 27
CUSHION,METER BRACKET
3495631001
€ 4.50
28
0916008057
ref: 28
WASHER (8.5X20X1.6)
0916008057
€ 2.00
29-1
0831012085
ref: 29-1
MODEL F/J/K/L/M/N/P
NUT ,8MM
0831012085
€ 1.50
29-2
0831000083
ref: 29-2
MODEL R
NUT
0831000083
€ 1.50
30-1
0832121084
ref: 30-1
MODEL F/J/K/L/M/N/P
WASHER,LOCK,8.
0832121084
€ 2.50
30-2
0832101083
ref: 30-2
MODEL R
LOCK WASHER
0832101083
€ 2.50
31
3491038301
ref: 31
CABLE ASSY,SPEEDOMETER
3491038301
€ 60.50
32-1
3493845100
ref: 32-1
MODEL E/J/K/L/M
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
32-2
3493837000
ref: 32-2
MODEL N/P/R
GUIDE,SPEEDOMETER CABLE
3493837000
€ 14.50
33-1
0150006167
ref: 33-1
MODEL E/J/K/L/M/N
BOLT
0150006167
€ 3.00
33-2
0111406168
ref: 33-2
MODEL P
BOLT
€ 1.50
34
0832201067
ref: 34
WASHER
0832201067
€ 2.00
34A
0155006163
ref: 34A
MODEL R
BOLT
0155006163
€ 2.50
35
5862121203A
ref: 35
GUIDE,CABLE
€ 7.50
36
3494038300
ref: 36
CABLE ASSY,TACHOMETER
3494038300
€ 40.00
