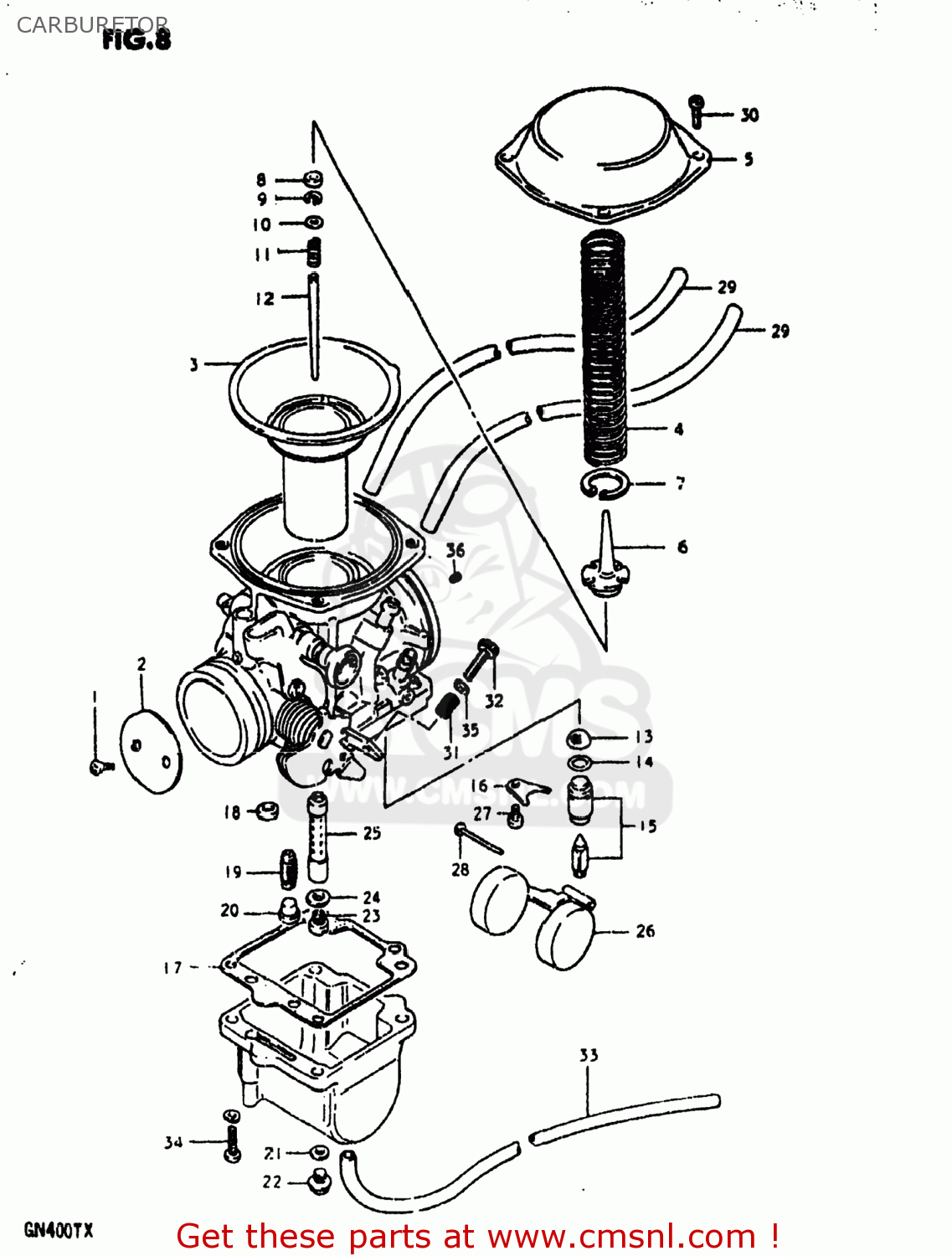

CARBURETOR

ref

part #

description

quantity

0

1320037300
ref: 0

CARBURETOR ASSEMBLY

€ 184.50

1

1360444080
ref: 1

SCREW

€ 3.50

2

1355137100
ref: 2

VALVE,THROTTLE (BUTTERFLY)

€ 0.00

3

1350037100
ref: 3

DIAPHRAGM

€ 188.00

4

1350337100
ref: 4

SPRING

€ 9.00

5

1350237100
ref: 5

COVER,DIAPHRAGM

€ 0.00

6

1338944030
ref: 6

HOLDER,GUIDE

€ 10.50

7

1358144030
ref: 7

E RING

€ 6.50

8

1338744030
ref: 8

RING

€ 5.00

9

1339431210
ref: 9

CLIP,NEEDLE

€ 3.50

10

1338244030
ref: 10

WASHER

€ 3.50

11

1338844030
ref: 11

SPRING

€ 6.00

12

1338337100
ref: 12

NEEDLE JET

€ 8.00

13

1337644080
ref: 13
13376-19F00

FILTER

€ 6.50

14

6626399050
ref: 14
13374-35C00

O RING

€ 6.00

15

1337037100
ref: 15
13370-05530

VALVE ASSEMBLY,NEEDLE

€ 63.00

16

1337339110
ref: 16

PLATE

€ 6.50

17

1325137100
ref: 17
13251-38300

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

18

1325844080
ref: 18

GASKET (NAS)

€ 4.00

19

0949242007
ref: 19

JET,PILOT(42.5)

€ 8.50

20

1335744080
ref: 20

PLUG,NEEDLE JET

€ 4.50

21

1324644080
ref: 21

GASKET (NAS)

€ 3.50

22

1324744080
ref: 22

PLUG,DRAIN

€ 9.50

23

0949126012
ref: 23

JET,MAIN(132.5)

€ 11.50

24

1338203110
ref: 24

WASHER

€ 2.50

25

0949400299
ref: 25

JET,NEEDLE

€ 7.50

26

1325037100
ref: 26

FLOAT

€ 33.50

27

0211204068
ref: 27
02112-0406B

SCREW 4X6

€ 2.00

28

1325492311
ref: 28

PIN,FLOAT

€ 2.00

29

1368437100
ref: 29
44420-44AR0

HOSE

€ 13.00

30

0211205128
ref: 30
02112-05127

SCREW

€ 2.50

31

1327137100
ref: 31
13271-93011

SPRING

€ 4.50

32

1326737100
ref: 32
13267-25D00

SCREW,THROTTLE STOP

€ 9.00

33

1368347020
ref: 33
13683-45070

HOSE

€ 10.00

34

0211205168
ref: 34
02112-05167

SCREW

€ 2.50

35

1327737100
ref: 35

WASHER

€ 2.00

36

0949320006
ref: 36

JET

€ 11.50
