CHAIN CASE - SHOCK ABSORBER

GN400T 1980 (T) USA (E03)

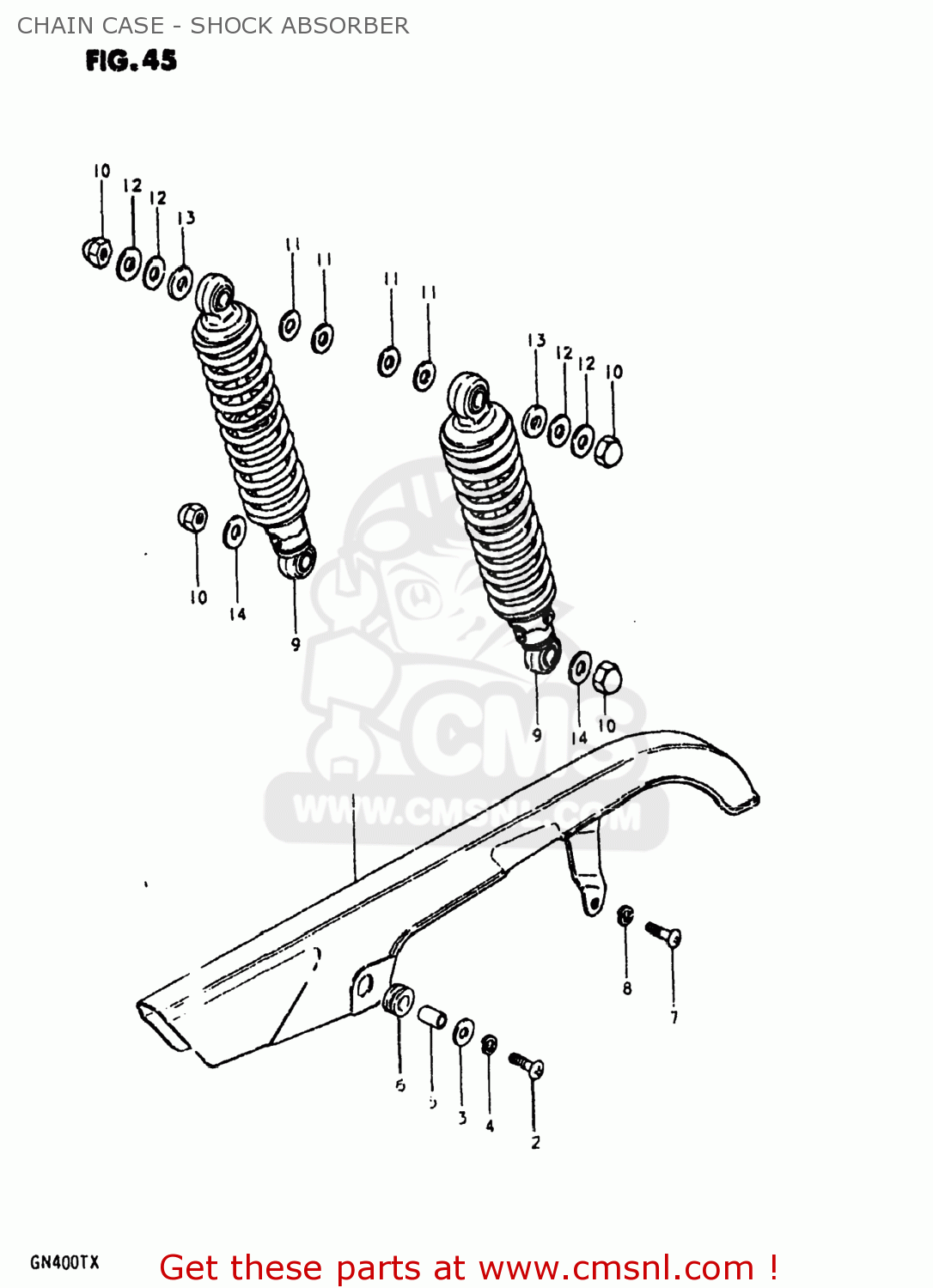

Chain case - shock absorber diagram GN400T 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6131037300
ref: 1-1
61310-37302

CASE,CHAIN

€ 49.50

1-2

6131037302
ref: 1-2

CASE,CHAIN

€ 49.50

0211206168
ref: 2
02112-06167

SCREW

€ 2.50

0916006027
ref: 3
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

0918007005
ref: 5
09180-06259

SPACER (7X9X7)

€ 2.50

0932008007
ref: 6
09320-08021

CUSHION

€ 4.00

0211206168
ref: 7
02112-06167

SCREW

€ 2.50

0832121068
ref: 8
08321-01067

LOCK WASHER

€ 2.50

6210037300
ref: 9

ABSORBER ASSEMBLY,REAR SHOCK

€ 162.00

0831311108
ref: 10
08313-10107

NUT, LOWER LH

€ 2.50

0832211128
ref: 11
08322-01127

WASHER

€ 2.00

0916010001
ref: 12
09160-10093

WASHER

€ 2.00

0916010033
ref: 13
09160-10128-XC0

WASHER(10.5X24X3.2)

€ 2.00

0916010001
ref: 14
09160-10093

WASHER

€ 2.00
