SPEEDOMETER - TACHOMETER
GN400T 1980 (T) USA (E03)

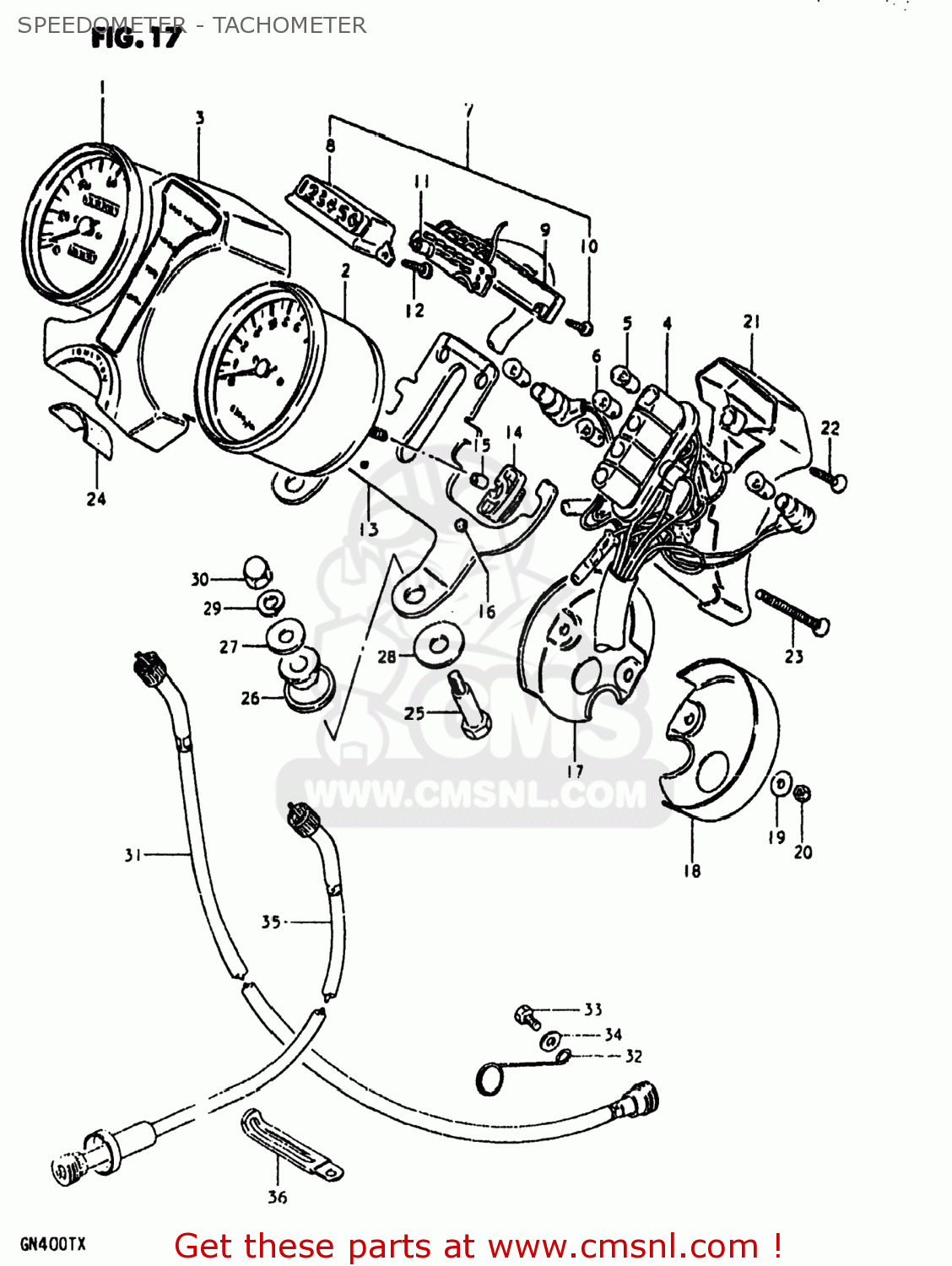

Speedometer - tachometer diagram GN400T 1980 (T) USA (E03)
SPEEDOMETER - TACHOMETER GN400T 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3411037310
ref: 1
34110-37410
SPEEDOMETER ASSEMBLY
€ 141.50
2
3421037310
ref: 2
34210-37300
TACHOMETER
€ 164.50
3
3638037300
ref: 3
CASE,PILOT BULB
€ 57.50
4
3417337300
ref: 4
34173-37301
SOCKET,METER
€ 11.00
5
0947106002
ref: 5
BULB(6V/3W)
€ 2.50
6
0947106001
ref: 6
BULB(6V1.7W,STANLEY,A61A)
€ 2.50
7
3645037300
ref: 7
INDICATOR ASSEMBLY,GEAR
€ 103.00
8
3645245100
ref: 8
CASE,GEAR INDICATOR
€ 14.50
9
3645445100
ref: 9
COVER,LWR
€ 7.00
10
3645645100
ref: 10
03511-03146
SCREW,GEAR INDICATOR
€ 2.00
11
0947106051
ref: 11
BULB(7V1.1W,BQ041-27503B)
€ 3.00
12
3645745100
ref: 12
SCREW
€ 2.00
13-1
3495037300
ref: 13-1
34950-37301
BRACKET,METER
€ 24.00
13-2
3495037301
ref: 13-2
BRACKET,COMBINATION METER
€ 24.00
14
3418937300
ref: 14
CUSHION,SPEEDOMETER
€ 4.00
15
3497244022
ref: 15
SPACER
€ 5.50
16
3419137300
ref: 16
CUSHION,METER
€ 2.50
17
3419337300
ref: 17
COVER,METER
€ 10.50
18
3429337300
ref: 18
PLATE,TACHOMETER UNDER
€ 12.50
19
0832221058
ref: 19
08322-01057
WASHER
€ 2.50
20
0831311057
ref: 20
08313-1005A
NUT
€ 1.50
21
3638237300
ref: 21
COVER,PILOT BULB CASE
€ 10.00
22
0323104205
ref: 22
SCREW
€ 1.50
23
3638737300
ref: 23
SCREW
€ 1.50
24
3499347000
ref: 24
SEAL,IGNITION SWITCH
€ 3.00
25
0911108040
ref: 25
09111-08031
BOLT
€ 4.00
26
3495631000
ref: 26
34956-31001
CUSHION,METER
€ 4.50
27
0916008047
ref: 27
09160-08130
WASHER(8.5X23X1.2)
€ 2.00
28
0916010028
ref: 28
09160-10035
WASHER
€ 2.00
29
0832121088
ref: 29
08321-01087
LOCK WASHER
€ 2.00
30
0831311088
ref: 30
08313-10087
NUT
€ 2.50
31
3491037310
ref: 31
34910-37311
CABLE ASSEMBLY,SPEEDOMETER
€ 25.00
32
3493837000
ref: 32
GUIDE,SPEEDOMETER CABLE
€ 14.50
33
0110706168
ref: 33
01500-06167
BOLT, UPPER
€ 3.00
34
0832221068
ref: 34
08322-01067
WASHER
€ 2.00
35
3494037310
ref: 35
34940-37311
CABLE ASSEMBLY,TACHOMETER
€ 36.50
36
0940406401
ref: 36
09404-06432
CLAMP L:35
€ 2.50
