FOOTREST
GN400XX 1980 (T) USA (E03)

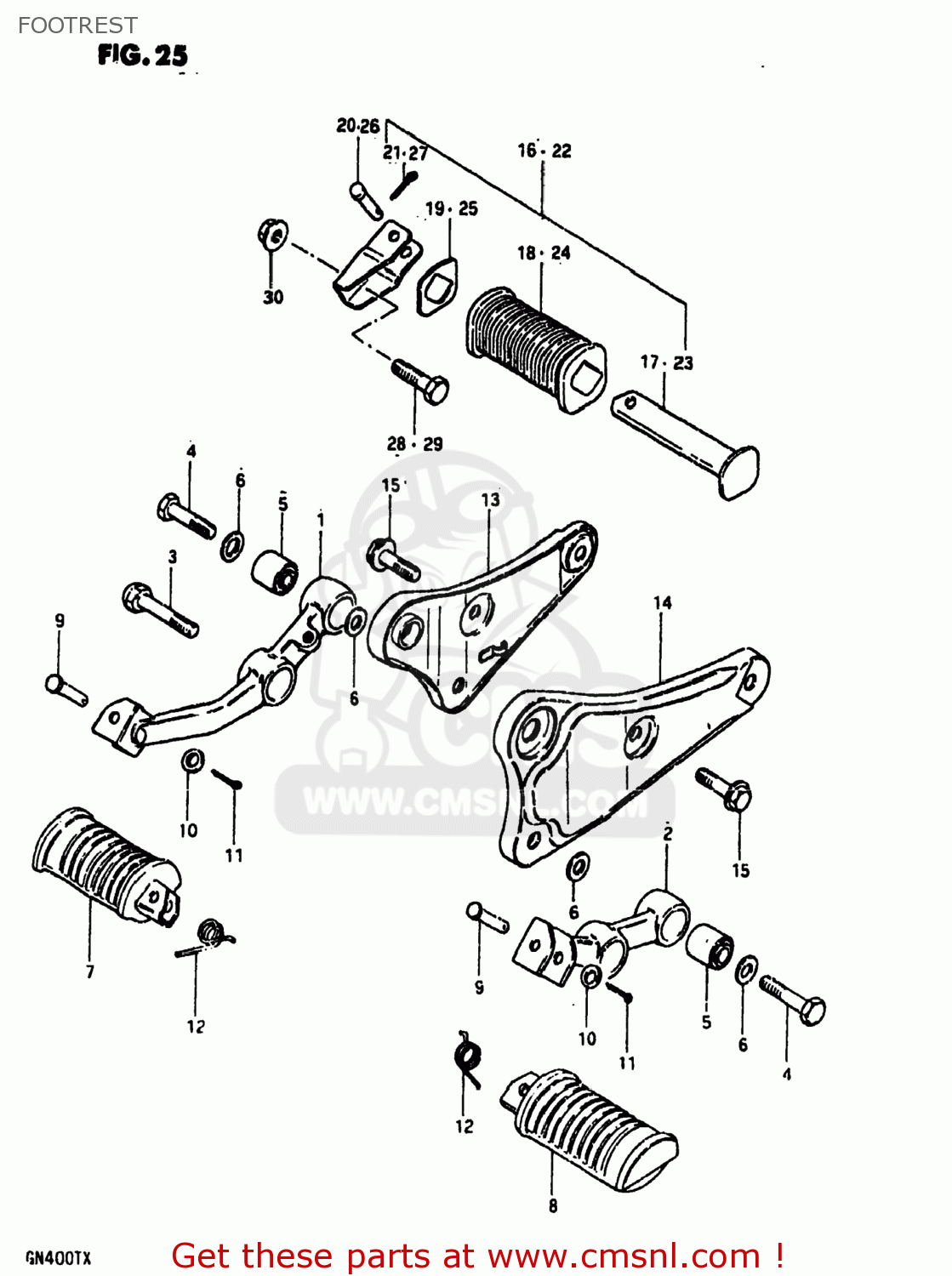

Footrest diagram GN400XX 1980 (T) USA (E03)
FOOTREST GN400XX 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351037300
ref: 1-1
BAR,FRONT FOOTREST
€ 26.00
1-1
4351037300
ref: 1-1
BAR,FRONT FOOTREST
€ 26.00
1-2
4351037301
ref: 1-2
BAR,FRONT FOOTREST,RIGHT
€ 26.00
1-2
4351037301
ref: 1-2
BAR,FRONT FOOTREST,RIGHT
€ 26.00
2
4352037300
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 49.00
3
0910410009
ref: 3
BOLT(10X50)
€ 19.50
4
0910410010
ref: 4
BOLT(10X35)
€ 3.50
5
0931910033
ref: 5
BUSH(10.2X25X19)
€ 6.50
6
0916010059
ref: 6
09160-10124
WASHER
€ 2.50
7
4355037300
ref: 7
43550-37301
RUBBER,FOOTREST
€ 22.50
8
4356037300
ref: 8
43560-37301
FOOTREST
€ 22.50
9
0920008002
ref: 9
PIN
€ 2.00
10
0832211088
ref: 10
08322-01087
WASHER
€ 2.00
11
0411120158
ref: 11
04111-2015A
PIN
€ 1.50
12
0944814012
ref: 12
SPRING
€ 3.00
13-1
4381037300
ref: 13-1
43810-37302
BRACKET
€ 36.00
13-2
4381037301
ref: 13-2
43810-37302
BRACKET
€ 36.00
14
4382037300
ref: 14
BRACKET
€ 54.50
15
0152710207
ref: 15
01550-1020A
BOLT
€ 3.00
16-1
4360037300
ref: 16-1
43600-37301
FOOTREST ASSEMBLY,REAR
€ 24.00
16-1
4360037300
ref: 16-1
43600-37301
FOOTREST ASSEMBLY,REAR
€ 24.00
16-2
4370037300
ref: 16-2
43700-37301
FOOTREST ASSEMBLY,PILLION
€ 11.00
16-2
4370037300
ref: 16-2
43700-37301
FOOTREST ASSEMBLY,PILLION
€ 11.00
17-1
4361049200
ref: 17-1
43610-49201
BAR,REAR FOOTREST
€ 8.00
17-1
4361049200
ref: 17-1
43610-49201
BAR,REAR FOOTREST
€ 8.00
17-2
4362049200
ref: 17-2
43620-49201
BAR,REAR FOOTREST
€ 23.00
17-2
4362049200
ref: 17-2
43620-49201
BAR,REAR FOOTREST
€ 23.00
18
4361249200
ref: 18
43612-49201
RUBBER,REAR FOOTREST
€ 30.50
18
4361249200
ref: 18
43612-49201
RUBBER,REAR FOOTREST
€ 30.50
19
4363149200
ref: 19
43631-45001
WASHER,FOOTREST RUBBER
€ 16.00
19
4363149200
ref: 19
43631-45001
WASHER,FOOTREST RUBBER
€ 16.00
20
0920006035
ref: 20
PIN
€ 1.50
20
0920006035
ref: 20
PIN
€ 1.50
21
0411120158
ref: 21
04111-2015A
PIN
€ 1.50
21
0411120158
ref: 21
04111-2015A
PIN
€ 1.50
22-2
4360037301
ref: 22-2
FOOTREST ASSEMBLY,REAR,RIGHT
€ 24.00
22-2
4360037301
ref: 22-2
FOOTREST ASSEMBLY,REAR,RIGHT
€ 24.00
22-2
4370037301
ref: 22-2
FOOTREST ASSEMBLY,REAR,LEFT
€ 11.00
22-2
4370037301
ref: 22-2
FOOTREST ASSEMBLY,REAR,LEFT
€ 11.00
23
4361049201
ref: 23
BAR,REAR FOOTREST,RIGHT
€ 8.00
23
4361049201
ref: 23
BAR,REAR FOOTREST,RIGHT
€ 8.00
24
4361249201
ref: 24
RUBBER,PILLION FOOTREST
€ 30.50
24
4361249201
ref: 24
RUBBER,PILLION FOOTREST
€ 30.50
25
4363149201
ref: 25
43631-45001
WASHER,FOOTREST RUBBER
€ 16.00
25
4363149201
ref: 25
43631-45001
WASHER,FOOTREST RUBBER
€ 16.00
26
0920006035
ref: 26
PIN
€ 1.50
26
0920006035
ref: 26
PIN
€ 1.50
27
0411120158
ref: 27
04111-2015A
PIN
€ 1.50
27
0411120158
ref: 27
04111-2015A
PIN
€ 1.50
28
0152710308
ref: 28
01550-10307
BOLT
€ 3.50
29
0152710258
ref: 29
01550-1025A
BOLT
€ 3.00
30
0831022108
ref: 30
08310-00107
NUT
€ 2.50
