HEADLAMP
GN400XX 1980 (T) USA (E03)

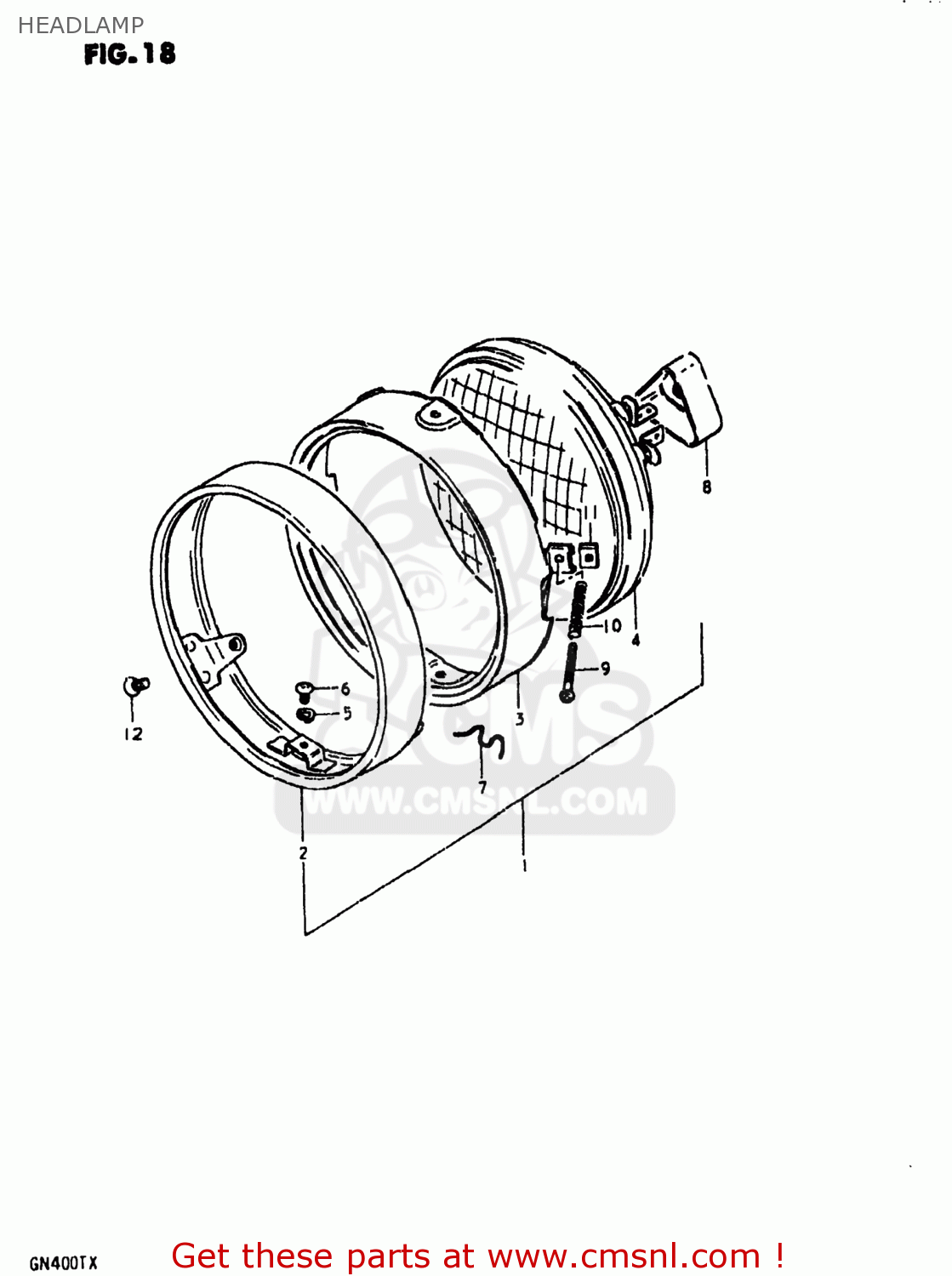

Headlamp diagram GN400XX 1980 (T) USA (E03)
HEADLAMP GN400XX 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510037330
ref: 1
HEADLAMP ASSEMBLY
€ 61.50
2
3511144250
ref: 2
RIM
€ 34.50
3
3512729610
ref: 3
RETAINER
€ 15.50
4
3512132410
ref: 4
LAMP UNIT
€ 62.00
5
0832121058
ref: 5
08321-0105A
LOCK WASHER
€ 2.00
6
3513629610
ref: 6
SCREW
€ 3.00
7
3512829611
ref: 7
SPRING,HEAD LAMP UNIT
€ 3.50
8
3517329610
ref: 8
COVER
€ 3.00
9
3515131610
ref: 9
SCREW
€ 4.00
10
3515433630
ref: 10
SPRING
€ 2.50
11
3515215611
ref: 11
NUT
€ 3.50
12
0213205108
ref: 12
02122-05107
SCREW
€ 1.00
