ELECTRICAL (2)

GP100 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

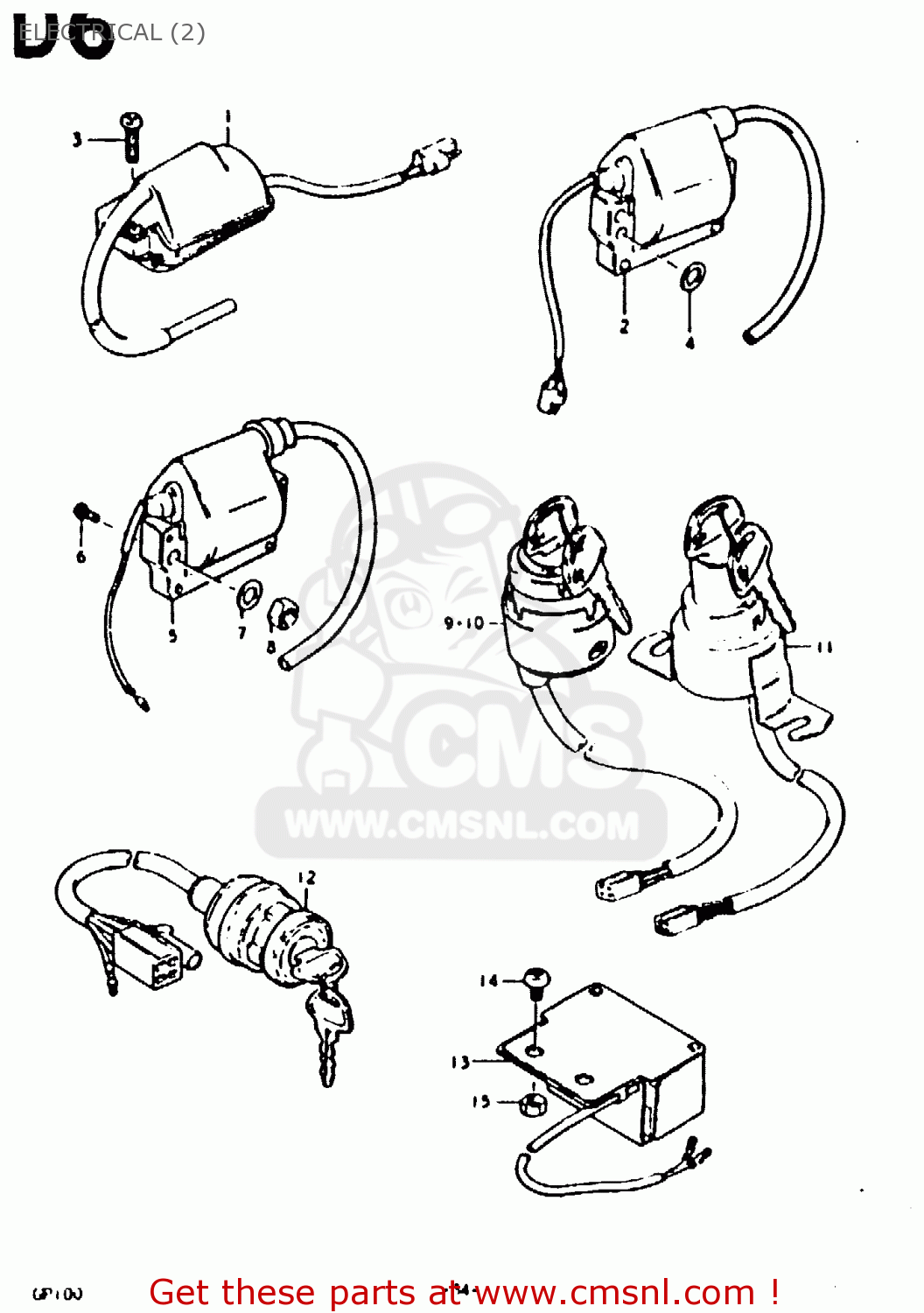

Electrical (2) diagram GP100 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

prices are in EUR

ref

part #

description

quantity

3341043010
ref: 5
E2, E24

COIL ASSEMBLY,IGNITION

€ 89.50

0211205208
ref: 6
E2, E24

SCREW 5X20

€ 3.00

0832221058
ref: 7
E2, E24

WASHER

€ 2.50

0831011058
ref: 8
E2, E24

NUT

€ 2.50

3711028655
ref: 12
E2

SWITCH ASSY, IGNITION

€ 86.50

3651048600
ref: 13
E2

RESISTOR ASSY

€ 23.00

0211206088
ref: 14
E2

SCREW

€ 2.00

0831011068
ref: 15
E2

NUT

€ 2.50
