MAGNETO

GP100 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

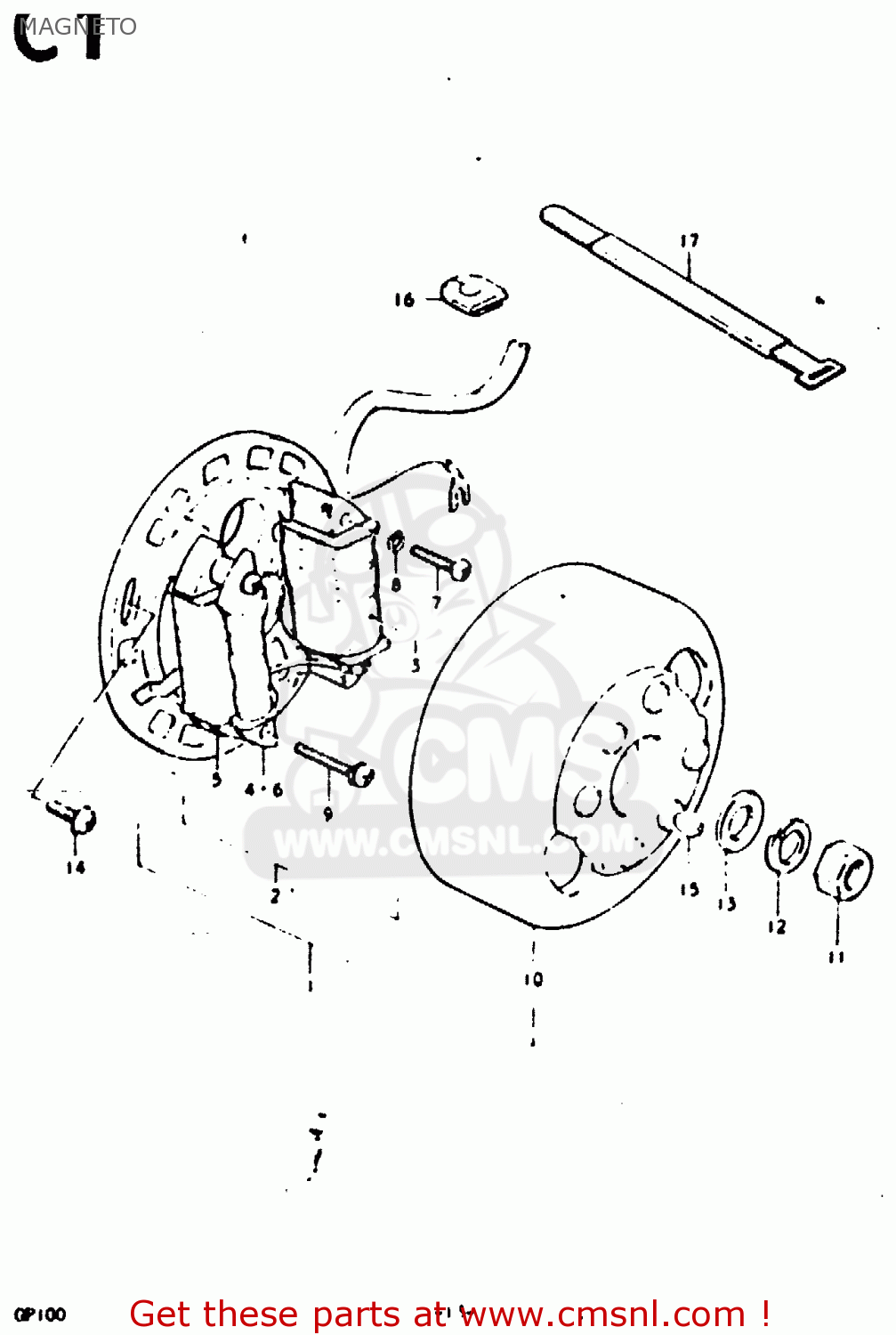

Magneto diagram GP100 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-1

3210039210
ref: 1-1

MAGNETO ASSY

€ 0.00

2-1

3210139210
ref: 2-1

STATOR ASSY

€ 0.00

3212048010
ref: 3

COIL,LIGHTING

€ 32.50

3214039210
ref: 4
TO 32140-39211 32150

COIL, IGNITION

€ 52.00

0211204258
ref: 7

SCREW 4X25

€ 2.00

0832121048
ref: 8

LOCK WASHER

€ 2.00

3235139210
ref: 9

SCREW

€ 2.50

10-1

3210239210
ref: 10-1

ROTOR

€ 0.00

0914010003
ref: 11

NUT (10MM)

€ 3.50

0832121108
ref: 12

LOCK WASHER

€ 2.00

0832221108
ref: 13

WASHER

€ 2.50

0913905011
ref: 14

SCREW(5X14)

€ 3.00

0834131039
ref: 15

KEY

€ 2.00

0930909007
ref: 16

GROMMET

€ 2.50

0940718301
ref: 17

CLAMP

€ 6.00

MAGNETO

all assemblies
