FRAME

GP100E 1983 (D) UNITED KINGDOM NORWAY (E02 E16)

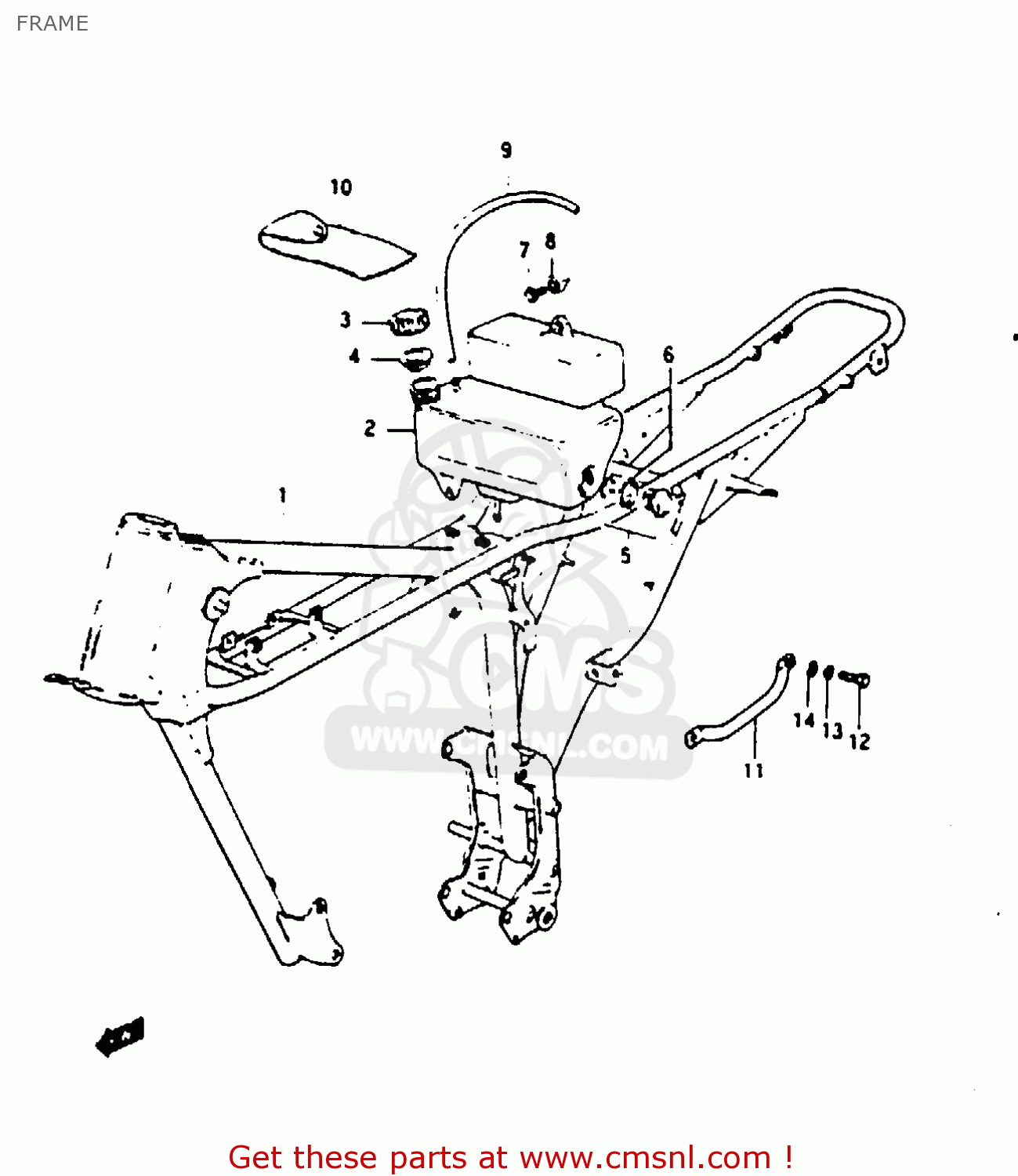

Frame diagram GP100E 1983 (D) UNITED KINGDOM NORWAY (E02 E16)

prices are in EUR

ref

part #

description

quantity

1-1

4110039103019
ref: 1-1
MODEL X/D

FRAME (BLACK)

€ 0.00

1-2

4110039104019
ref: 1-2
MODEL L

FRAME (BLACK)

€ 0.00

4461139100
ref: 2

TANK,OIL

€ 48.50

4465105003
ref: 3

CAP,OIL TANK

€ 4.00

4466127000
ref: 4

GASKET,OIL TANK CAP (NAS)

€ 27.50

4460046810
ref: 5

LENS SET,OIL LEVEL

€ 6.50

4464331000
ref: 6

GASKET (NAS)

€ 2.50

7-1

0110706166
ref: 7-1
MODEL X/D

BOLT

€ 2.00

7-2

0911606006
ref: 7-2
MODEL L

BOLT(6X16)

€ 2.00

0916006006
ref: 8

WASHER

€ 2.00

0934405005
ref: 9

HOSE

€ 10.00

0980002800
ref: 10

TOOL ASSY

€ 43.50

4141139600
ref: 11

GRIP, FRAME HANDLE

€ 17.00

0110708127
ref: 12

BOLT 8X12

€ 2.50

0832121088
ref: 13

LOCK WASHER

€ 2.00

0832211088
ref: 14

WASHER

€ 2.00
