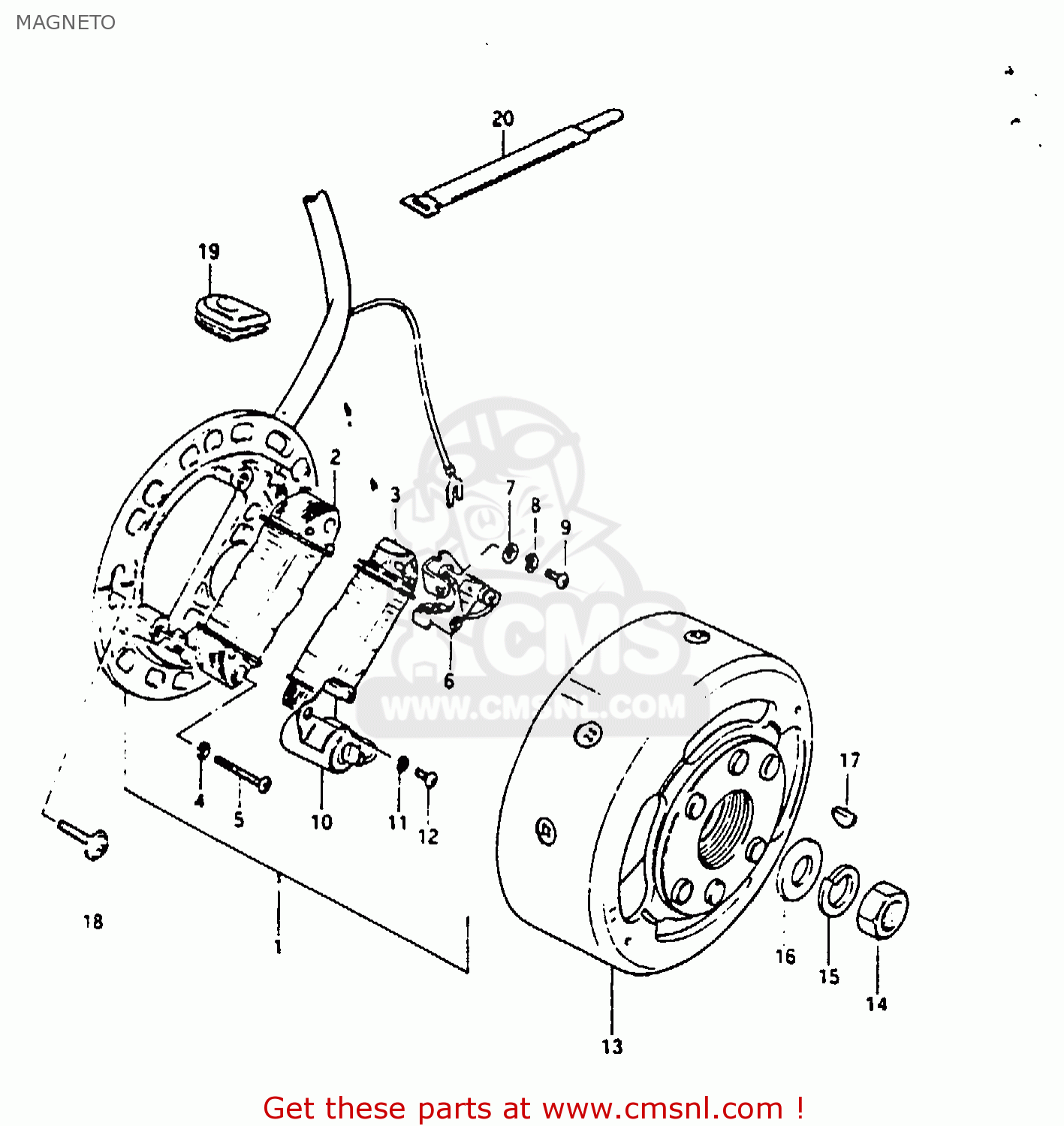

MAGNETO

ref

part #

description

quantity

1

3210148620
ref: 1

STATOR ASSY

€ 197.00

2

3212048620
ref: 2

COIL, LIGHTING

€ 38.00

3

3214048010
ref: 3

COIL,PRIMARY

€ 55.50

4

0832121047
ref: 4

WASHER,LOCK 4M

€ 1.50

5

0912504019
ref: 5

SCREW

€ 2.00

6

3224043012
ref: 6

POINT ASSY,CONTACT

€ 15.00

7

0832221047
ref: 7

WASHER 4MM

€ 2.00

8

0832121047
ref: 8

WASHER,LOCK 4M

€ 1.50

9

0912504001
ref: 9

SCREW(4X10)

€ 4.50

10

3234143012
ref: 10

CONDENSER

€ 11.50

11

0832121047
ref: 11

WASHER,LOCK 4M

€ 1.50

12

0211204087
ref: 12

SCREW

€ 1.00

13

3210248620
ref: 13

ROTOR, FLYWHEEL

€ 211.50

14

0914010003
ref: 14

NUT (10MM)

€ 3.50

15

0832121107
ref: 15

WASHER,LOCK,10

€ 1.50

16

0832221108
ref: 16

WASHER

€ 2.00

17

0834131039
ref: 17

KEY

€ 1.50

18

0214205128
ref: 18

SCREW

€ 1.50

19

0930909007
ref: 19

GROMMET

€ 2.50

20-1

0940718301
ref: 20-1
MODEL X/D

CLAMP

€ 5.50

20-2

0940718301
ref: 20-2
MODEL L

CLAMP

€ 5.50

20-3

0940714301
ref: 20-3
MODEL L

CLAMP

€ 5.50
