REAR BRAKE

GP100E 1983 (D) UNITED KINGDOM NORWAY (E02 E16)

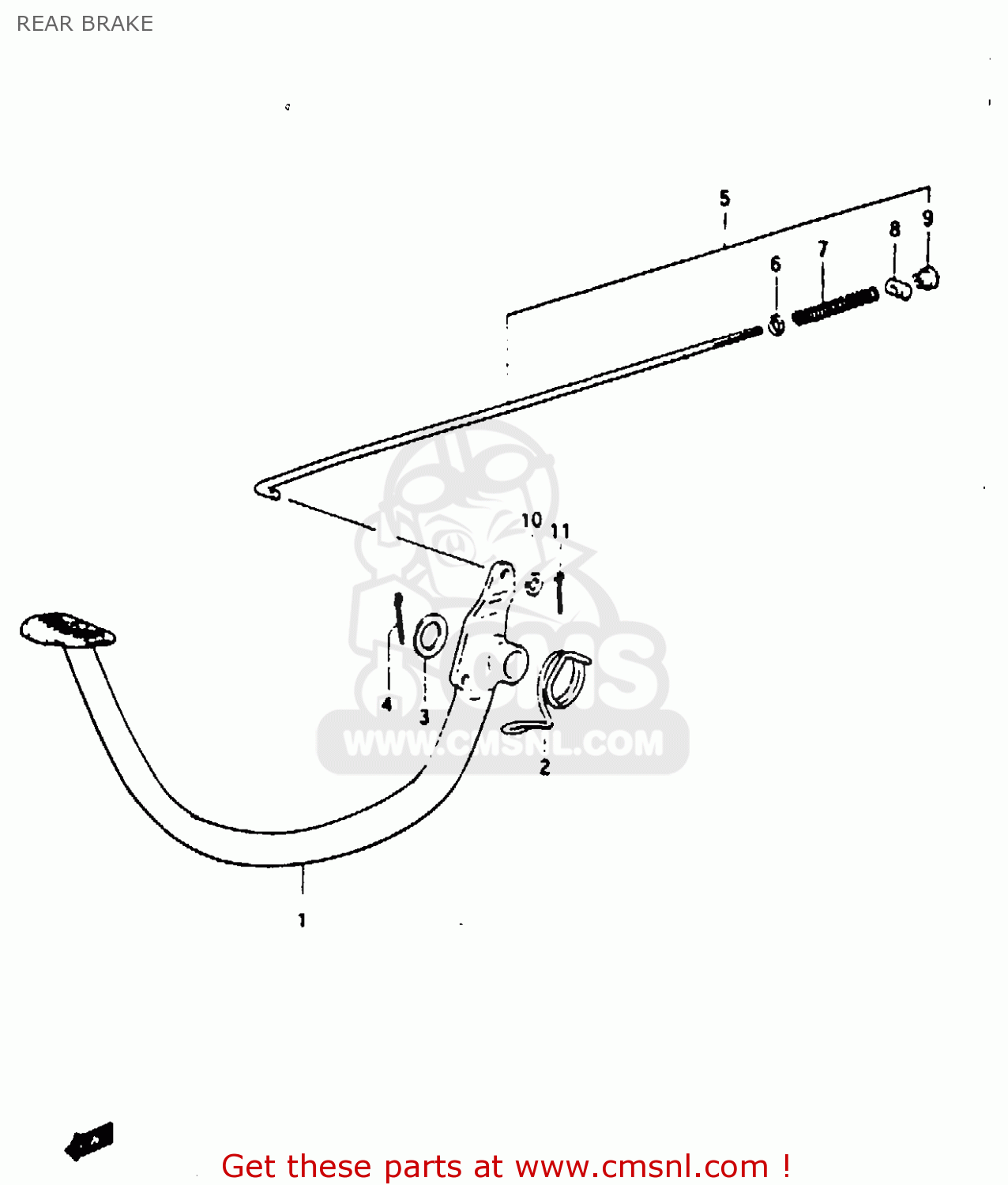

Rear brake diagram GP100E 1983 (D) UNITED KINGDOM NORWAY (E02 E16)

prices are in EUR

ref

part #

description

quantity

4311039600
ref: 1

PEDAL,BRAKE

€ 281.00

0944831013
ref: 2

SPRING

€ 3.00

0916015002
ref: 3

WASHER(15.5X26X2.3)

€ 2.00

0411130308
ref: 4

COTTER PIN

€ 1.50

4330039100
ref: 5

ROD ASSY, REAR BRAKE

€ 15.00

0832221067
ref: 6

WASHER

€ 2.00

0944009004
ref: 7

SPRING

€ 2.00

0920911002
ref: 8

PIN(11X18)

€ 2.00

9-1

0915006001
ref: 9-1
MODEL X TO 09150-060

NUT

€ 3.50

9-2

0915006009
ref: 9-2
MODEL D/L

NUT (6MM)

€ 3.50

0832221058
ref: 10

WASHER

€ 2.50

0411120208
ref: 11

PIN 20X20

€ 1.50
