FRAME - OIL TANK

GP125U 1978 (C) (E01 E02 E04 E06 E13 E14 E17 E18 E21 E22 E24 E32

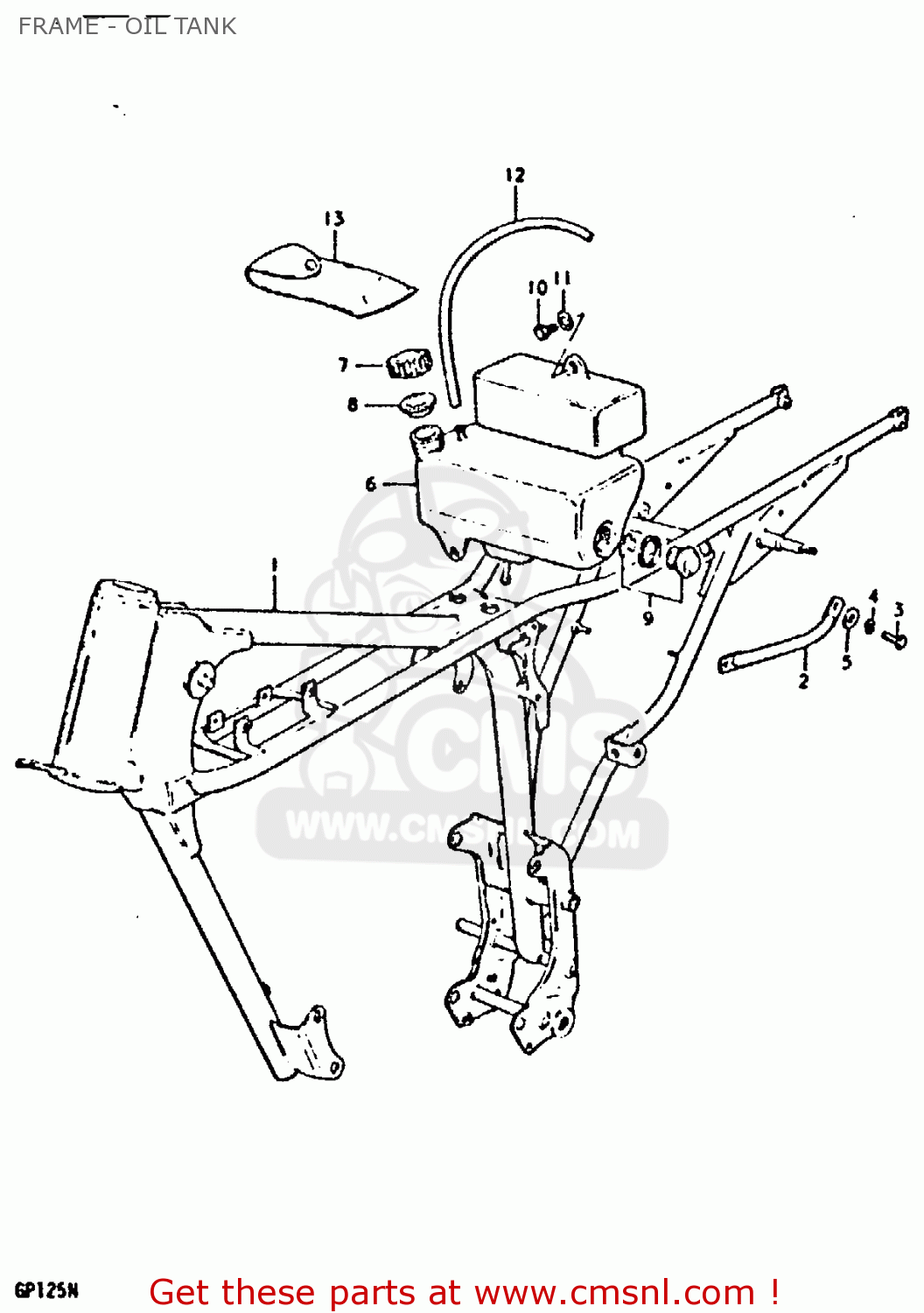

Frame - oil tank diagram GP125U 1978 (C) (E01 E02 E04 E06 E13 E14 E17 E18 E21 E22 E24 E32

prices are in EUR

ref

part #

description

quantity

1-2

4110039103019
ref: 1-2

FRAME (BLACK)

€ 0.00

4141139600
ref: 2

GRIP, FRAME HANDLE

€ 17.00

0110708128
ref: 3

BOLT 8X12

€ 2.50

0832121088
ref: 4

LOCK WASHER

€ 2.00

0832211088
ref: 5

WASHER

€ 2.00

4461139100
ref: 6

TANK,OIL

€ 48.50

4465105003
ref: 7

CAP,OIL TANK

€ 4.00

4466127000
ref: 8

GASKET,OIL TANK CAP (NAS)

€ 27.50

4460046810
ref: 9

LENS SET,OIL LEVEL

€ 6.50

0110706168
ref: 10

BOLT, UPPER

€ 3.00

0916006007
ref: 11

WASHER

€ 2.00

0934405005
ref: 12

HOSE

€ 10.00

13-1

0980000108
ref: 13-1
*

TOOL SET

€ 43.50

FRAME - OIL TANK

all assemblies
