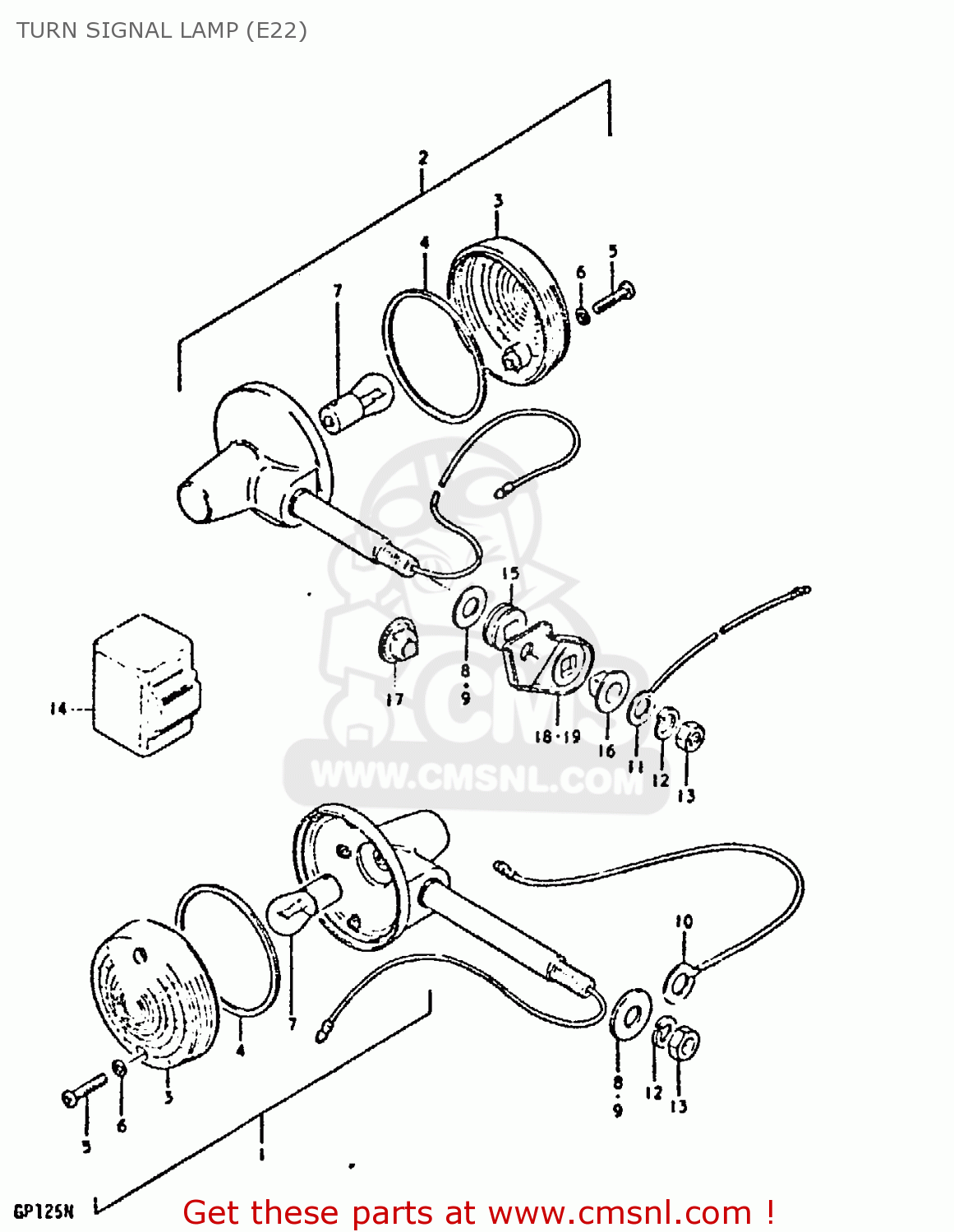

TURN SIGNAL LAMP (E22)

GP125U 1978 (C) (E01 E02 E04 E06 E13 E14 E17 E18 E21 E22 E24 E32

Turn signal lamp (e22) diagram GP125U 1978 (C) (E01 E02 E04 E06 E13 E14 E17 E18 E21 E22 E24 E32

prices are in EUR

ref

part #

description

quantity

1-1

3560139150999
ref: 1-1
TO 35601-34651-999

LAMP, FRONT TURN SIGNAL

€ 64.50

2-2

3560339151999
ref: 2-2
TO 35603-39152-999

LAMP, REAR TURN SIGNAL

€ 0.00

3561228620
ref: 3

LENS

€ 10.50

3561328620
ref: 4

GASKET (NAS)

€ 7.00

5-1

3562318490
ref: 5-1

SCREW

€ 0.00

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0947106033
ref: 7
EXECUTED LOCALLY

BULB (6V,21W)

€ 0.00

0916010006
ref: 8

WASHER (10.5X30X2.3)

€ 2.50

3861048620
ref: 14

RELAY, TURN SIGNAL

€ 122.50
