CYLINDER

GS1000 1982 (Z) USA (E03)

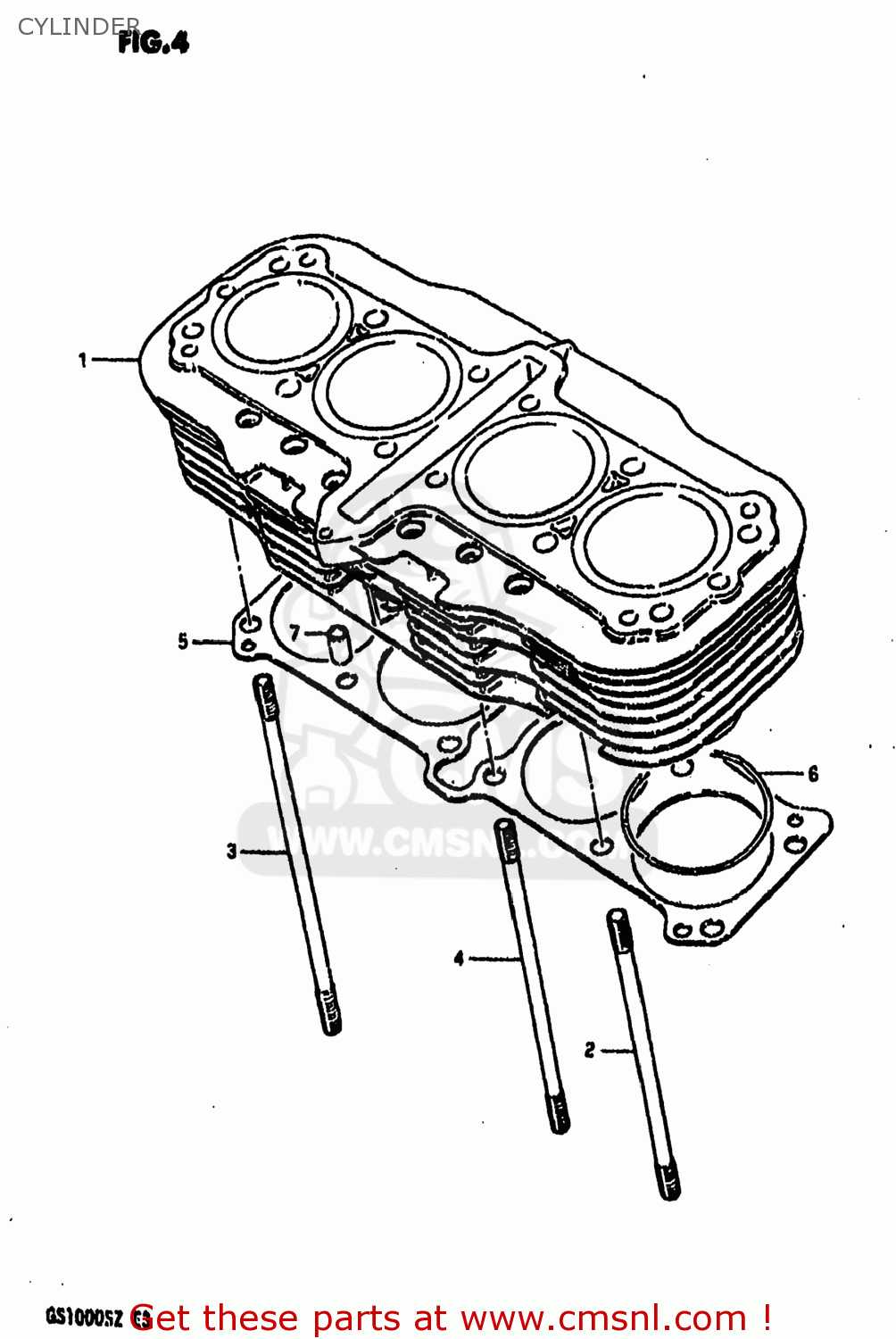

Cylinder diagram GS1000 1982 (Z) USA (E03)

CYLINDER GS1000 1982 (Z) USA (E03)

CYLINDER GS1000 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121049210
ref: 1

CYLINDER

€ 0.00

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3
09108-10112

STUD

€ 9.00

4

0910810030
ref: 4

BOLT,STUD

€ 7.50

5

1124149210
ref: 5
11241-49200-H17

GASKET (MCA)

€ 39.00

6

0928074002
ref: 6

O RING(D:2,ID:74)

€ 6.00

7

0920613006
ref: 7
09206-13017

PIN

€ 9.00
