RIGHT HANDLE SWITCH
GS1000 1982 (Z) USA (E03)

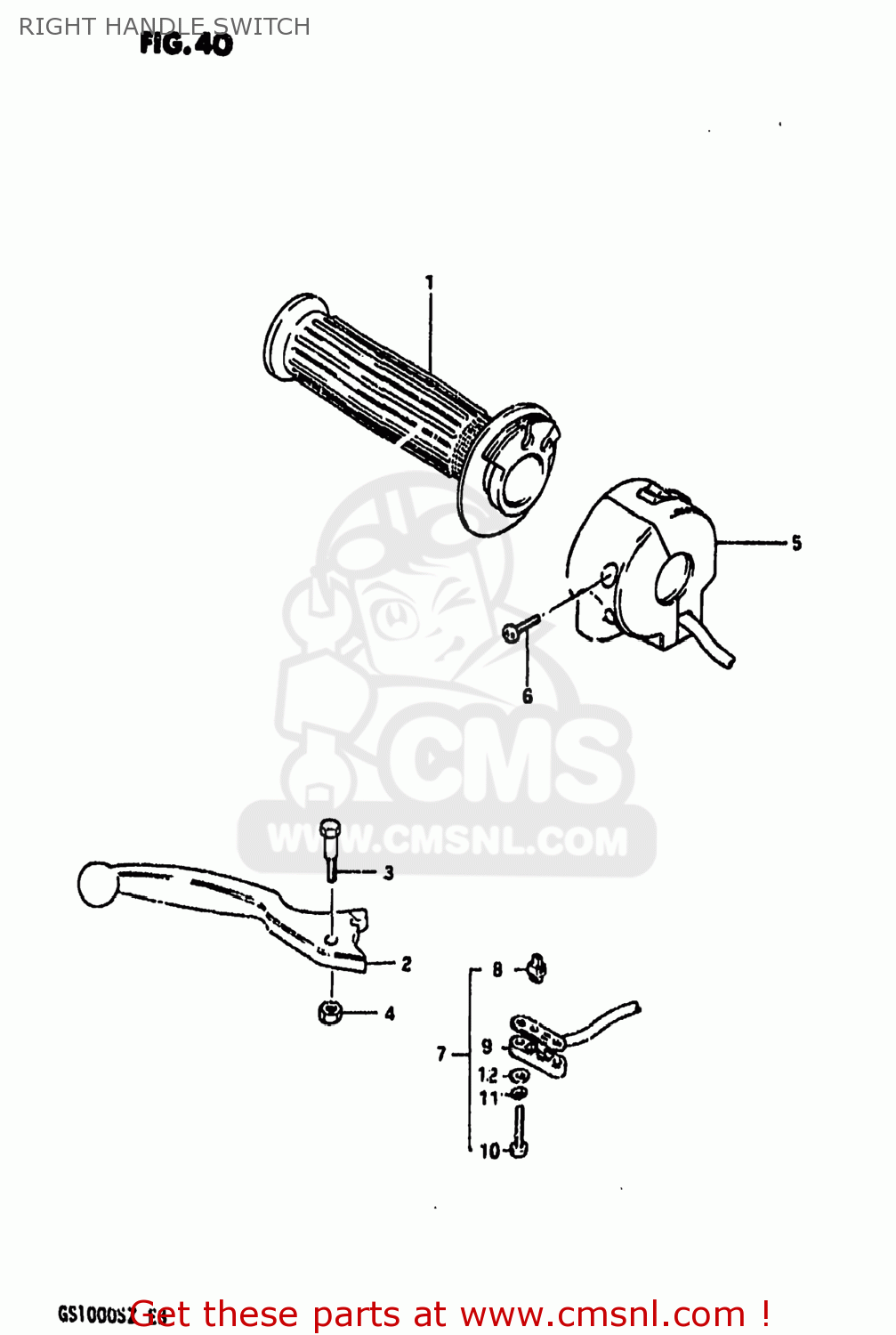

Right handle switch diagram GS1000 1982 (Z) USA (E03)
RIGHT HANDLE SWITCH GS1000 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711044100
ref: 1
57110-49501
GRIP,THROTTLE
€ 26.00
2
5742049101
ref: 2
LEVER,BRAKE
€ 36.50
3
5743118621
ref: 3
BOLT
€ 8.00
4
0831921063
ref: 4
08319-2106B
NUT
€ 2.50
5-1
3720047530
ref: 5-1
37200-49232
SWITCH ASSY,HANDLE,R
€ 121.00
5-2
3720047510
ref: 5-2
37200-49212
SWITCH ASSY, HANDLE RH
€ 164.50
6
3759149210
ref: 6
09125-05102
SCREW
€ 2.50
7
5746049300
ref: 7
57460-45500
SWITCH ASSEMBLY
€ 40.00
8
5746518601
ref: 8
CONTACT,SWITCH
€ 4.50
9
5748133010
ref: 9
COVER,FR BK TERMINAL BASE
€ 19.50
10
0912503105
ref: 10
09125-03105-XC0
SCREW
€ 2.50
11
0832121038
ref: 11
09162-03001
LOCK WASHER
€ 1.50
12
0832221038
ref: 12
08322-01037
WASHER
€ 2.00
13
3731249000
ref: 13
57382-47500
SPRING,STARTER BUTTON
€ 1.50
14
3731249000
ref: 14
57382-47500
SPRING,STARTER BUTTON
€ 1.50
15
3731349000
ref: 15
CONTACT,STARTER BUTTON
€ 0.00
