FRAME
GS1000S 1980 (T) USA (E03)

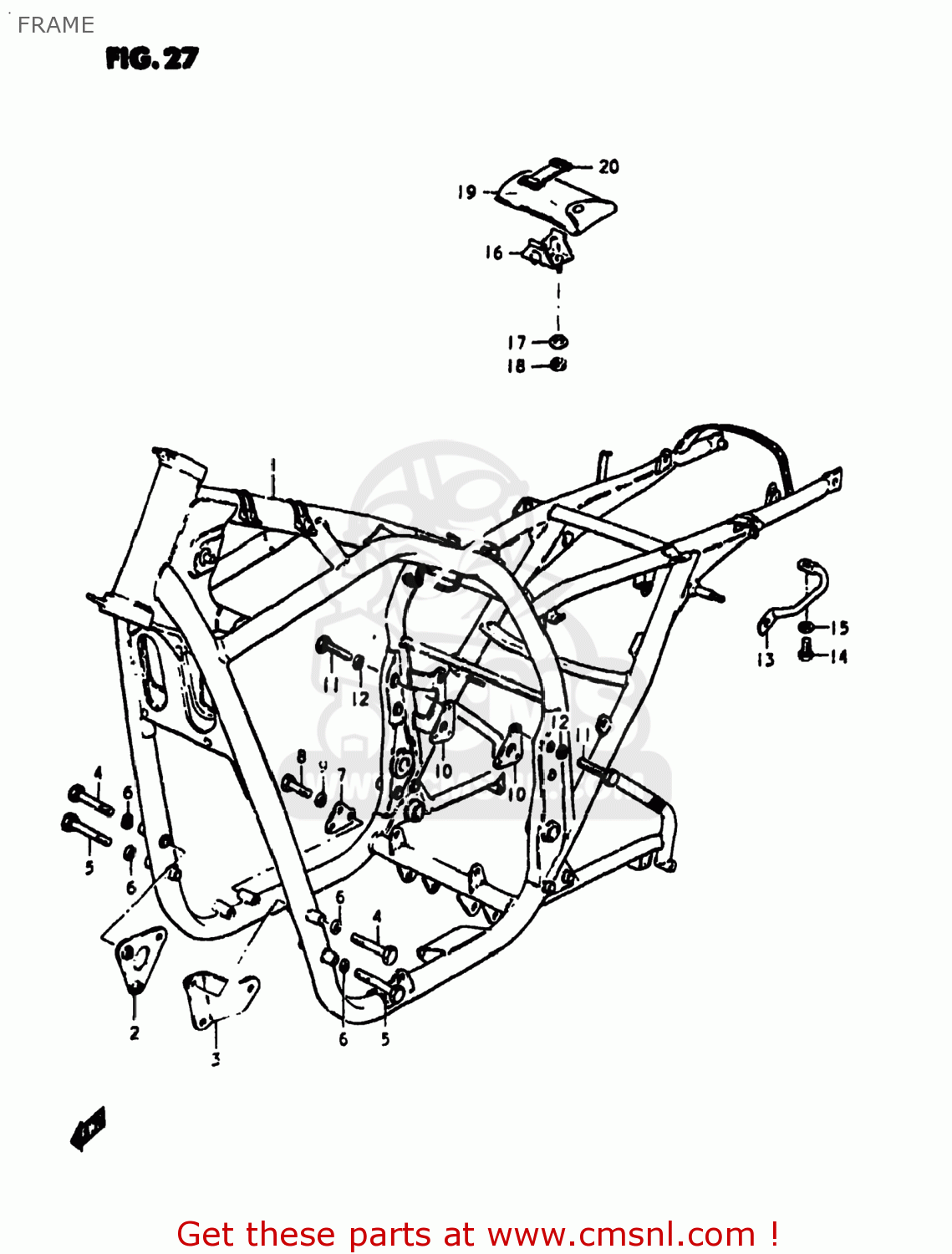

Frame diagram GS1000S 1980 (T) USA (E03)
FRAME GS1000S 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110049050019
ref: 1
41100-49051-019
FRAME
€ 584.00
2
4191049000019
ref: 2
PLATE,ENGINE MOUNTING
€ 14.50
3
4199049000019
ref: 3
PLATE,ENGINE MOUNTING
€ 18.50
4
0110708658
ref: 4
01500-0865B
BOLT
€ 3.00
5
0110708708
ref: 5
01500-0870B
BOLT
€ 2.50
6
0832121088
ref: 6
08321-01087
LOCK WASHER
€ 2.00
7
4192149000019
ref: 7
41921-49000-13L
PLATE,ENGINE MOUNTING
€ 30.00
8
0110708168
ref: 8
01500-0816B
BOLT
€ 2.00
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10
4194049000019
ref: 10
41940-49000-13L
PLATE,ENGINE MOUNTING
€ 60.00
11
0110708358
ref: 11
01500-0835B
BOLT
€ 3.50
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
4161049000
ref: 13
41610-34200
GRIP,FRAME
€ 38.50
14
0110708168
ref: 14
01500-0816B
BOLT
€ 2.00
15
0832211088
ref: 15
08322-01087
WASHER
€ 2.00
16
4155049000
ref: 16
HOLDER,TOOL
€ 27.50
17
0916906011
ref: 17
WASHER
€ 6.50
18
0831011068
ref: 18
08310-00067
NUT
€ 2.50
19
0980000192
ref: 19
TOOL SET
€ 50.00
20
0946200072
ref: 20
BAND
€ 3.50
