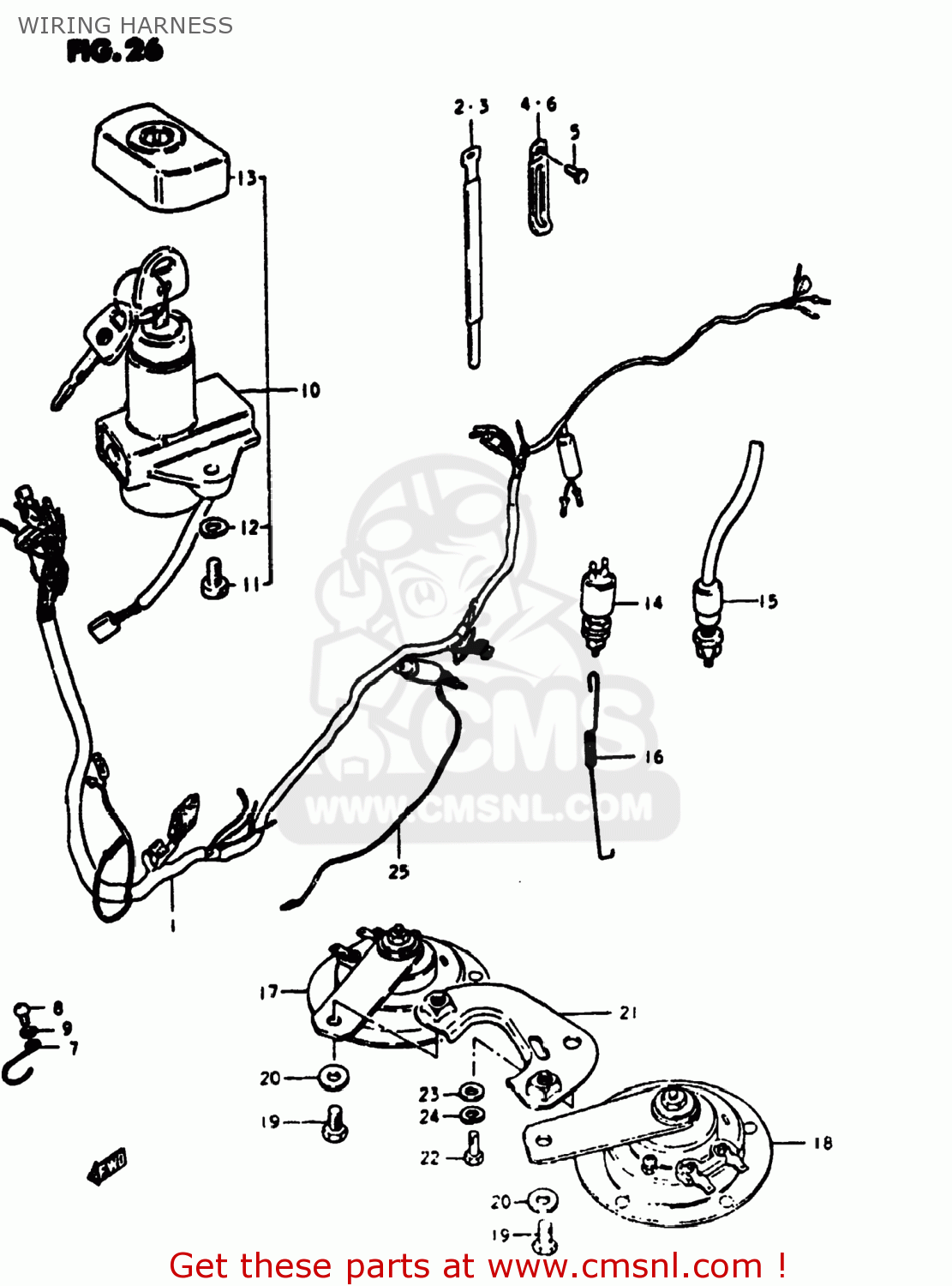

WIRING HARNESS

ref

part #

description

quantity

1-1

3661049080
ref: 1-1
36610-49081

HARNESS,WIRING

€ 223.00

1-2

3661049081
ref: 1-2

HARNESS,WIRING

€ 223.00

2

0940712402
ref: 2

CLAMP(L:120)

€ 3.00

3

0940718301
ref: 3

CLAMP

€ 6.00

4

0940406414
ref: 4
09404-06433

CLAMP

€ 3.00

5

0110706108
ref: 5
01500-06107

BOLT

€ 2.00

6

0940408401
ref: 6
09404-08420

CLAMP

€ 3.50

7

3661944000
ref: 7
36619-44002

GUIDE,WIRING HARNESS

€ 2.50

8

0211206128
ref: 8
02112-06127

SCREW 6X12

€ 2.00

9

0832211068
ref: 9
08322-0106B

WASHER 6MM

€ 2.00

10

3710049011
ref: 10
37100-49012

LOCK ASSEMBLY,STEERING

€ 132.00

11

3715247010
ref: 11
07130-0616B

BOLT

€ 3.00

12

0832121068
ref: 12
08321-01067

LOCK WASHER

€ 2.50

13

3715549011
ref: 13

CAP,IGNITION SWITCH

€ 9.00

14

3774004571
ref: 14
37740-48071

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

15

3761053011
ref: 15

SWITCH ASSY,BRAKE LAMP

€ 34.50

16

0944306006
ref: 16

SPRING

€ 3.50

17

3850249010
ref: 17
38502-49001

HORN ASSEMBLY,LOW PITCH

€ 77.00

18

3850149010
ref: 18
38501-47001

HORN ASSEMBLY,HIGH PITCH

€ 82.50

19

0110708128
ref: 19
01500-08127

BOLT 8X12

€ 2.50

20

0832211088
ref: 20
08322-01087

WASHER

€ 2.00

21

3859049002
ref: 21

BRACKET,HORN

€ 3.50

22

0910008067
ref: 22
09100-08143

BOLT

€ 2.50

23

0832211088
ref: 23
08322-01087

WASHER

€ 2.00

24

0832121088
ref: 24
08321-01087

LOCK WASHER

€ 2.00

25

3685249000
ref: 25

WIRE

€ 9.50
