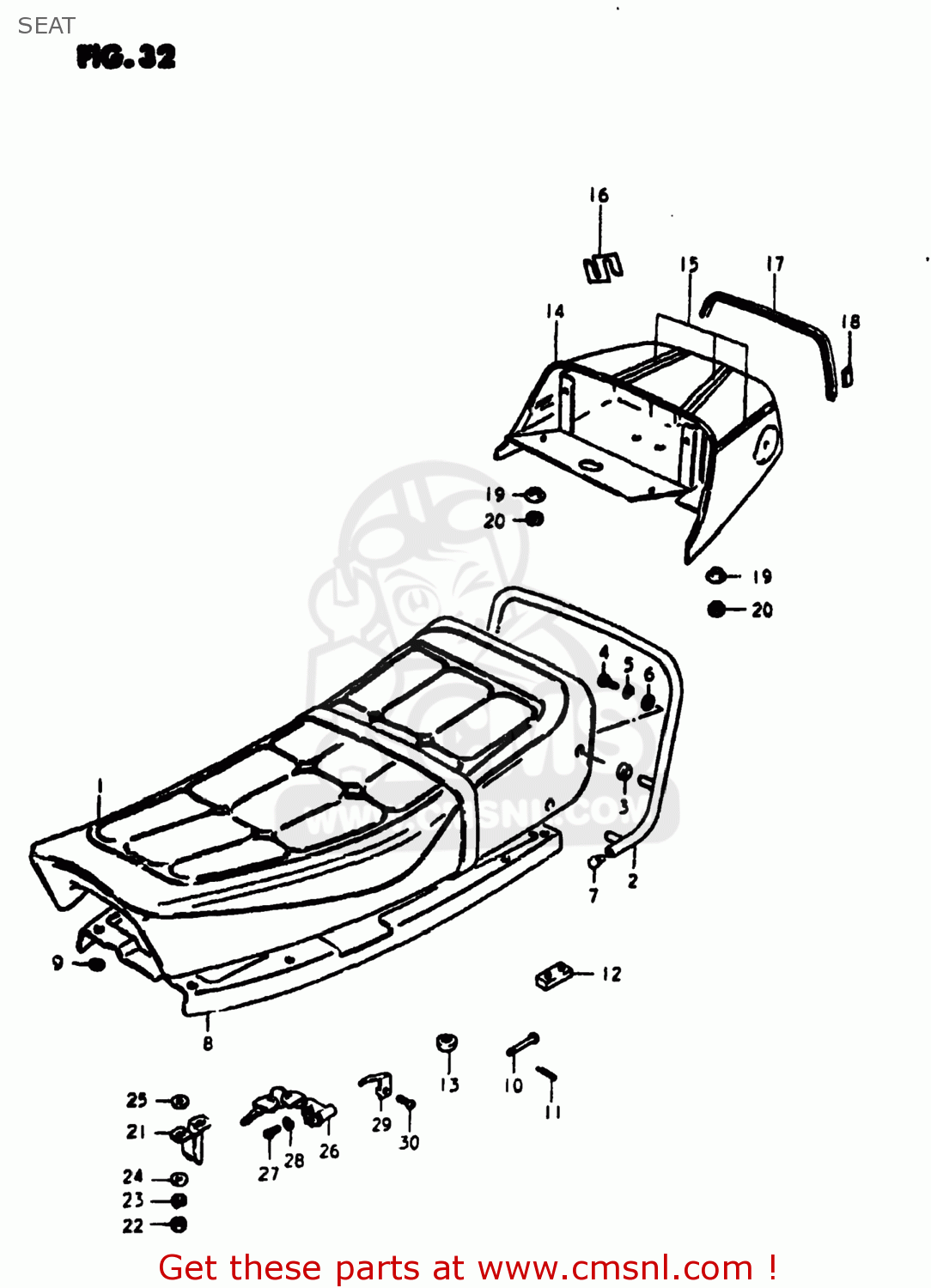

SEAT

ref

part #

description

quantity

1

451004907040N
ref: 1
45100-49070-48G

SEAT ASSEMBLY

€ 180.00

2

4621149010
ref: 2
46211-49000

HANDLE,PILLION RIDER

€ 59.50

3

4621249000
ref: 3

CUSHION

€ 15.00

4

0110708208
ref: 4
01500-08207

BOLT

€ 3.00

5

0832121088
ref: 5
08321-01087

LOCK WASHER

€ 2.00

6

0832211088
ref: 6
08322-01087

WASHER

€ 2.00

7

4621349000
ref: 7

END,SHEET HANDLE

€ 5.50

8

4519149001189
ref: 8
45191-49001

MOLDING,SEAT

€ 31.00

9

0914805006
ref: 9

NUT

€ 1.50

10

0920006018
ref: 10

PIN

€ 2.00

11

0411120158
ref: 11
04111-2015A

PIN

€ 1.50

12

0932108006
ref: 12

CUSHION

€ 3.00

13

0932110001
ref: 13

CUSHION

€ 2.50

14

455004905068U
ref: 14
45510-49002

COVER SET,SEAT TAIL

€ 164.50

15

681014989162R
ref: 15

TAPE SET

€ 14.50

16

681664905007G
ref: 16

EMBLEM,SEAT TAIL COVER

€ 7.00

17

4552249000
ref: 17

GROMMET

€ 12.00

18

4552349000
ref: 18

CLIP,SEAT TAIL COVER M

€ 3.00

19

0916906016
ref: 19

WASHER

€ 1.50

20

0831921068
ref: 20
08319-2106A

NUT 6MM

€ 2.00

21

4521347000
ref: 21

STRIKER,SEAT LOCK

€ 7.00

22

0831011068
ref: 22
08310-00067

NUT

€ 2.50

23

0832121068
ref: 23
08321-01067

LOCK WASHER

€ 2.50

24

0832221068
ref: 24
08322-01067

WASHER

€ 2.00

25

0916006027
ref: 25
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

26

9570045813
ref: 26

LOCK ASSY,SEAT

€ 59.50

27

0211205128
ref: 27
02112-05127

SCREW

€ 2.50

28

0832121058
ref: 28
08321-0105A

LOCK WASHER

€ 2.00

29

9572245000
ref: 29

SPRING,HELMET HOLDER

€ 8.50

30

0211205088
ref: 30
02112-05087

SCREW

€ 2.00
