CYLINDER

GS1100E 1980 (T) USA (E03)

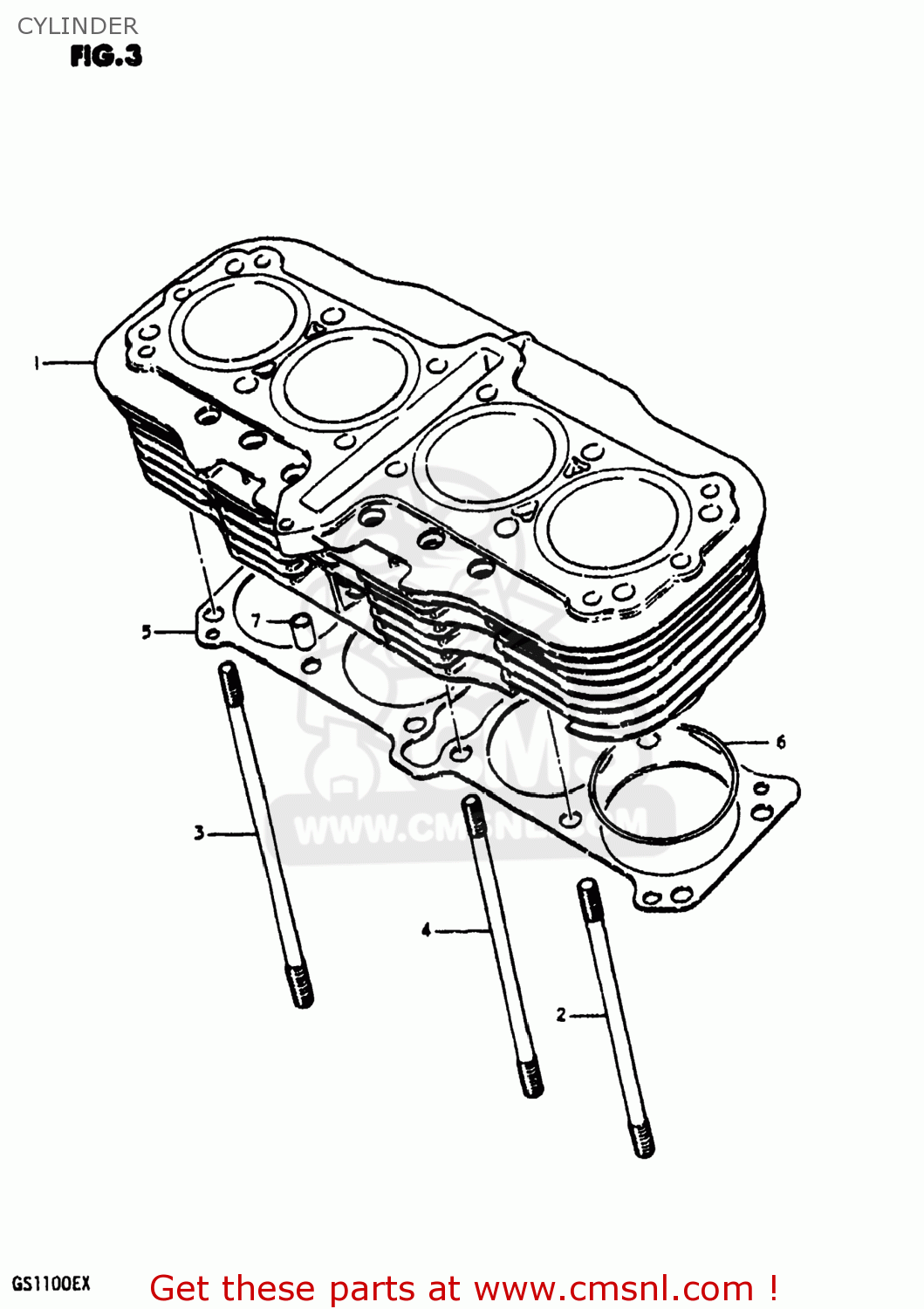

Cylinder diagram GS1100E 1980 (T) USA (E03)

CYLINDER GS1100E 1980 (T) USA (E03)

CYLINDER GS1100E 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121049200
ref: 1
11210-49220

CYLINDER

€ 974.50

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3
09108-10112

STUD

€ 9.00

4

0910810030
ref: 4

BOLT,STUD

€ 7.50

5

1124149200
ref: 5
11241-49200-H17

GASKET,CYLINDER (MCA)

€ 39.00

6

0928074002
ref: 6

O RING(D:2,ID:74)

€ 6.00

7

0920613006
ref: 7
09206-13017

PIN

€ 9.00
