STARTER CLUTCH

GS1100E 1980 (T) USA (E03)

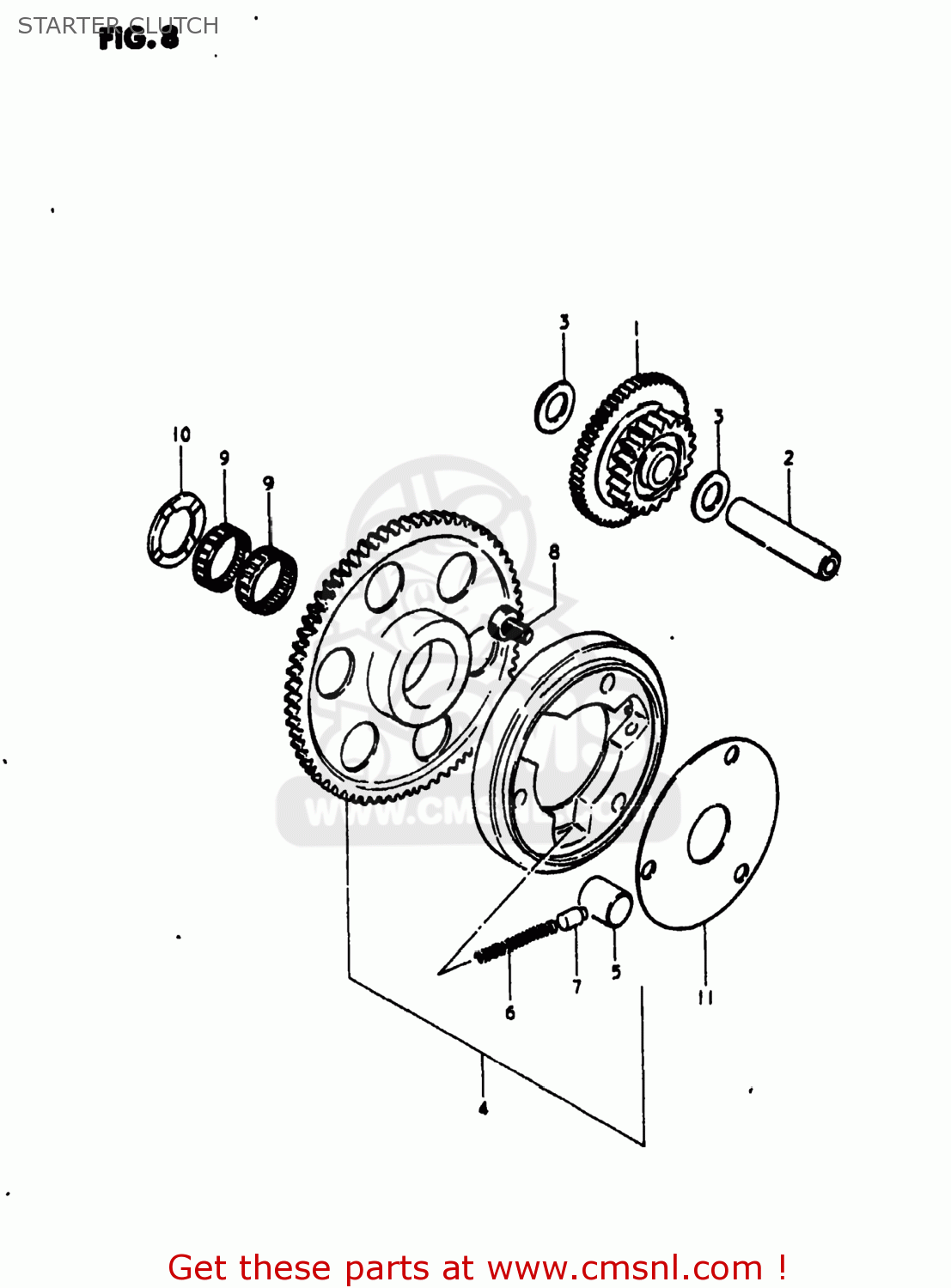

Starter clutch diagram GS1100E 1980 (T) USA (E03)

STARTER CLUTCH GS1100E 1980 (T) USA (E03)

STARTER CLUTCH GS1100E 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261149201
ref: 1
12611-49202

GEAR,STARTER IDLE

€ 68.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

0916013003
ref: 3

WASHER(13.3X25X0.85)

€ 2.50

4

1260049822
ref: 4
12600-49826

CLUTCH SET,STARTER

€ 309.00

5

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

6

0944004015
ref: 6

SPRING

€ 2.50

7

1263331000
ref: 7

PIECE,PUSH

€ 9.00

8

0910608006
ref: 8
07130-0816A

BOLT

€ 3.00

9

0926325029
ref: 9
09263-25008

BEARING

€ 17.00

10

0916025019
ref: 10

WASHER(25X38X2.5)

€ 10.00

11

1264949200
ref: 11

SHIM,STARTER CLUTCH HUB

€ 11.00
