REAR WHEEL
GS1100E 1980 (T) USA (E03)

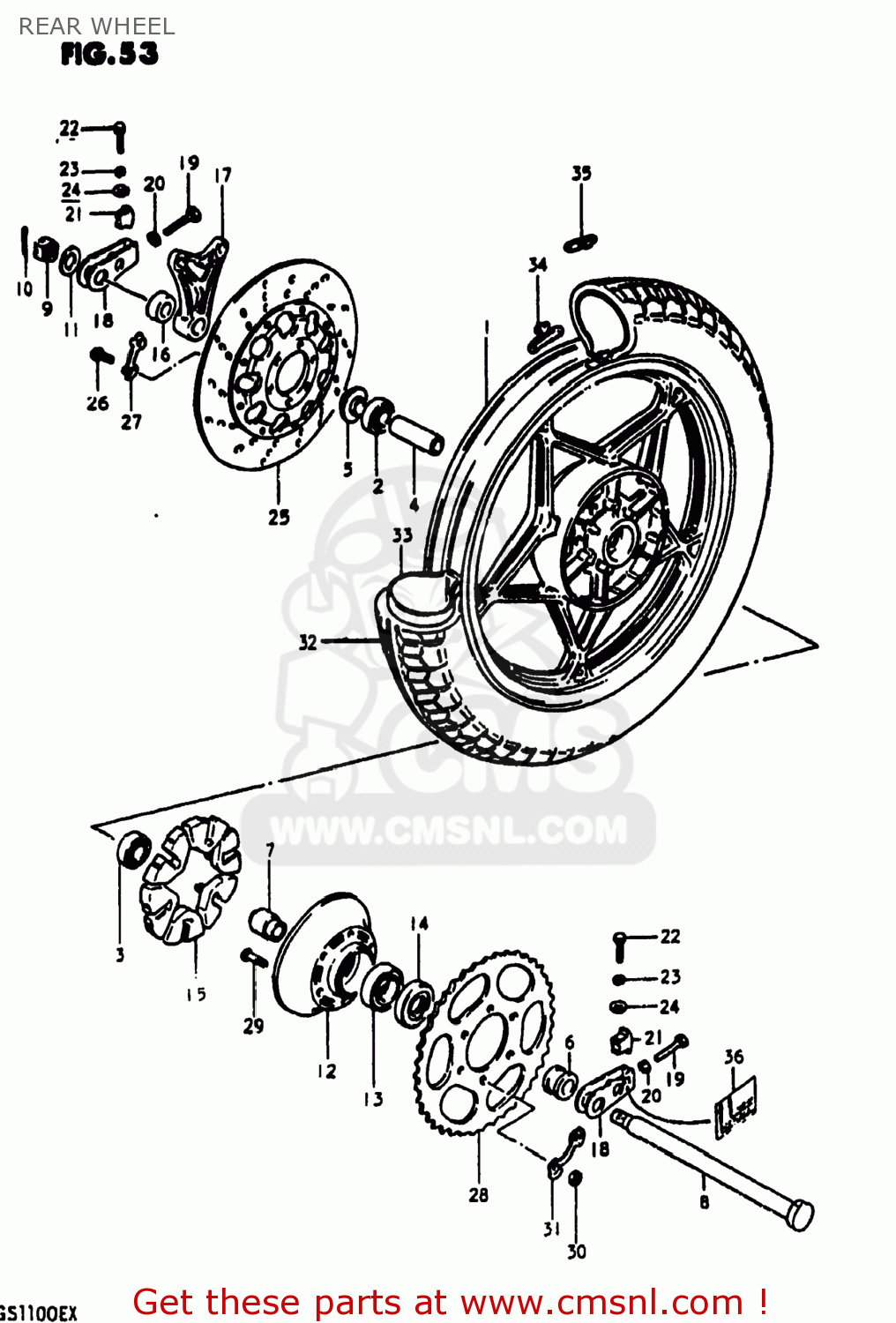

Rear wheel diagram GS1100E 1980 (T) USA (E03)
REAR WHEEL GS1100E 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411149020
ref: 1-1
64111-49001-12U
WHEEL,REAR
€ 627.00
1-1
6411149020
ref: 1-1
64111-49001-12U
WHEEL,REAR
€ 627.00
1-2
6411149021
ref: 1-2
64111-49001-12U
WHEEL,REAR
€ 627.00
1-2
6411149021
ref: 1-2
64111-49001-12U
WHEEL,REAR
€ 627.00
2
0813362047
ref: 2
BEARING WHEEL REAR(20X47X14)
€ 22.50
3
0815362047
ref: 3
09262-20042
BEARING, LH
€ 21.00
4
0918020062
ref: 4
SPACER(20.5X28X88)
€ 11.50
5
6474045001
ref: 5
64740-45002
SPACER,REAR AXLE
€ 15.00
6
0918020054
ref: 6
SPACER(20X33X28.3)
€ 13.00
7
6473331000
ref: 7
64733-3100V
SPACER,REAR HUB BEARING
€ 20.00
8
6471149000
ref: 8
64711-4900V
AXLE,REAR
€ 59.00
9
0831431188
ref: 9
08314-3118A
NUT 18MM
€ 5.00
10
0411140308
ref: 10
04111-4030A
PIN,COTTER
€ 1.50
11
0916019008
ref: 11
WASHER(19X34X4)
€ 3.00
12
6461131001
ref: 12
64611-31003
DRUM,REAR SPROCKET MOUNT
€ 140.00
13
0811363050
ref: 13
09262-25073
BEARING
€ 21.50
14
0928533001
ref: 14
SEAL,OIL(33X62X7)
€ 20.00
15
6465131000
ref: 15
64651-31001
ABSORBER,REAR HUB SHOCK
€ 9.50
16
0918020060
ref: 16
SPACER(20X38X12)
€ 6.50
17
6972147011
ref: 17
BRACKET,RR,CALIPER
€ 29.00
18-1
6141031000
ref: 18-1
61410-31001
ADJUSTER,CHAIN
€ 50.00
18-2
6141031001
ref: 18-2
ADJUSTER,CHAIN
€ 50.00
19
0910408006
ref: 19
09104-08034
BOLT
€ 3.00
20
0831012088
ref: 20
08310-00087
NUT
€ 2.00
21
6143331000
ref: 21
61433-3100V
SUPPORTER,CHAIN ADJUST
€ 22.50
22
0110708608
ref: 22
01500-0860B
BOLT
€ 2.50
23
0832121088
ref: 23
08321-01087
LOCK WASHER
€ 2.00
24
0832211088
ref: 24
08322-01087
WASHER
€ 2.00
25
5921018450
ref: 25
DISC,RR BRAKE
€ 446.00
26
0910008094
ref: 26
BOLT(8X30)
€ 2.50
27
0916908016
ref: 27
WASHER
€ 3.50
28
6451149001
ref: 28
64511-49002
SPROCKET,REAR
€ 114.00
29
0911910002
ref: 29
09105-10001
BOLT
€ 3.50
30
0831012108
ref: 30
08310-00107
NUT
€ 2.50
31
0916910007
ref: 31
WASHER
€ 7.50
32
6510049230
ref: 32
TIRE 4.50V17
€ 258.00
33
6520049010
ref: 33
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
34-1
5541147001
ref: 34-1
BALANCER,WHEEL
€ 4.00
34-2
5541247001
ref: 34-2
BALANCER,WHEEL
€ 3.50
35-1
5541145100
ref: 35-1
55412-17G00
BALANCER,WHEEL
€ 7.00
35-2
5541245100
ref: 35-2
BALANCER,WHEEL
€ 4.00
36
6837749000
ref: 36
LABEL,CHAIN WEAR INDICATOR
€ 3.50
