AIR CLEANER
GS1150EF 1984 (E) USA (E03)

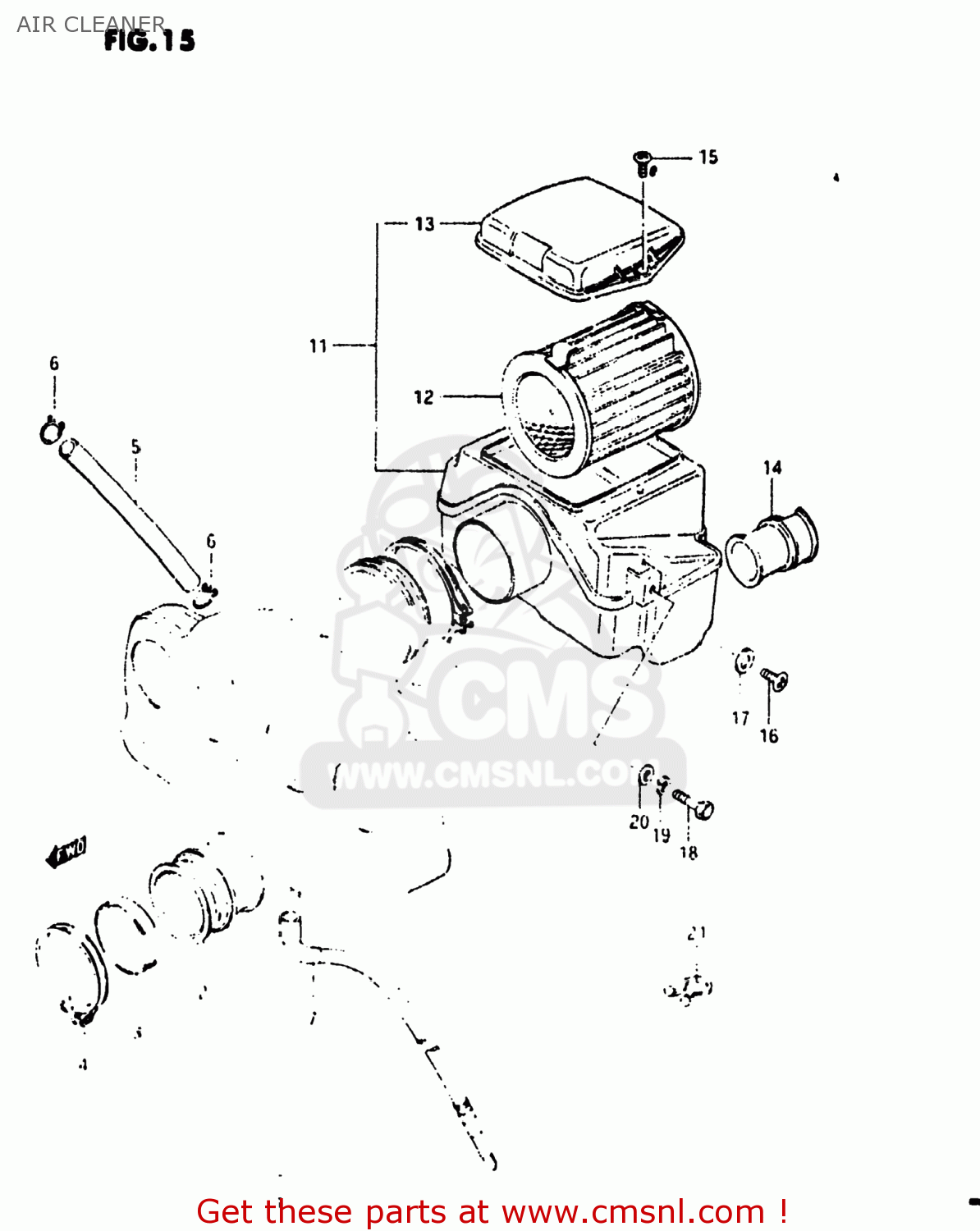

Air cleaner diagram GS1150EF 1984 (E) USA (E03)
AIR CLEANER GS1150EF 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370100A00
ref: 1
CHAMBER ASSEMBLY,AIR CLEANER
€ 104.00
2
1388149021
ref: 2
TUBE,AIR CLEANER OUTLET
€ 16.00
3
1388547030
ref: 3
RING,CARBURETOR AIR INLET HOSE
€ 8.00
4
0940264207
ref: 4
09402-64203
CLAMP
€ 6.00
5
1385400240
ref: 5
HOSE,BREATHER
€ 0.00
6
1382837300
ref: 6
09401-16401
CLIP
€ 3.00
7
1387021264
ref: 7
13870-21308
DRAIN TUBE
€ 16.50
8
1382400A00
ref: 8
09401-13409
CLIP
€ 2.50
9
1373900A00
ref: 9
TUBE,JOINT
€ 12.00
10
0940280207
ref: 10
CLAMP
€ 7.00
11
1370200A00
ref: 11
CASE ASSEMBLY,AIR CLEANER
€ 123.00
12
1378000A00
ref: 12
FILTER,AIR CLEANER
€ 30.50
13
1374000A00
ref: 13
CAP,AIR CLEANER
€ 12.50
14
1389100A00
ref: 14
TUBE,INLET
€ 8.00
15
0214205125
ref: 15
02142-0512A
SCREW M5X12 DIN 7985/N
€ 1.50
16
0211206168
ref: 16
02112-06167
SCREW
€ 2.50
17
0916006007
ref: 17
09160-06084
WASHER
€ 2.00
18
0110706168
ref: 18
01500-06167
BOLT, UPPER
€ 3.00
19
0832121068
ref: 19
08321-01067
LOCK WASHER
€ 2.50
20
0832221068
ref: 20
08322-01067
WASHER
€ 2.00
21
0940800031
ref: 21
CLIP
€ 1.50
