HEADLAMP (GS1150ES3/ESE/ESF)
GS1150EF 1984 (E) USA (E03)

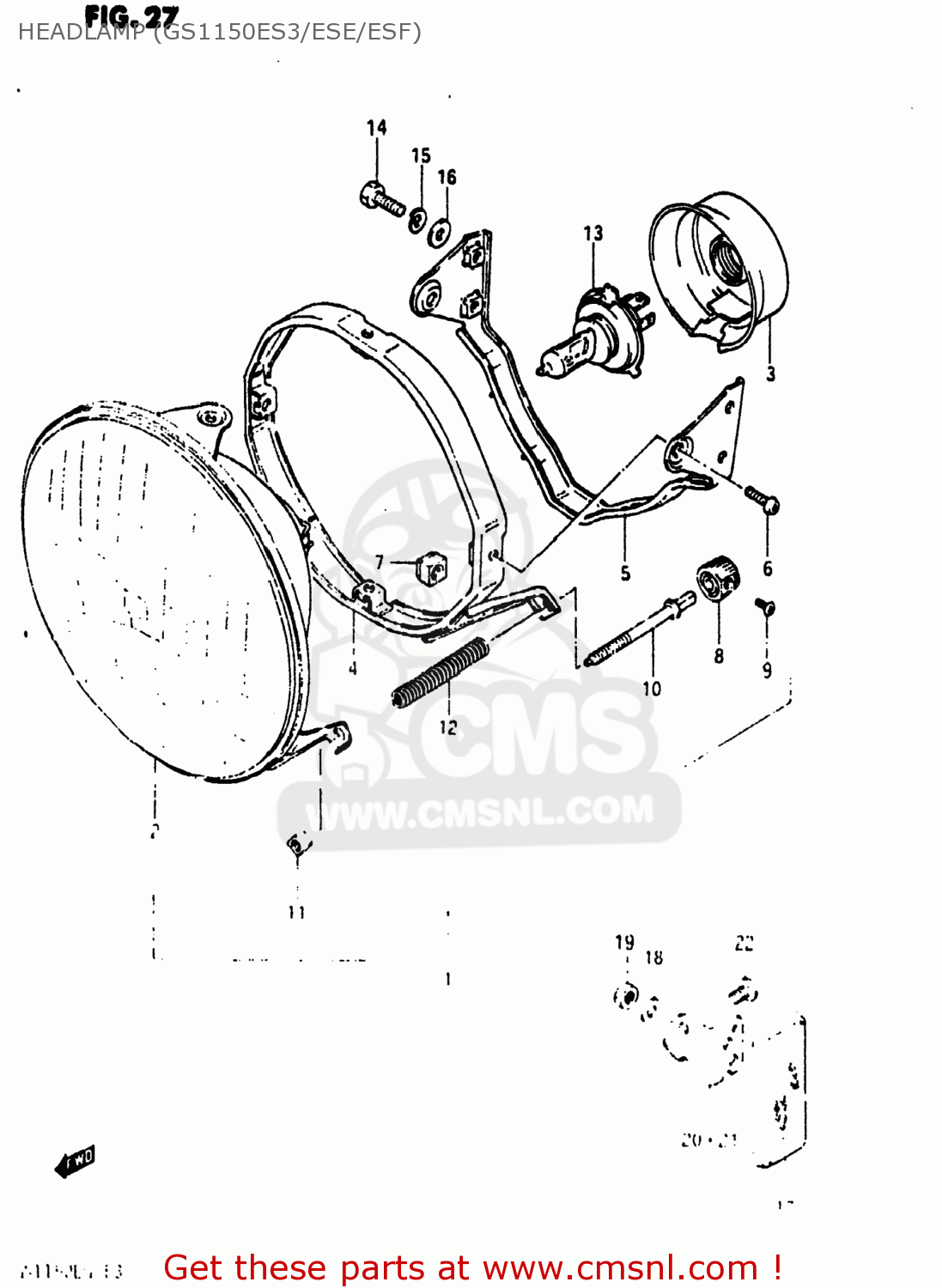

Headlamp (gs1150es3/ese/esf) diagram GS1150EF 1984 (E) USA (E03)
HEADLAMP (GS1150ES3/ESE/ESF) GS1150EF 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510000A60999
ref: 1
LAMP ASSEMBLY,HEAD
€ 0.00
2
3512100A60
ref: 2
UNIT,HEADLAMP
€ 0.00
3
3517349200
ref: 3
35173-38A00
COVER,HEADLAMP SOCKET
€ 12.50
4
3513000A60
ref: 4
RING,MOUNTING
€ 36.00
5
3514100A60
ref: 5
HOUSING,LAMP UNIT
€ 29.00
6
0211205125
ref: 6
02112-0512A
SCREW
€ 1.50
7
3513545900
ref: 7
NUT
€ 2.50
8
3516149320
ref: 8
35136-49331
KNOB,ADJUSTER
€ 6.00
9
0211203108
ref: 9
02112-03107
SCREW
€ 1.50
10
3515149500
ref: 10
35151-49320
SCREW,HEADLAMP ADJUST
€ 16.50
11
3515249500
ref: 11
NUT,HEADLAMP ADJUSTER
€ 2.50
12
3515449500
ref: 12
SPRING
€ 4.50
13
0947112060
ref: 13
BULB(12V60/55W,H4)
€ 8.00
14
0110706165
ref: 14
01500-0616A
BOLT 6X16
€ 2.00
15
0832121064
ref: 15
08321-0106A
WASHER,LOCK
€ 2.00
16
0832221064
ref: 16
08322-0106B
WASHER
€ 2.00
17
3595043431
ref: 17
REFLEX REFLECTOR,FR SIDE
€ 12.00
18
0832221055
ref: 18
08322-0105A
WASHER,5MM
€ 2.50
19
0831012055
ref: 19
08310-0005A
NUT ,5MM
€ 2.50
20
3595600A00
ref: 20
BRACKET,FRONT SIDE REFLECTOR
€ 0.00
21
3595700A00
ref: 21
BRACKET,FRONT SIDE REFLECTOR
€ 0.00
22
0214205085
ref: 22
02142-0508A
SCREW
€ 2.00
