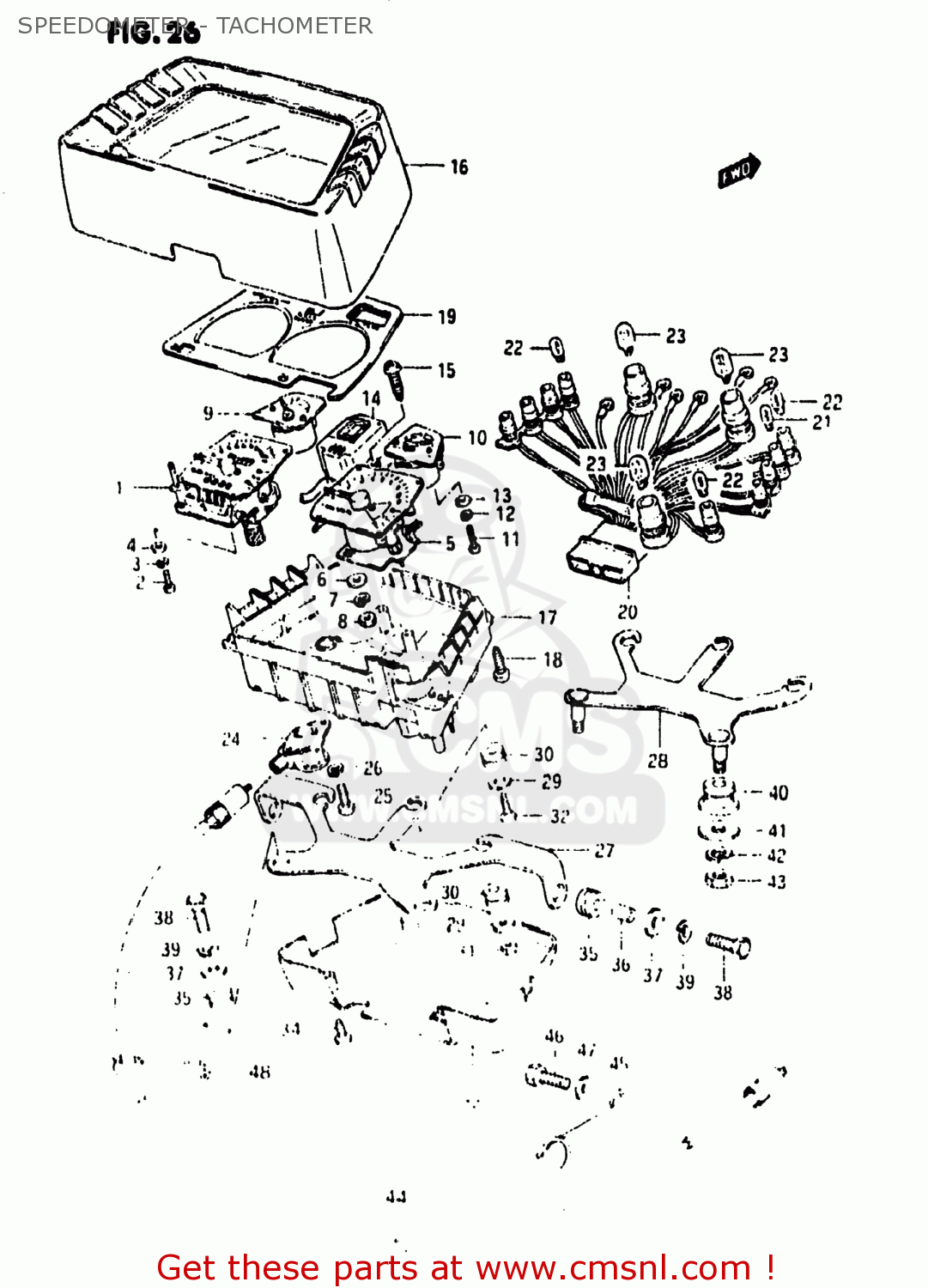

SPEEDOMETER - TACHOMETER - GS1150EF 1984 (E) USA (E03)

ref

part #

description

quantity

1

3412000A31
ref: 1

METER,SPEEDOMETER (KM/MPH)

€ 374.50

2

0211203106
ref: 2
02112-0310B

SCREW

€ 1.50

3

0832121036
ref: 3
08321-2103B

LOCK WASHER

€ 1.50

4

0832221036
ref: 4
08322-0103B

WASHER 3.3X8X0

€ 1.50

5

3422000A31
ref: 5
34220-00A11

TACHOMETER

€ 278.50

6

0832221046
ref: 6
08322-0104A

WASHER

€ 5.00

7

0832131046
ref: 7

LOCK WASHER

€ 2.00

8

0831022048
ref: 8
08310-00047

NUT 4MM

€ 2.00

9

3432000A11
ref: 9

METER,FUEL

€ 95.50

10

3473000A31
ref: 10

METER,OIL TEMPERATURE

€ 0.00

11

0211203126
ref: 11
02112-0312B

SCREW

€ 2.50

12

0832121036
ref: 12
08321-2103B

LOCK WASHER

€ 1.50

13

0832221036
ref: 13
08322-0103B

WASHER 3.3X8X0

€ 1.50

14

3645049910
ref: 14

INDICATOR ASSEMBLY,GEAR POSITION

€ 220.00

15

0321204109
ref: 15
03211-0410B

SCREW

€ 2.00

16-1

3415010830
ref: 16-1

HOOD SET

€ 0.00

16-2

3415000A10
ref: 16-2

HOOD,METER

€ 120.00

17

3411100A10
ref: 17

CASE,METER

€ 78.50

18

0321204109
ref: 18
03211-0410B

SCREW

€ 2.00

19

3415300A10
ref: 19

PLATE,METER WINDOW

€ 35.00

20

3417000A10
ref: 20

SOCKET UNIT,METER

€ 97.00

21

0947112100
ref: 21

BULB(12V1.7W,WB372,T7)

€ 2.00

22

0947112085
ref: 22

BULB(12V3W,WB371,T7)

€ 3.00

23

0947112082
ref: 23

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

24

3413149300
ref: 24

GEAR BOX,SPEEDOMETER

€ 197.50

25

0211204106
ref: 25
02112-0410A

SCREWM4X0.7X10

€ 1.00

26

0832121046
ref: 26
08321-0104A

LOCK WASHER

€ 2.00

27

3495010A10
ref: 27
34950-10A11

BRACKET,METER

€ 38.00

28

3495000A10
ref: 28

BRACKET,METER

€ 45.50

29

3418149300
ref: 29
09160-04026

WASHER,COMBINATION METER

€ 1.50

30

3495528010
ref: 30

CUSHION

€ 4.00

31

0831022048
ref: 31
08310-00047

NUT 4MM

€ 2.00

32

0314204169
ref: 32
03141-0416A

SCREW

€ 2.00

33-1

3419310A10
ref: 33-1

COVER,METER

€ 48.50

33-2

3419300A10
ref: 33-2

COVER,METER,UNDER

€ 54.50

34

0311204125
ref: 34
03111-0412A

SCREW

€ 1.50

35

0932009016
ref: 35

CUSHION

€ 2.50

36

0918006011
ref: 36
09180-06263

SPACER (6.1X9X9)

€ 2.00

37

0916006006
ref: 37
09160-06084

WASHER

€ 2.00

38

0110706206
ref: 38
01500-0620A

BOLT,M6X1X20

€ 2.00

39

0832121066
ref: 39
08321-0106A

WASHER,LOCK

€ 2.00

40

3495631001
ref: 40

CUSHION,METER BRACKET

€ 4.50

41

0916008057
ref: 41
09160-08135

WASHER (8.5X20X1.6)

€ 2.00

42

0832121084
ref: 42
08321-0108A

WASHER,LOCK,8.

€ 2.50

43

0831011085
ref: 43
08310-0008A

NUT

€ 1.50

44-1

3491010A01
ref: 44-1
34910-08A00

CABLE ASSEMBLY,SPEEDOMETER

€ 26.50

44-2

3491033400
ref: 44-2

CABLE ASSY,SPEEDOMETER

€ 28.50

45

3493845100
ref: 45

CLAMP,SPEEDOMETER CABLE

€ 14.50

46

0110706168
ref: 46
01500-06167

BOLT, UPPER

€ 3.00

47

0832221067
ref: 47
08322-01067

WASHER

€ 2.00

48

3493800A10
ref: 48

GUIDE,METER CABLE

€ 4.00
