HANDLEBAR (GS1150ES3/ESE/ESF)
GS1150EF 1985 (F) USA (E03)

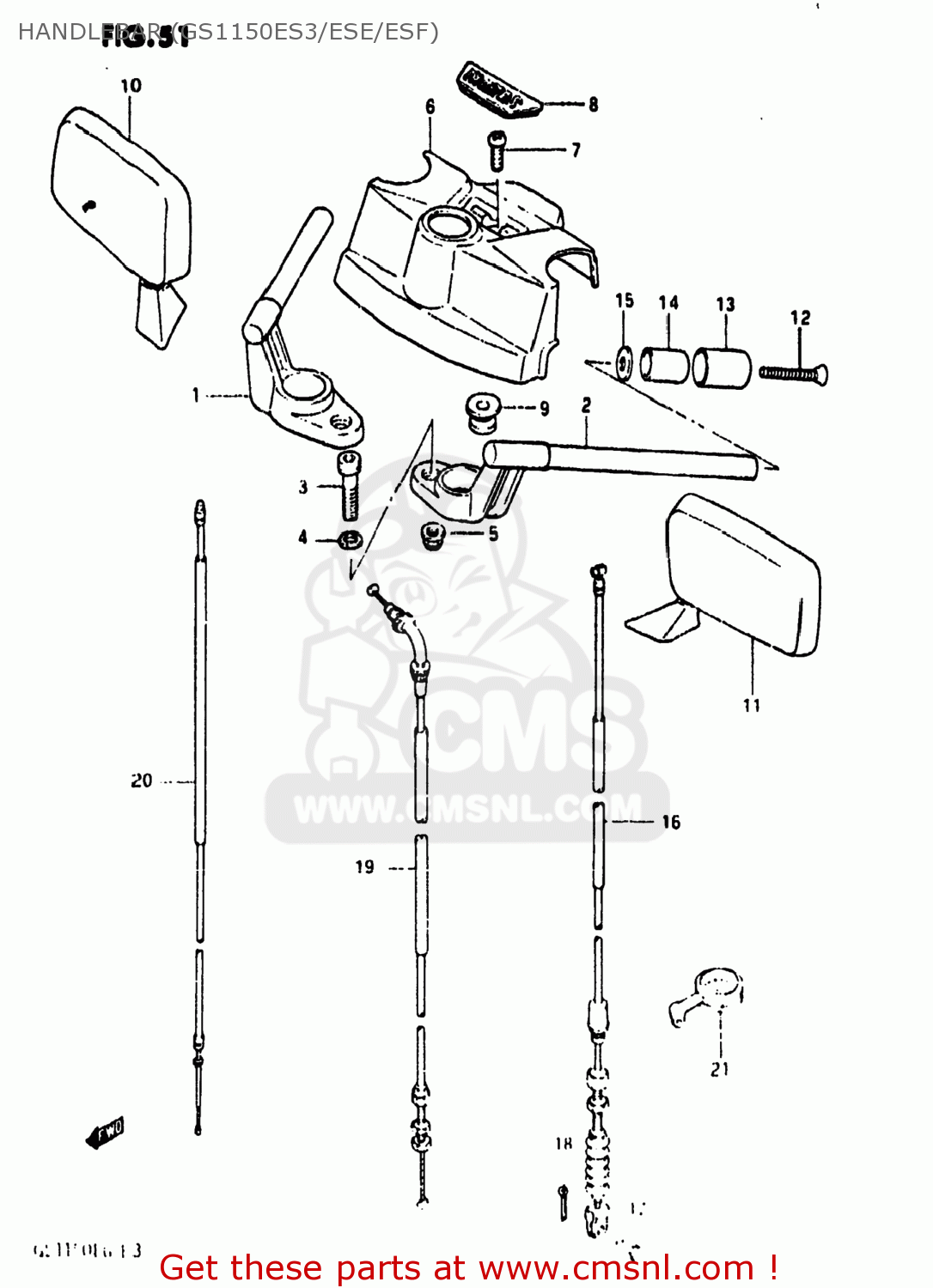

Handlebar (gs1150es3/ese/esf) diagram GS1150EF 1985 (F) USA (E03)
HANDLEBAR (GS1150ES3/ESE/ESF) GS1150EF 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611100A31
ref: 1
HANDLEBAR,RIGHT
€ 263.50
2
5615100A31
ref: 2
HANDLEBAR,LEFT
€ 180.00
3
0910610023
ref: 3
BOLT(10X50)
€ 6.00
4
0916410005
ref: 4
09164-10010
WASHER
€ 6.50
5
0831931105
ref: 5
08319-3110A
NUT 10MM
€ 3.00
6
5617000A10
ref: 6
PAD,HANDLE
€ 16.00
7
0211206168
ref: 7
02112-06167
SCREW
€ 2.50
8
5617400A00
ref: 8
CAP,HANDLE PAD
€ 8.00
9
3495631001
ref: 9
CUSHION,METER BRACKET
€ 4.50
10
5650000A50
ref: 10
MIRROR ASSEMBLY,RIGHT
€ 104.50
11
5660000A50
ref: 11
MIRROR ASSEMBLY,LEFT
€ 46.50
12-1
0213206655
ref: 12-1
02122-0665B
SCREW 6X65
€ 2.50
12-2
0213206505
ref: 12-2
02122-0650B
SCREW
€ 3.00
13-1
5627400A10
ref: 13-1
56274-00A11
CAP,BALANCER
€ 6.00
13-2
5627405350
ref: 13-2
56274-31300
CAP,BALANCER
€ 223.50
14-1
5627100A00
ref: 14-1
BALANCER,HANDLEBAR
€ 19.50
14-2
5627149400
ref: 14-2
BALANCER,HANDLE
€ 19.50
15
5627534400
ref: 15
56275-34401
SPACER,BALANCER
€ 2.50
16
5820000A20
ref: 16
CABLE ASSY,CLUTCH
€ 42.00
17
0920006011
ref: 17
PIN(L:15)
€ 2.50
18
0411120158
ref: 18
04111-2015A
PIN
€ 1.50
19
5830000A20
ref: 19
58300-00A00
CABLE ASSEMBLY,THROTTLE
€ 25.00
20
5841000A20
ref: 20
58410-00X02
CABLE COMP,STARTER
€ 9.00
21
9620041330
ref: 21
GAUGE ASSY,AIR PRESSURE
€ 77.50
