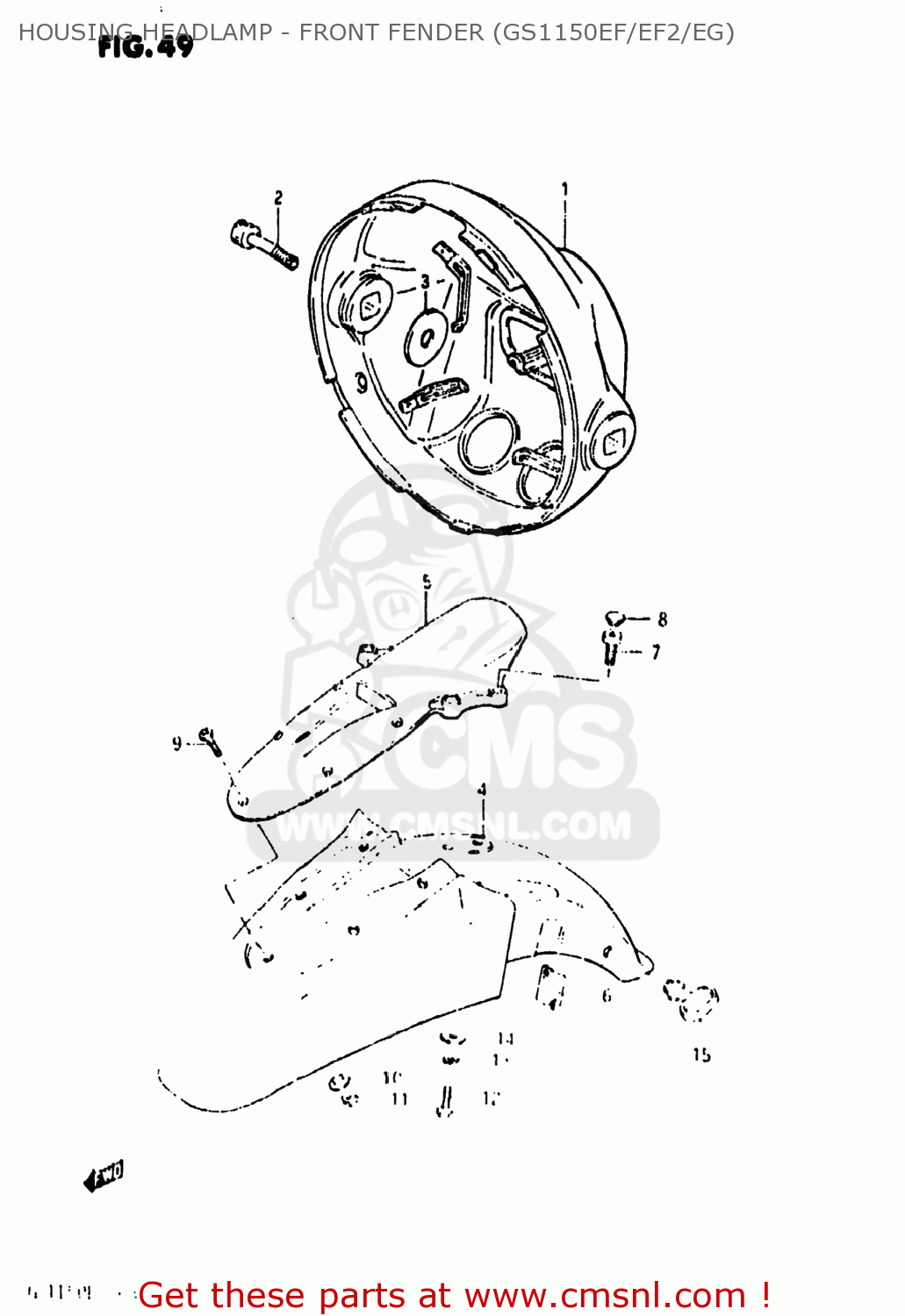

HOUSING HEADLAMP - FRONT FENDER (GS1150EF/EF2/EG)

GS1150EF 1985 (F) USA (E03)

Housing headlamp - front fender (gs1150ef/ef2/eg) diagram GS1150EF 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity

5181045900019
ref: 1

HOUSING,HEADLAMP(BLACK)

€ 139.00

0711008307
ref: 2
07130-08307

BOLT, LH

€ 4.50

0916008002
ref: 3
09160-08135

WASHER (8.5X29X1.6)

€ 2.00

4-1

5311100A00019
ref: 4-1
53111-00A20-13L

FENDER,FRONT

€ 137.50

4-2

5311100A0012F
ref: 4-2
53111-00A20-13L

FENDER,FRONT

€ 137.50

4-3

5311100A0022R
ref: 4-3
53111-00A20-13L

FENDER,FRONT

€ 137.50

4-4

5311100A0022P
ref: 4-4
53111-00A20-13L

FENDER,FRONT

€ 137.50

5311400A00
ref: 5

BRACE,FR FENDER CTR

€ 87.00

5343100A00
ref: 6
61374-08010

CUSHION

€ 4.00

0711008165
ref: 7
07130-0816A

BOLT

€ 3.00

0925006004
ref: 8

CAP(OD:14.5)

€ 1.50

0213205164
ref: 9
02122-0516B

SCREW, CENTER

€ 2.00

0916905011
ref: 10
09169-05024

WASHER

€ 2.00

0831921055
ref: 11
08319-2105A

NUT 8MM

€ 1.50

0110706168
ref: 12
01500-06167

BOLT, UPPER

€ 3.00

0832121068
ref: 13
08321-01067

LOCK WASHER

€ 2.50

0916006007
ref: 14
09160-06084

WASHER

€ 2.00

5862121203
ref: 15
58621-21204

GUIDE,CABLE

€ 7.50
