TAIL LAMP - LICENSE LAMP
GS1150EF 1985 (F) USA (E03)

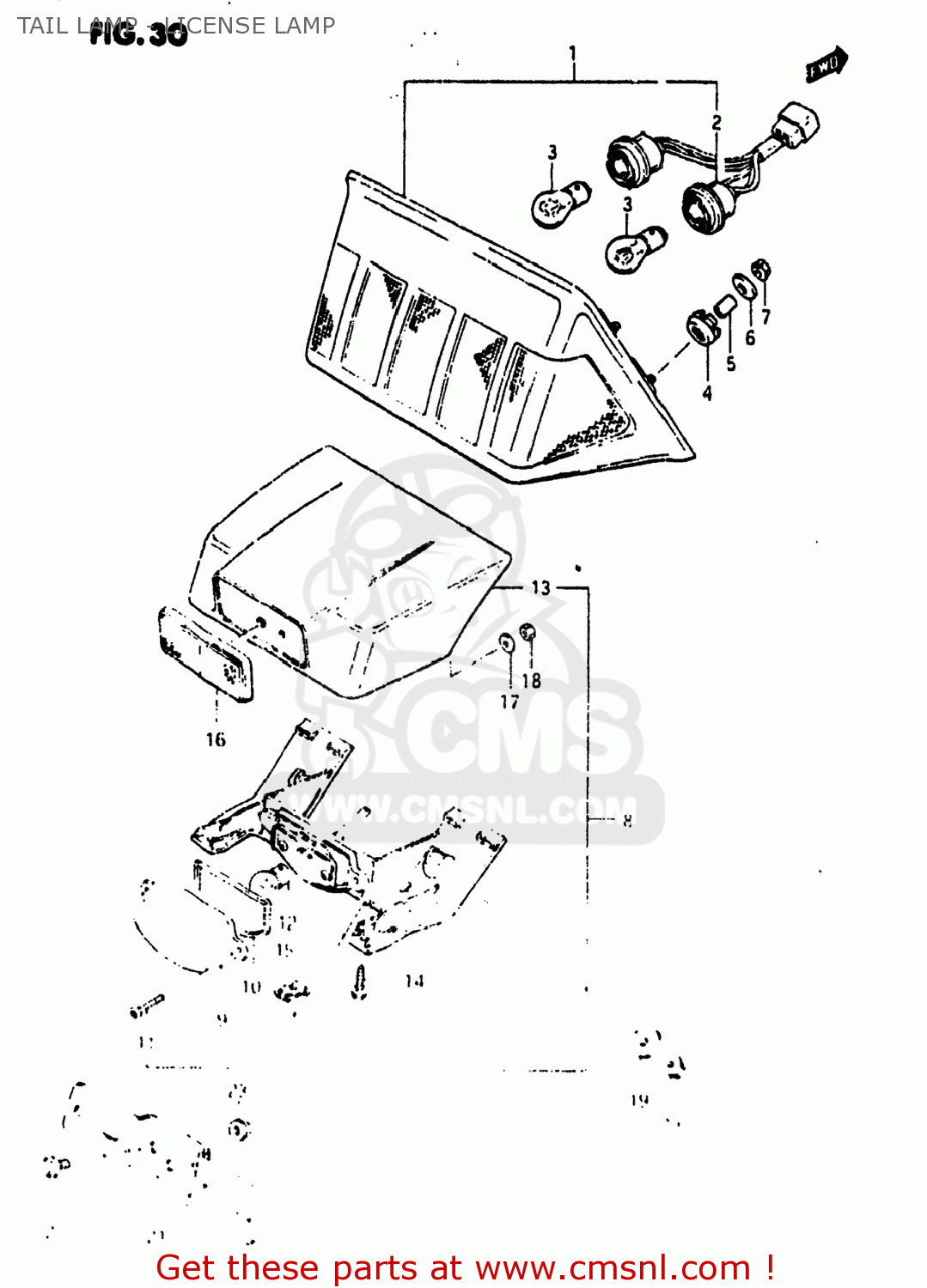

Tail lamp - license lamp diagram GS1150EF 1985 (F) USA (E03)
TAIL LAMP - LICENSE LAMP GS1150EF 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571000A30
ref: 1
LAMP ASSEMBLY,REAR COMBINATION
€ 92.50
2
3571800A10
ref: 2
SOCKET,REAR COMBINATION LAMP
€ 0.00
3
0947112084
ref: 3
BULB(12V23/8W,TOKAI DENSO)
€ 6.00
4
0932009015
ref: 4
CUSHION
€ 2.50
5
0918006062
ref: 5
09180-06268
SPACER (6.4X9X13.5)
€ 2.00
6
0916006060
ref: 6
09160-06077
WASHER
€ 2.00
7
0831626066
ref: 7
08316-1006B
NUT
€ 2.00
8
3591000A10
ref: 8
LAMP ASSEMBLY,LICENSE
€ 0.00
9
3591200A10
ref: 9
LENS,LICENSE LAMP
€ 16.00
10
3591304A00
ref: 10
GASKET,LICESE LAMP (NAS)
€ 4.00
11
0321104208
ref: 11
03211-04207
SCREW
€ 1.50
12
0947112037
ref: 12
09471-12141
BULB
€ 7.00
13
3591700A10
ref: 13
COVER,LICENSE LAMP
€ 15.00
14
0315104165
ref: 14
03141-0416A
SCREW
€ 2.00
15
3565716700
ref: 15
COVER,TURN,RIGHT
€ 2.00
16
3597000A00
ref: 16
35970-00A10
REFLEX REFLECTOR,REAR
€ 22.00
17
0916005013
ref: 17
WASHER(5.2X16X1)
€ 1.50
18
0831011056
ref: 18
08310-0005A
NUT
€ 2.50
19
0916006060
ref: 19
09160-06077
WASHER
€ 2.00
20
0831626066
ref: 20
08316-1006B
NUT
€ 2.00
21
3592700A30
ref: 21
BRACKET,LICENSE PLATE
€ 8.00
22
0151706164
ref: 22
01550-0616A
BOLT
€ 2.50
23
0831626066
ref: 23
08316-1006B
NUT
€ 2.00
