CRANKSHAFT
GS1150EF2 1986 (G) USA (E03)

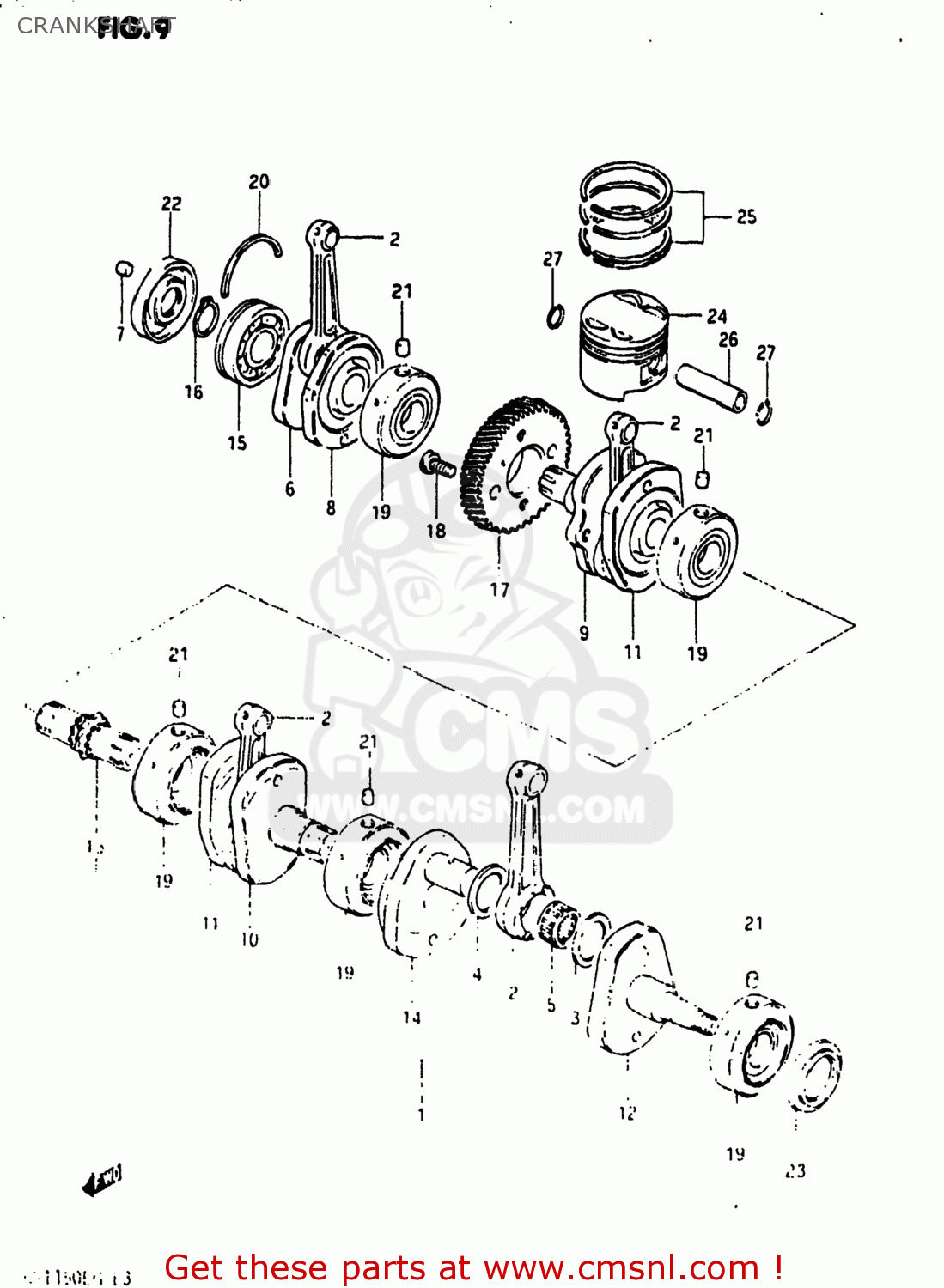

Crankshaft diagram GS1150EF2 1986 (G) USA (E03)
CRANKSHAFT GS1150EF2 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1220000A07
ref: 1
12200-00A08
CRANKSHAFT ASSEMBLY
€ 2,190.50
2
1216100A03
ref: 2
ROD,CONNECTING
€ 127.00
3
0916031002
ref: 3
WASHER(31X48.5X1)
€ 7.00
4
0916031003
ref: 4
WASHER(31X48.5X2)
€ 11.50
5
0926331004
ref: 5
BEARING(31X39X21)
€ 53.00
6
1222049202
ref: 6
CRANKSHAFT,RIGHT
€ 153.00
7
0422104089
ref: 7
PIN
€ 1.50
8
1223049201
ref: 8
12230-49202
WEB,CRANK
€ 218.00
9
1224149202
ref: 9
12241-49203
CRANKSHAFT
€ 153.00
10
1227149202
ref: 10
12271-49203
CRANKSHAFT,MIDDLE,LEFT
€ 89.50
11
1225049201
ref: 11
12250-49202
WEB,CRANK,MIDDLE
€ 153.00
12
1226149601
ref: 12
CRANKSHAFT,LH
€ 211.50
13
1228149200
ref: 13
SHAFT,TIMING CHAIN DRIVE
€ 93.50
14
1229049201
ref: 14
12290-49202
WEB,CRANK,LEFT
€ 228.50
15
0926230033
ref: 15
BEARING(30X72X19)
€ 47.00
16
0833111308
ref: 16
08331-3130A
CIRCLIP,30MM
€ 3.00
17
2111100A00
ref: 17
21111-00A02
GEAR,PRIMARY DRIVE
€ 105.00
18
0910608043
ref: 18
07130-0816A
BOLT
€ 3.00
19
0926432009
ref: 19
BEARING(32X72X21)
€ 138.00
20
0939072004
ref: 20
C RING
€ 3.00
21
0422107129
ref: 21
PIN
€ 1.50
22
0928330021
ref: 22
SEAL,OIL(30X72X11)
€ 22.00
23
0928948002
ref: 23
SEAL,OIL(47.3X60X6.5)
€ 12.00
24-1
1211100A07
ref: 24-1
PISTON (74.00MM)
€ 91.00
24-2
1211100A07050
ref: 24-2
12103-00820-050
PISTON (OS:0.5)
€ 173.00
24-3
1211100A07100
ref: 24-3
PISTON (OS:1.0)
€ 157.00
25-1
1214000A24
ref: 25-1
RING SET,PISTON
€ 69.00
25-2
1214000A24050
ref: 25-2
RING SET,PISTON (OS:0.5)
€ 41.50
25-3
1214000A24100
ref: 25-3
RING SET,PISTON
€ 19.00
26
1215100A10
ref: 26
12151-05A00
PIN,PISTON
€ 12.00
27
0938120004
ref: 27
CIRCLIP,PISTON PIN
€ 2.00
