LEFT HANDLE SWITCH (GS1150ES3/ESE/ESF)

GS1150EF2 1986 (G) USA (E03)

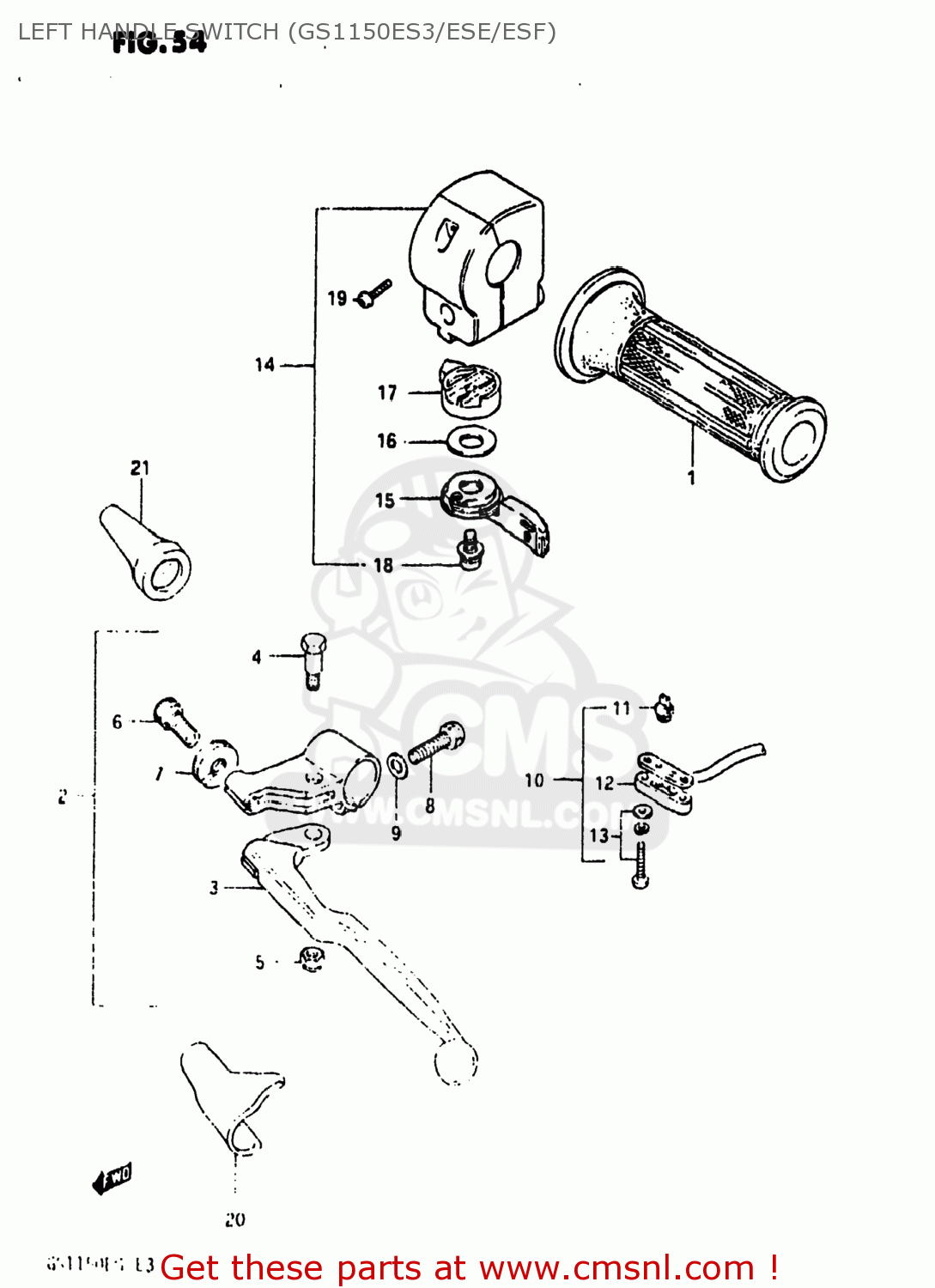

Left handle switch (gs1150es3/ese/esf) diagram GS1150EF2 1986 (G) USA (E03)

LEFT HANDLE SWITCH (GS1150ES3/ESE/ESF) GS1150EF2 1986 (G) USA (E03)

LEFT HANDLE SWITCH (GS1150ES3/ESE/ESF) GS1150EF2 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5721149500
ref: 1

GRIP,L

€ 9.00

2

5750000A00
ref: 2

LEVER/SWITCH ASSEMBLY,CLUTCH

€ 20.00

3

5762049111
ref: 3

LEVER,CLUTCH

€ 34.00

4

5743149110
ref: 4

BOLT,LEVER PIVOT

€ 5.00

5

0831921065
ref: 5
08319-2106B

NUT

€ 2.50

6

5744144400
ref: 6

ADJUSTER,CABLE

€ 5.50

7

5744244400
ref: 7
57442-11010

NUT,CABLE ADJUSTER LOCK

€ 4.00

8

0120406204
ref: 8

BOLT

€ 2.00

9

0832221064
ref: 9
08322-0106B

WASHER

€ 2.00

10

5756008A00
ref: 10
57560-18D10

SWITCH ASSEMBLY,CLUTCH

€ 20.50

11

5746518601
ref: 11

CONTACT,SWITCH

€ 4.50

12

5748133010
ref: 12

COVER,FR BK TERMINAL BASE

€ 19.50

13

0912503105
ref: 13
09125-03105-XC0

SCREW

€ 2.50

14

3740049573
ref: 14
37400-45373

SWITCH ASSEMBLY,HANDLE,LEFT

€ 154.00

15

5872127503
ref: 15

LEVER,STARTER

€ 8.00

16

5872203010
ref: 16

WASHER,ADJUSTER

€ 3.00

17

3757249441
ref: 17

BODY,STARTER LEVER

€ 15.50

18

3757449440
ref: 18
02112-7516A

SCREW,CHOKE LE

€ 2.50

19

0211205165
ref: 19
02112-05164

SCREW

€ 2.00

20

5766131000
ref: 20

COVER,CLUTCH LEVER

€ 5.50

21

5827331000
ref: 21

BOOT,CLUTCH CABLE

€ 2.50
