GS1150EF2 1986 (G) USA (E03)

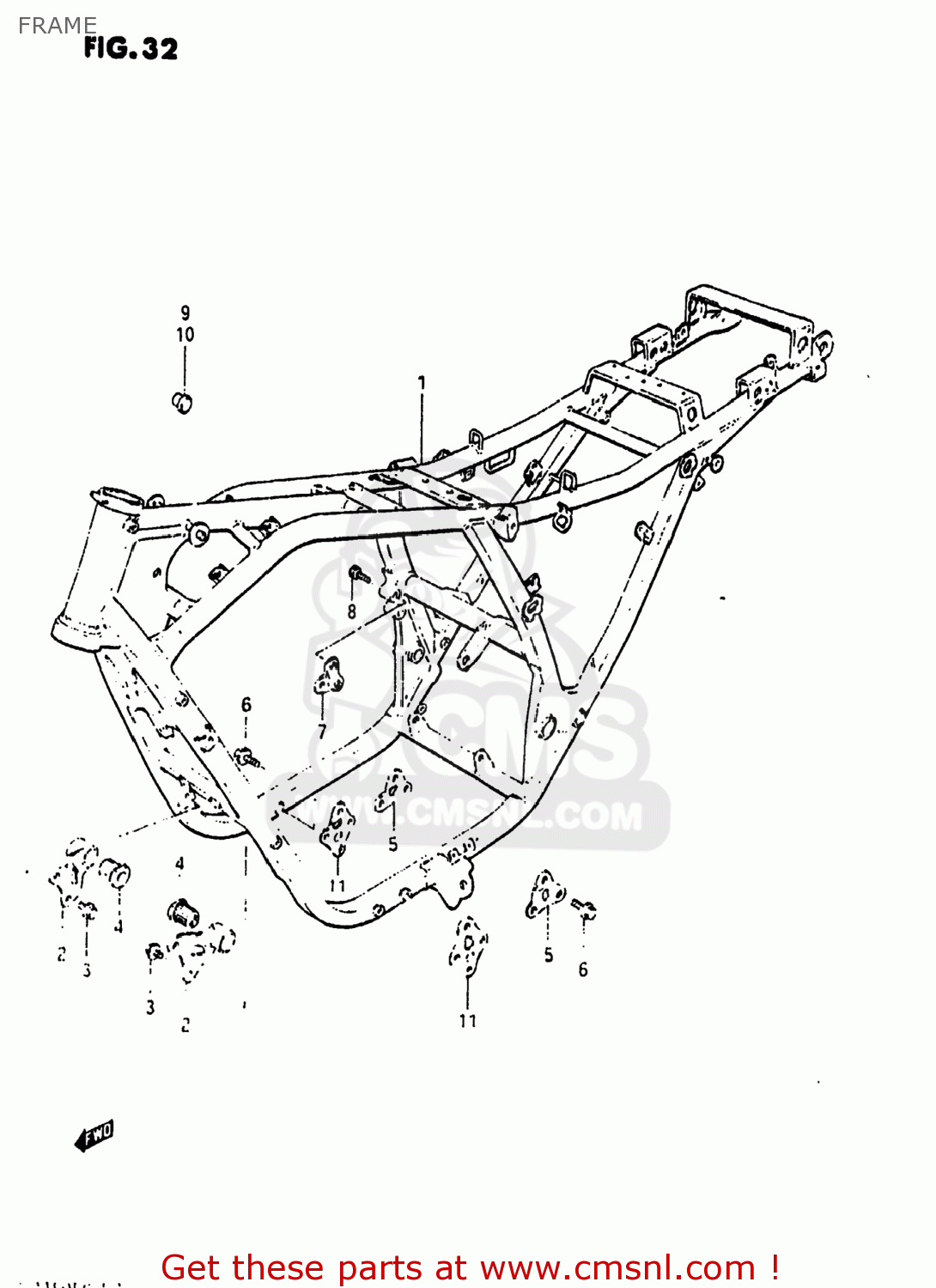

Frame diagram GS1150EF2 1986 (G) USA (E03)
FRAME GS1150EF2 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110000A0113L
ref: 1-1
41100-00A02-13L
FRAME
€ 1,677.50
1-2
4110000A0213L
ref: 1-2
FRAME
€ 1,677.50
2-1
4191000A0015T
ref: 2-1
41910-00A01-15T
PLATE COMP,ENGINE MOUNTING
€ 18.00
2-2
4191000A0115T
ref: 2-2
PLATE,ENGINE MOUNTING NO
€ 18.00
3-1
0151708128
ref: 3-1
01550-08127
BOLT 8X12
€ 3.50
3-2
0151708125
ref: 3-2
01550-0812A
BOLT
€ 3.50
4
0931910042
ref: 4
BUSH
€ 16.50
5-1
4192100A0013L
ref: 5-1
41921-00A01-13L
PLATE,ENGINE MOUNTING
€ 8.00
5-2
4192100A0113L
ref: 5-2
PLATE,ENGINE MOUNTING NO
€ 8.00
6-1
0151708128
ref: 6-1
01550-08127
BOLT 8X12
€ 3.50
6-2
0151708125
ref: 6-2
01550-0812A
BOLT
€ 3.50
7-1
4194000A0015T
ref: 7-1
41940-00A01-15T
PLATE,ENGINE MOUNTING
€ 0.00
7-2
4194000A0115T
ref: 7-2
PLATE,ENGINE MOUNTING NO
€ 0.00
8-1
0711008258
ref: 8-1
07130-08257
BOLT
€ 3.50
8-2
0711008255
ref: 8-2
07130-0825B
BOLT
€ 3.50
9
0925006008
ref: 9
CAP(OD:10)
€ 3.00
10
0925006007
ref: 10
09250-06005
PLUG
€ 2.00
11
4192000A1113L
ref: 11
PLATE,ENGINE MOUNTING NO
€ 11.50
