FRAME COVER (GS1150ES3/ESE/ESF)

GS1150EG 1985 (F) USA (E03)

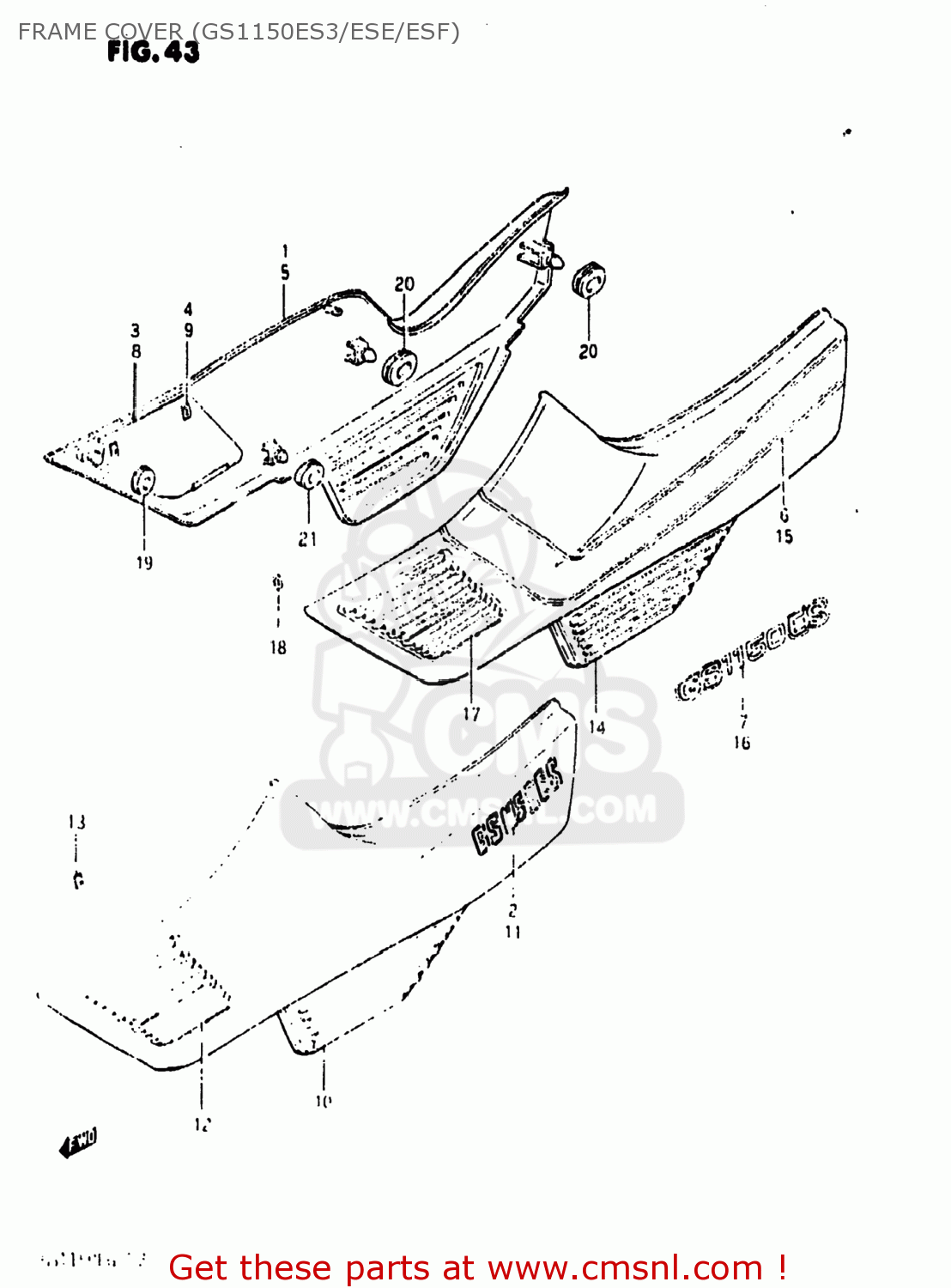

Frame cover (gs1150es3/ese/esf) diagram GS1150EG 1985 (F) USA (E03)

FRAME COVER (GS1150ES3/ESE/ESF) GS1150EG 1985 (F) USA (E03)
FRAME COVER (GS1150ES3/ESE/ESF) GS1150EG 1985 (F) USA (E03)
FRAME COVER (GS1150ES3/ESE/ESF) GS1150EG 1985 (F) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4710000A3017R
ref: 1-1
47110-00A00
COVER,FRAME,RIGHT
€ 189.50
1-2
4710000A3004Y
ref: 1-2
47110-00A00
COVER,FRAME,RIGHT
€ 189.50
2-1
6813100A1060K
ref: 2-1
EMBLEM
€ 12.50
2-2
6813100A1071L
ref: 2-2
EMBLEM
€ 11.50
3
4711200A00019
ref: 3
47112-00A00
COVER,FRAME,RIGHT
€ 22.50
4
0914803002
ref: 4
NUT
0914803002
€ 3.00
5-1
4760000A007JH
ref: 5-1
47110-00A00
COVER ASSEMBLY,FRAME BODY
€ 189.50
5-2
4760000A007JJ
ref: 5-2
47110-00A00
COVER ASSEMBLY,FRAME BODY
€ 189.50
6-1
6813000A207JF
ref: 6-1
TAPE SET,FRAME COVER
€ 0.00
6-2
6813000A207JG
ref: 6-2
TAPE SET,FRAME COVER
€ 0.00
7-1
6813100A307JH
ref: 7-1
EMBLEM
€ 0.00
7-2
6813100A307JJ
ref: 7-2
EMBLEM
€ 0.00
8-1
4711200A0012F
ref: 8-1
47112-00A00
COVER,FRAME,RIGHT
€ 22.50
8-2
4711200A0022P
ref: 8-2
COVER,FRAME,RIGHT NO.1
€ 0.00
9
0914803002
ref: 9
NUT
0914803002
€ 3.00
10-1
4720000A3017R
ref: 10-1
47210-00A00
COVER ASSEMBLY,FRAME,LEFT
€ 189.50
10-2
4720000A3004Y
ref: 10-2
47210-00A00
COVER ASSEMBLY,FRAME,LEFT
€ 189.50
11-1
6813100A1060K
ref: 11-1
EMBLEM
€ 12.50
11-2
6813100A1071L
ref: 11-2
EMBLEM
€ 11.50
12
4721200A00019
ref: 12
47212-00A00
COVER,FRAME,RIGHT NO.1
4721200A00019
€ 21.00
13
0914803002
ref: 13
NUT
0914803002
€ 3.00
14-1
4770000A007JH
ref: 14-1
47210-00A00
COVER, FRAME LH
€ 189.50
14-2
4770000A007JJ
ref: 14-2
47210-00A00
COVER, FRAME LH
€ 189.50
15-1
6814000A207JF
ref: 15-1
TAPE,FRAME COVER
€ 0.00
15-2
6814000A207JG
ref: 15-2
TAPE SET,FRAME COVER,LEFT
€ 0.00
16-1
6813100A307JH
ref: 16-1
EMBLEM
€ 0.00
16-2
6813100A307JJ
ref: 16-2
EMBLEM
€ 0.00
17-1
4721200A0012F
ref: 17-1
47212-00A00
COVER,FRAME,RIGHT NO.1
€ 21.00
17-2
4721200A0022P
ref: 17-2
47212-00A00
COVER,FRAME,RIGHT NO.1
€ 21.00
18
0914803002
ref: 18
NUT
0914803002
€ 3.00
19
0932008018
ref: 19
CUSHION
0932008018
€ 4.00
20
0932908003
ref: 20
CUSHION
0932908003
€ 3.50
21
0932007007
ref: 21
CUSHION
0932007007
€ 3.00
