Buy Suzuki GS Parts Online
home
HANDLEBAR (GS1150EF/EF2/EG)
GS1150EG 1985 (F) USA (E03)

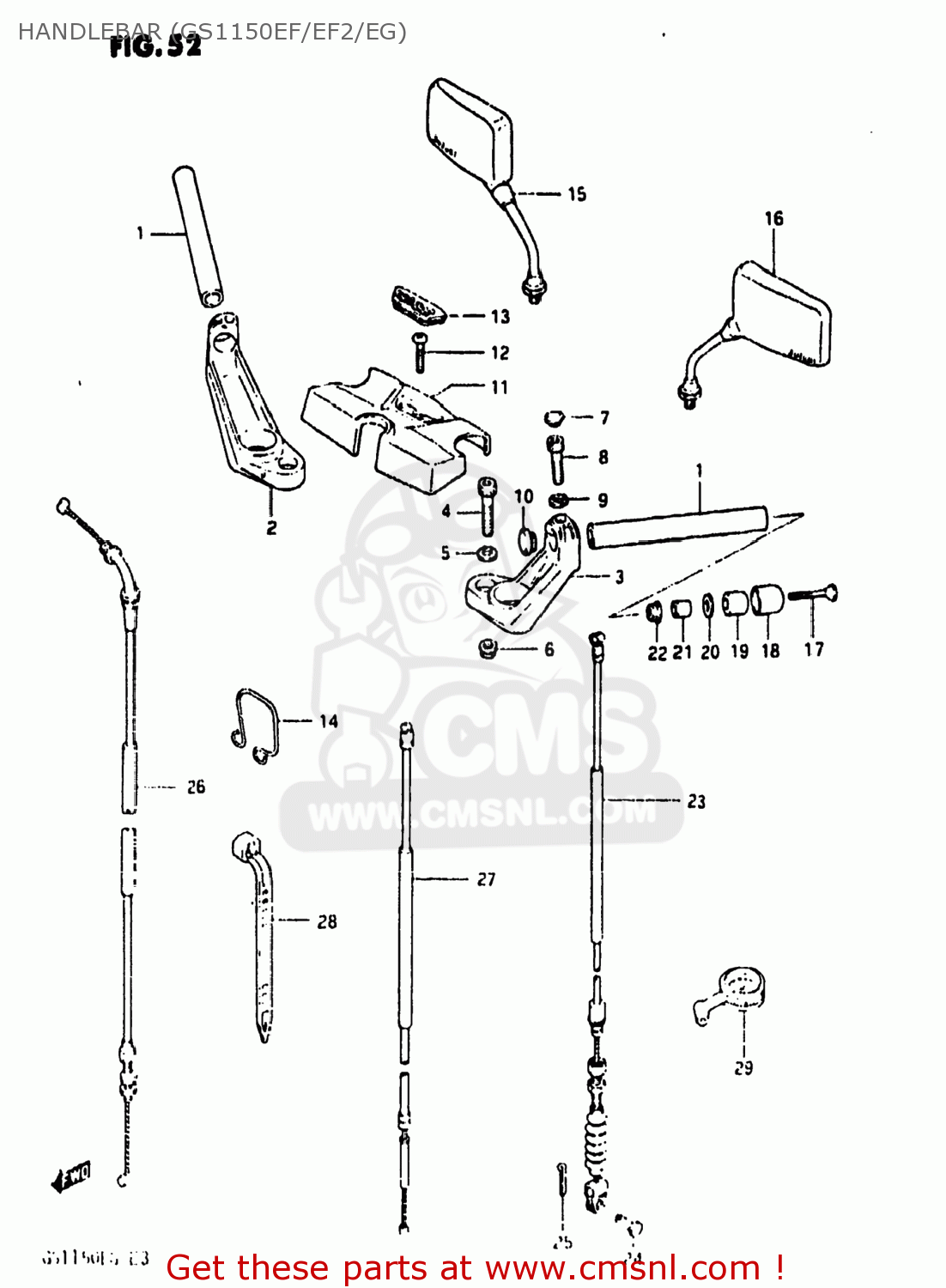

Handlebar (gs1150ef/ef2/eg) diagram GS1150EG 1985 (F) USA (E03)
HANDLEBAR (GS1150EF/EF2/EG) GS1150EG 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611100A00
ref: 1
HANDLEBAR,RIGHT
€ 21.00
2
5621100A20
ref: 2
HOLDER,HANDLEBAR,RIGHT
€ 202.00
3
5622100A20
ref: 3
HOLDER,HANDLEBAR,LEFT
€ 208.50
4
0910610023
ref: 4
BOLT(10X50)
€ 6.00
5
0916410005
ref: 5
09164-10010
WASHER
€ 6.50
6
0831931105
ref: 6
08319-3110A
NUT 10MM
€ 3.00
7
0925006004
ref: 7
CAP(OD:14.5)
€ 1.50
8
0711008355
ref: 8
07130-0835B
BOLT 8X35
€ 4.00
9
0916408015
ref: 9
WASHER
€ 3.00
10
5721543401
ref: 10
57215-33400
CAP,GRIP END
€ 4.00
11
5617000A00
ref: 11
PAD,HANDLE
€ 18.00
12
0211206168
ref: 12
02112-06167
SCREW
€ 2.50
13
5617400A00
ref: 13
CAP,HANDLE PAD
€ 8.00
14
5862131310
ref: 14
GUIDE,CABLE/HARNESS
€ 0.00
15
5650045401
ref: 15
56500-43451
MIRROR ASSEMBLY,REAR VIEW
€ 48.50
16
5660045401
ref: 16
56600-43451
MIRROR ASSEMBLY,REAR VIEW
€ 47.00
17
0213206555
ref: 17
02122-0655B
SCREW 6X55
€ 2.00
18
5627404700
ref: 18
CAP,BALANCER
€ 96.00
19
5627149410
ref: 19
BALANCER,HANDLEBAR
€ 14.50
20
5627534400
ref: 20
56275-34401
SPACER,BALANCER
€ 2.50
21
5627244500
ref: 21
EXPANDER,HANDLE BALANCER
€ 3.00
22
0915906024
ref: 22
NUT
€ 2.00
23
5820000A10
ref: 23
CABLE ASSY,CLUTCH
€ 33.50
24
0920006011
ref: 24
PIN(L:15)
€ 2.50
25
0411120158
ref: 25
04111-2015A
PIN
€ 1.50
26
5830000A10
ref: 26
CABLE ASSY,THROTTLE
€ 23.50
27
5841000A10
ref: 27
58410-00X01
CABLE COMP,STARTER
€ 6.50
28
0940718402
ref: 28
CLAMP(L:165)
€ 2.50
29
9620041330
ref: 29
GAUGE ASSY,AIR PRESSURE
€ 77.50
